6. STANDARD ADJUSTMENT (MECHANISMS)

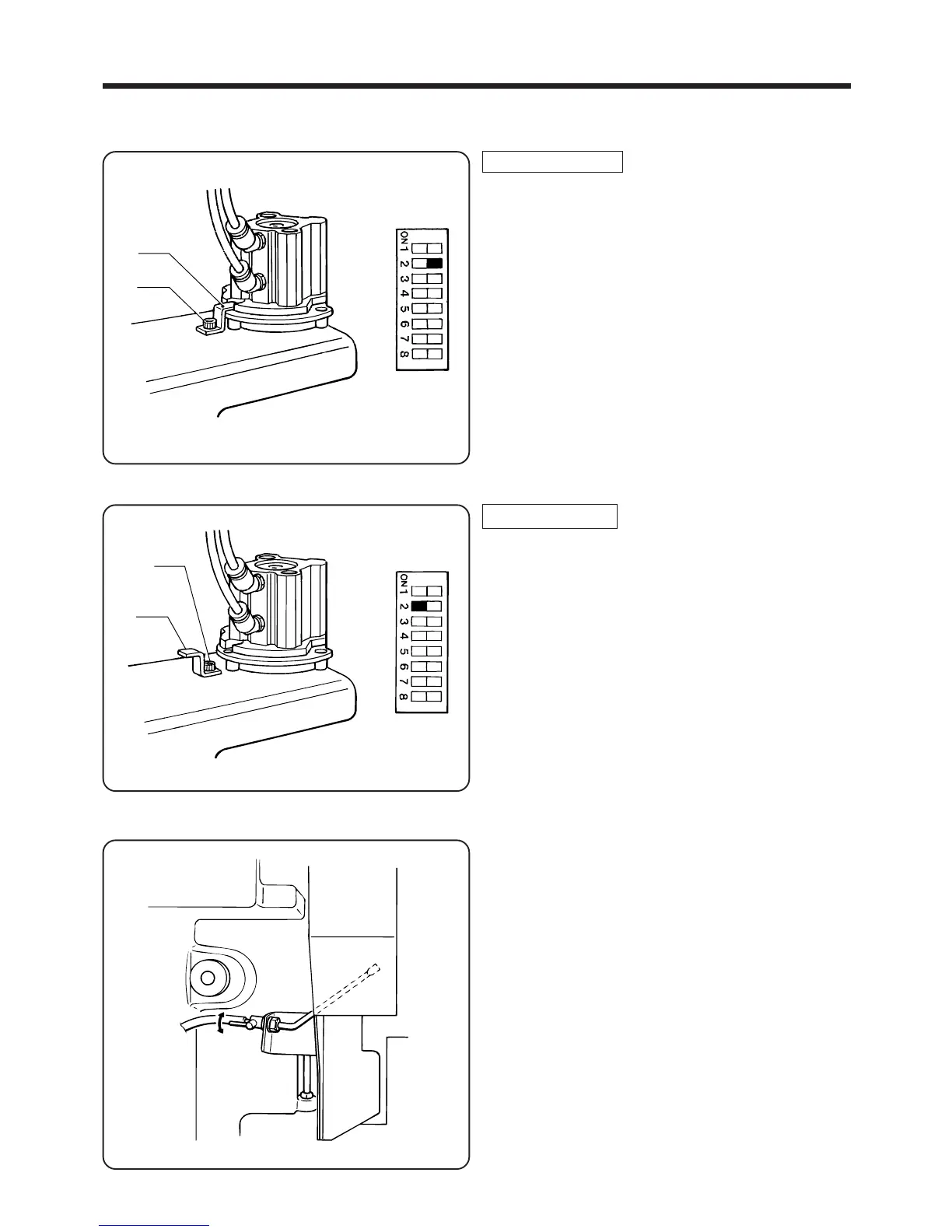

6-7. Changing the loop cutting shape (V cut or flat cut)
Changing to V cut
1. Remove the bolt q, remove the knife stopper w,
and then change the direction of the knife stopper
w as shown in the illustration at left. Then install it
again and tighten the bolt q.
2. Set panel DIP switch No. 1-2 to ON.
6-7-1. Adjusting the air pressure for cleaning away belt scraps (during V cutting)
* Adjust the air pressure using the air adjusting lever.
If it is parallel to the air tubes, the air pressure will be
greatest, and if it is turned either way from this posi-
tion, the air pressure will become less.
* Make the air pressure strong enough so that the belt
loop joints are disposed of properly.
NOTE: Be sure to turn off the power switch and release the air before carrying out this operation.
Changing to flat cut
1. Remove the bolt q, remove the knife stopper w,
and then change the direction of the knife stopper
w as shown in the illustration at left. Then install it
again and tighten the bolt q.
2. Set panel DIP switch No. 1-2 to OFF.
―64―
BAS-705
No 1
w
q
No 1
w
q
