5. STANDARD ADJUSTMENT (MACHINE HEAD)

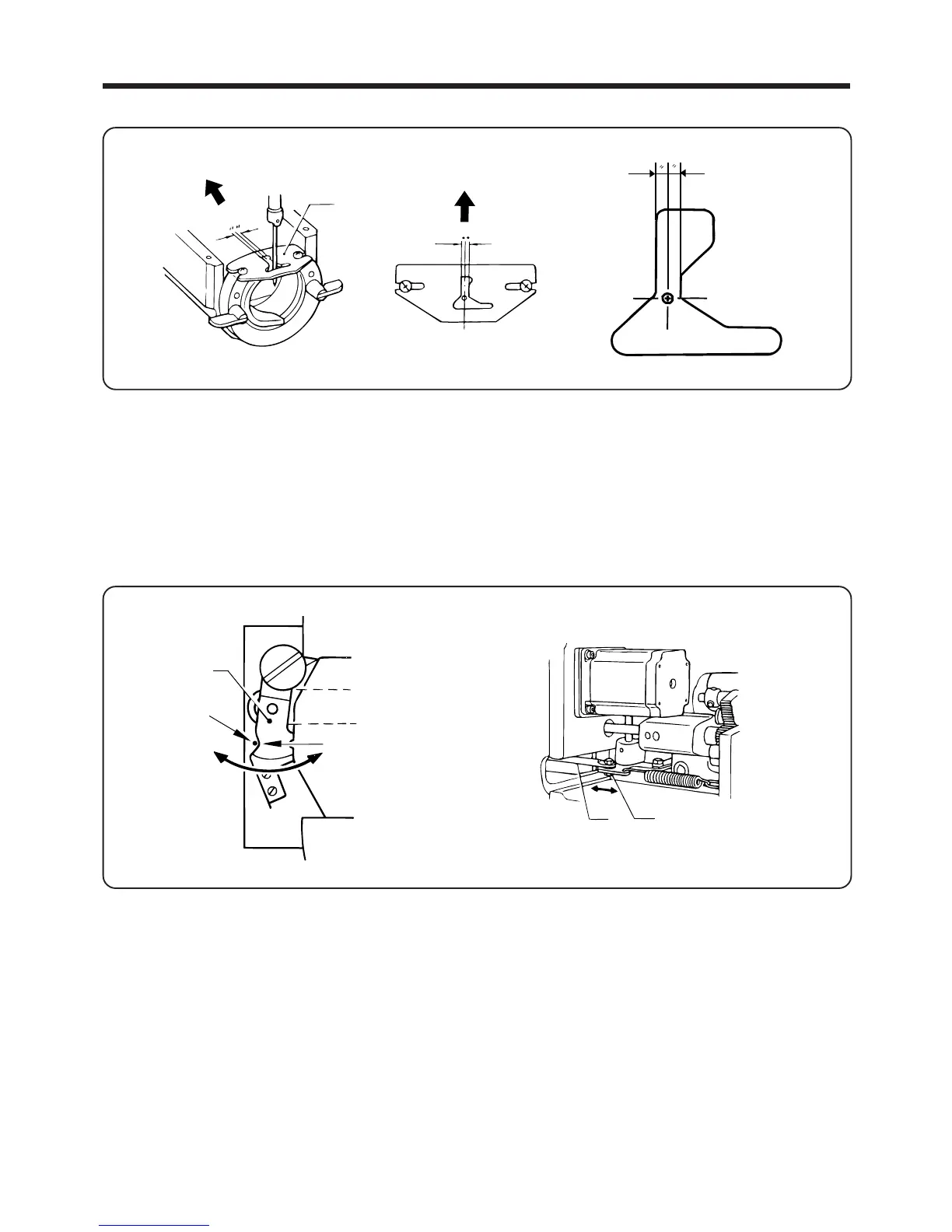

5-6. Adjusting the shuttle hook thread guide
Install the shuttle race thread guide q by pushing it in the direction of the arrow so that the needle groove is
aligned with the center of the needle plate hole.
NOTE: If the shuttle race thread guide is in the wrong position, thread breakages, soiled thread or catching of
the thread may occur.
5-7. Adjusting the movable knife
5-7-1. First bar tacking
1. Tilt back the machine head. (Refer to "5-1. Tilting back the machine head.")
2. Loosen the nut w and move thread trimmer rod L e to the left or right to adjust so that the V section A of the
movable knife q is aligned with the index mark B on the needle plate when the machine is at the stop
position.
―40―
BAS-705
w
e
q
B
q
A
