Brother BAS-705 - Belt Loop Slackener (S43632-001)

11. OPTIONS
11-3. Belt loop slackener
......
(S43632-001)
●
When setting the belt loop, the appropriate belt flexion can be maintained.
<Passing through the belt loops>
7. Set the belt loops o into the belt slack device r, and then lower the guide lever !0.
8. Pass the belt loops o through from the cylinder !1 to the channel guide !2.

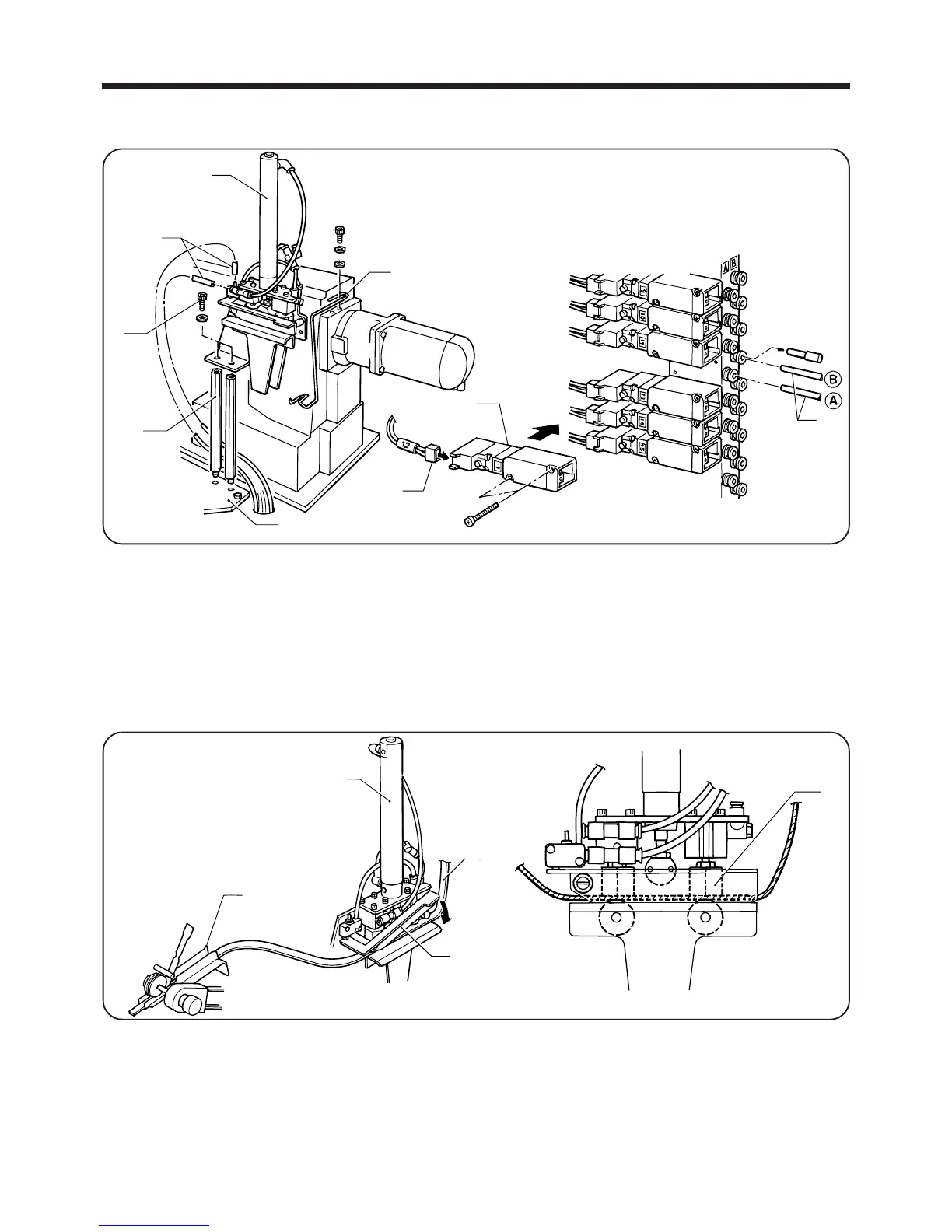

<Attachment>
1. Remove the two bolts, and then remove the loop guide q from the sewing machine.
2. Install the two posts e to the feeder base plate w.
3. Install the belt slack device r to the posts e with the two bolts t.
4. Connect the two air tubes.
5. Install the solenoid valve u with the two screws, and then connect the connector i.
6. Connect the air tubes y.
― 84 ―
BAS-705
r
o
!2
!0
!1
r
y
t
e
w
q
A
B
y
u
i
