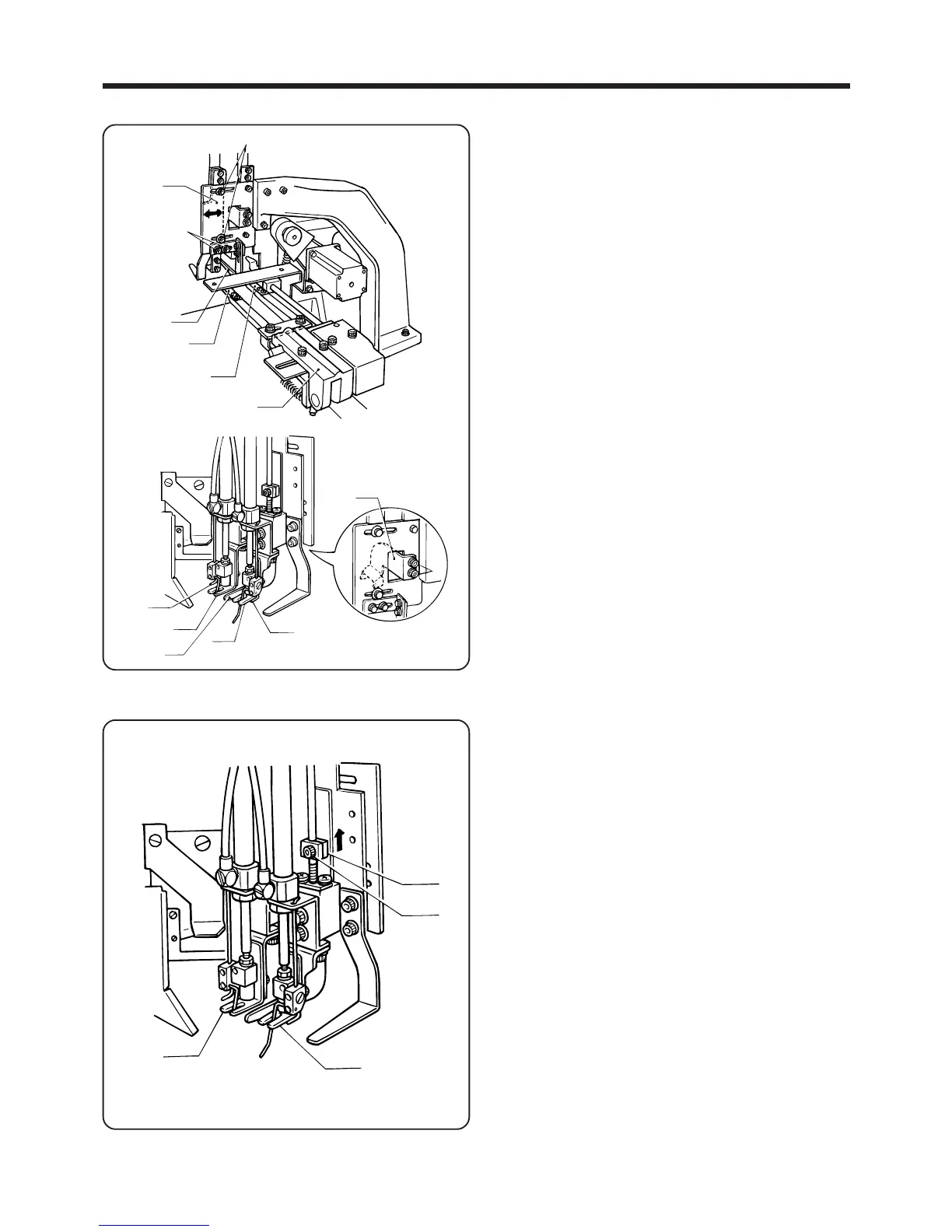

6. STANDARD ADJUSTMENT (MECHANISMS)
6-1-2. Adjusting slider base F
1. Loosen the two bolts q, move slider base F w so
that it is aligned with fork bracket F e, and then
tighten the bolts q.
NOTE:
●
Check that loosen loop presser plate B r and
loosen loop presser plate F t do not touch
loop presser UB y or loop presser UF u when
the air has been released and the fork bracket
is moved to about the middle of loop presser
F i and loop presser B o.
●
If the upper guide plate !0 gets in the way,
remove the two bolts !1 and then remove the
upper guide plate !0.
●
Refer to "6-1-5 Adjusting the upper guide
plates" on page 50 for details on the upper
guide plate.
2. Loosen the two bolts !1, move the loop hold plate
!2 in between loop presser F i and loop presser B
o, and then tighten the bolt !1.
1. Release the air, loosen the bolt q, and then move
the cylinder stopper w up by the amount of drop.
After adjusting, tighten the bolt q.
NOTE: Raise the slider bracket as high as possible
while ensuring that the belt loops do not go
under the loop pressers B e F r.
6-1-3. Adjusting the height of the slider bracket
―50―
