5. STANDARD ADJUSTMENT (MACHINE HEAD)

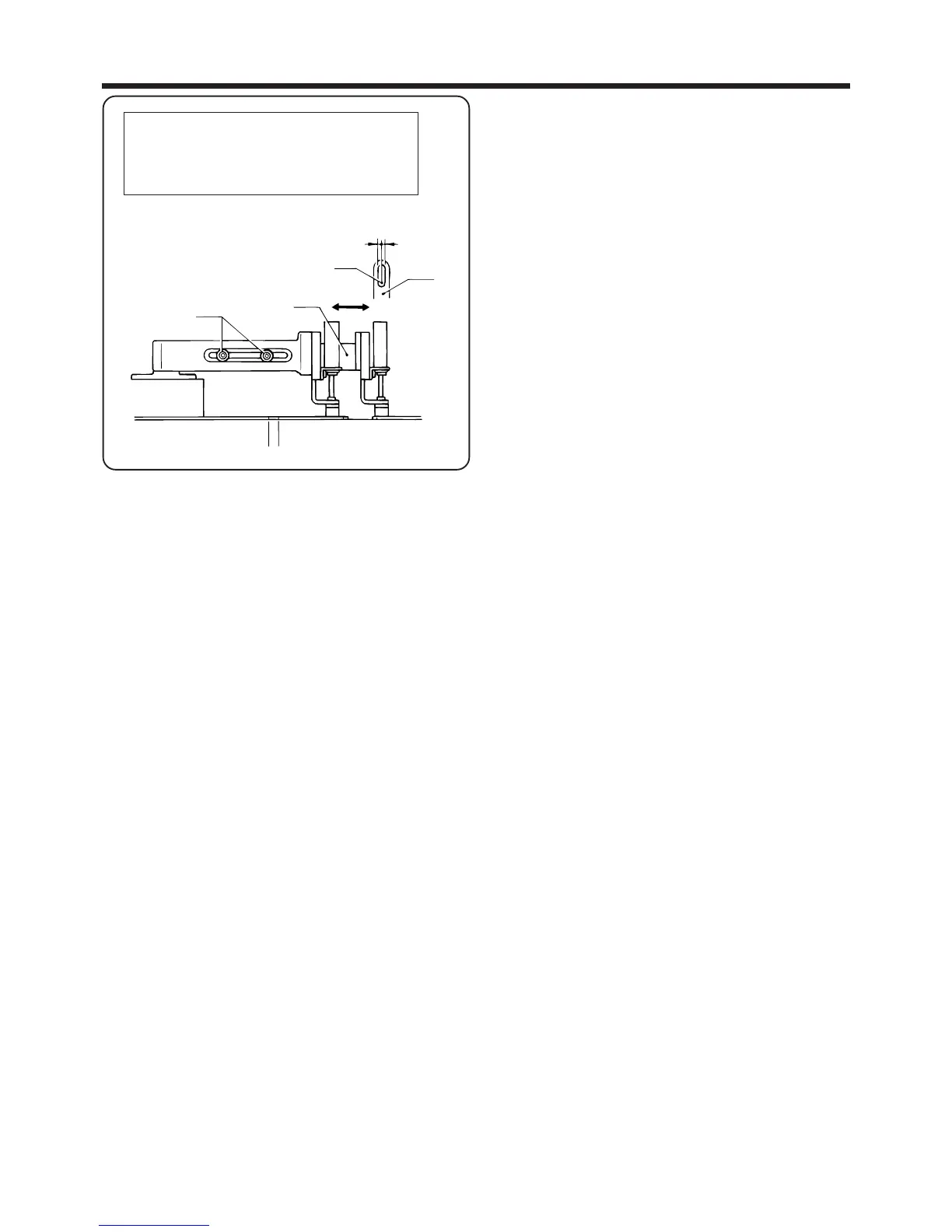

<Adjusting the presser foot>
11. Turn on the power and then press the START switch
to determine the home position.
12. Loosen the screw !4 of the presser set arm !3, and
then move the presser set arm !3 to the left or right
to adjust so that the needle down position is in the
center of the oval hole in the presser foot !5 at the
second bar tacking.
13. Remove the needle hole jig and install the needle.
―47―
BAS-705
Set home position
Press the start switch
!4
!3
!5
needle down position
