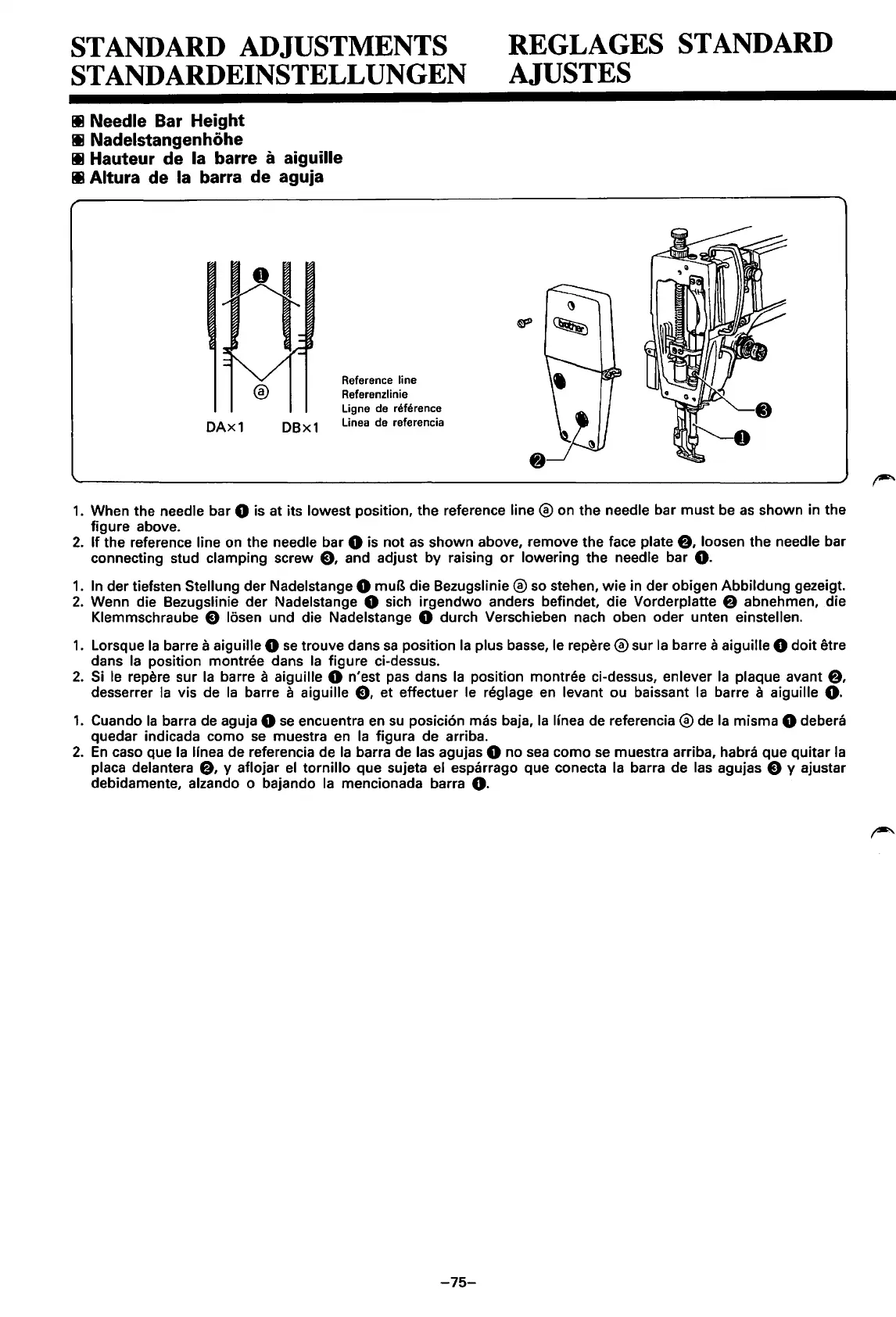

STANDARD
ADJUSTMENTS
STANDARDEINSTELLUNGEN
Ill
Needle
Bar
Height
Ill
Nadelstangenhohe
Ill
Hauteur de
Ia
barre a aiguille
Ill
Altura de
Ia
barra de aguja
®
DAx1 DBx1
Reference line
Referenzlinie
Ligne de reference
Linea de referencia
REGLAGES
STANDARD
AJUSTES
1.
When the needle bar 0 is at its lowest position, the reference line ® on the needle bar
must
be
as
shown in the
figure above.
2.
If
the reference line on the needle bar 0 is not
as
shown above, remove the face plate
f),
loosen the needle bar
connecting stud clamping screw
e.
and adjust
by
raising
or
lowering the needle bar
o.
1.
In
der tiefsten Stellung der Nadelstange 0 muB die Bezugslinie
®so
stehen,
wie
in der obigen Abbildung gezeigt.
2.
Wenn die Bezugslinie
der
Nadelstange 0 sich irgendwo anders befindet, die Vorderplatte
f)
abnehmen, die
Klemmschraube
e losen und die Nadelstange 0 durch Verschieben nach oben oder unten einstellen.
1.
Lorsque
Ia
barre a aiguille 0
se
trouve dans
sa
position
Ia
plus basse, le
repere@
sur
Ia
barre a aiguille 0
doit
etre
dans
Ia
position montree dans
Ia
figure ci-dessus.
2.
Si le repere sur
Ia
barre a aiguille 0 n'est pas dans
Ia
position montree ci-dessus, enlever
Ia
plaque avant
f),
desserrer
Ia
vis de
Ia
barre a aiguille
e.
et effectuer le reglage en levant ou baissant
Ia
barre a aiguille
0.
1.
Cuando
Ia
barra de aguja 0
se
encuentra en
su
posicion mas baja,
Ia
linea de
referenda®
de
Ia
misma 0 debera
quedar indicada como se muestra en
Ia
figura de arriba.
2.
En
caso que
Ia
linea de referenda de
Ia
barra de las agujas 0 no
sea
como se muestra arriba, habra que quitar
Ia
placa delantera
f),
y aflojar
el
tornillo
que sujeta el esparrago que conecta
Ia
barra de las agujas e y ajustar
debidamente, alzando o bajando
Ia
mencionada barra
0.
-75-
