2-98
Confidential

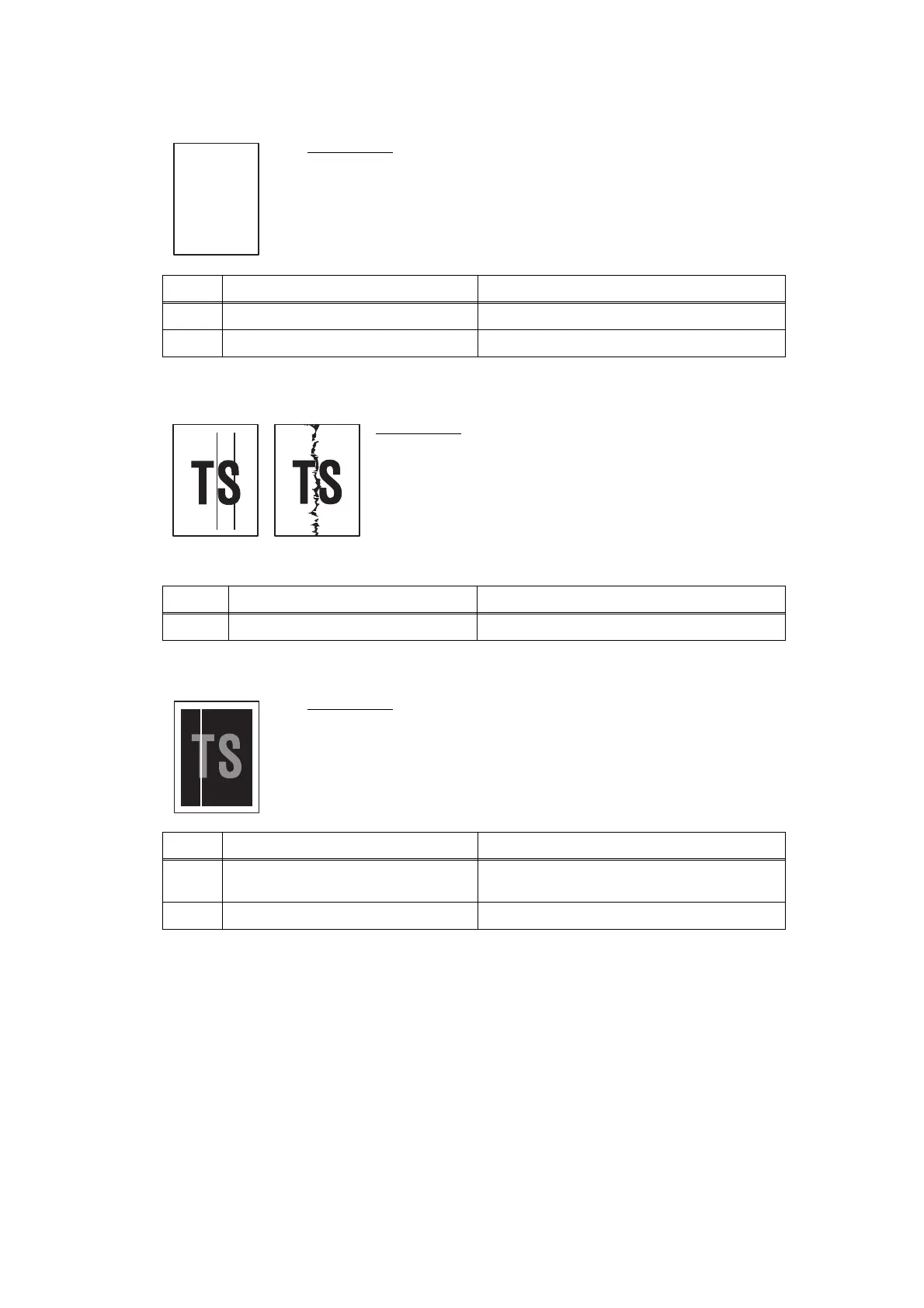

Completely blank
Vertical streaks
White vertical streaks
User Check
Check if the first side and second side of the document are
reversed.
Step Cause Remedy
1 CIS unit failure Replace the CIS unit.
2 Main PCB failure Replace the main PCB ASSY.
- ADF
User Check
Check if the ADF glass or document glass is not stained.
Step Cause Remedy
1 CIS unit failure Replace the CIS unit.
User Check
Check if the ADF glass or document glass is not stained.
Step Cause Remedy
1
White level data malfunction Perform the acquisition of white level data.
("Function code 55")
2 CIS unit failure Replace the CIS unit.
