9.10.14 Document Scanning Position Detection Sensor PCB ASSY/
Document Detection/ADF Cover Open Sensor PCB ASSY
(1) Remove the document scanning position detection sensor PCB ASSY while pushing
the rib.
(2) Disconnect the connector of ADF sensor harness unit from the document scanning
position detection sensor PCB ASSY.

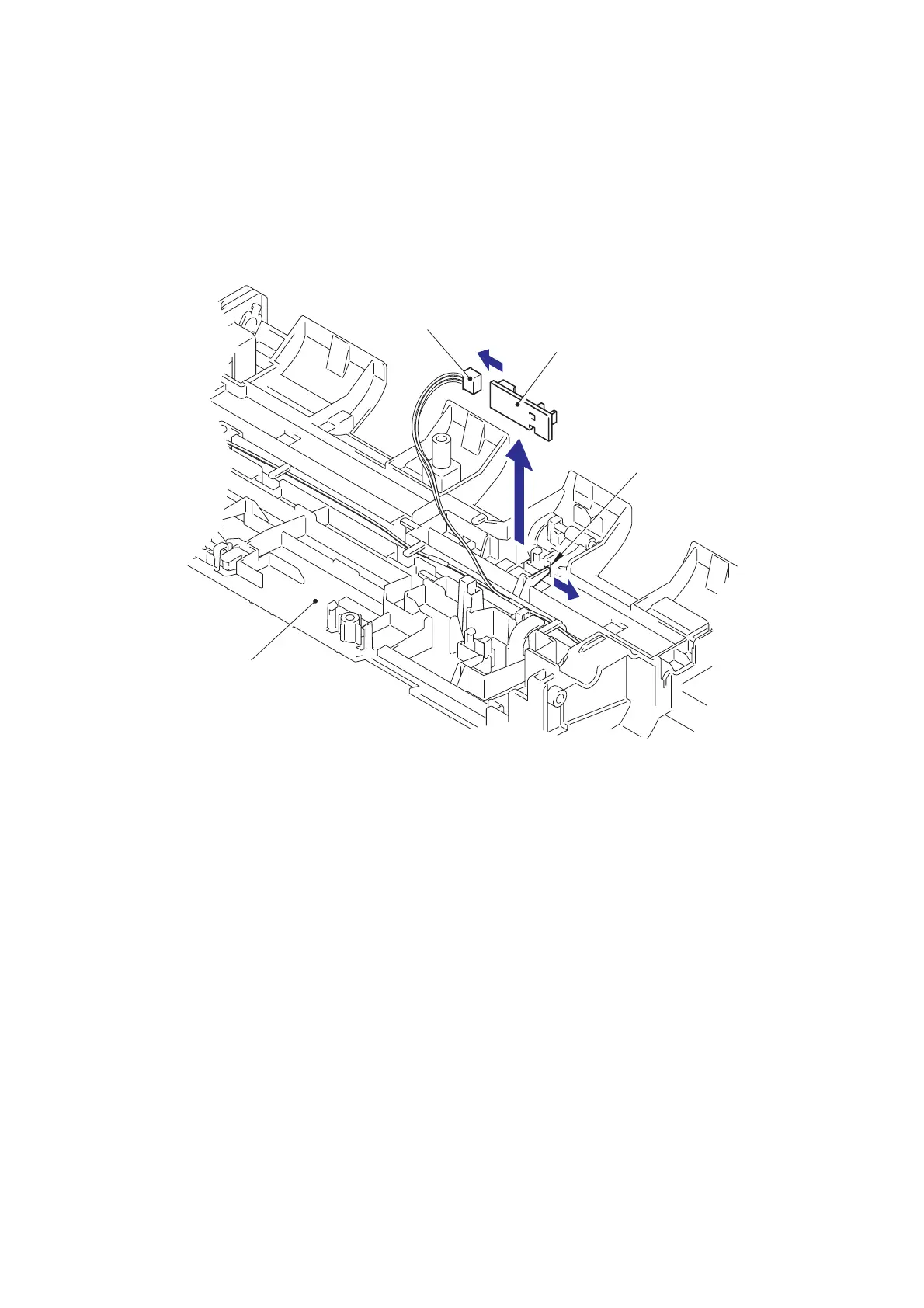

Fig. 3-44
Document scanning position
detection sensor PCB ASSY
Lower document chute ASSY
Connector
(ADF sensor harness unit)
Rib
1a
1b
2
1a
1b
2
