3-35
Confidential
9.5 Fuser Cover
(1) Hold the knobs on the fuser cover, and pull down this to your side.
(2) Release the boss of the main body while pulling the fuser cover to the direction of the
arrow 2, and remove fuser cover.

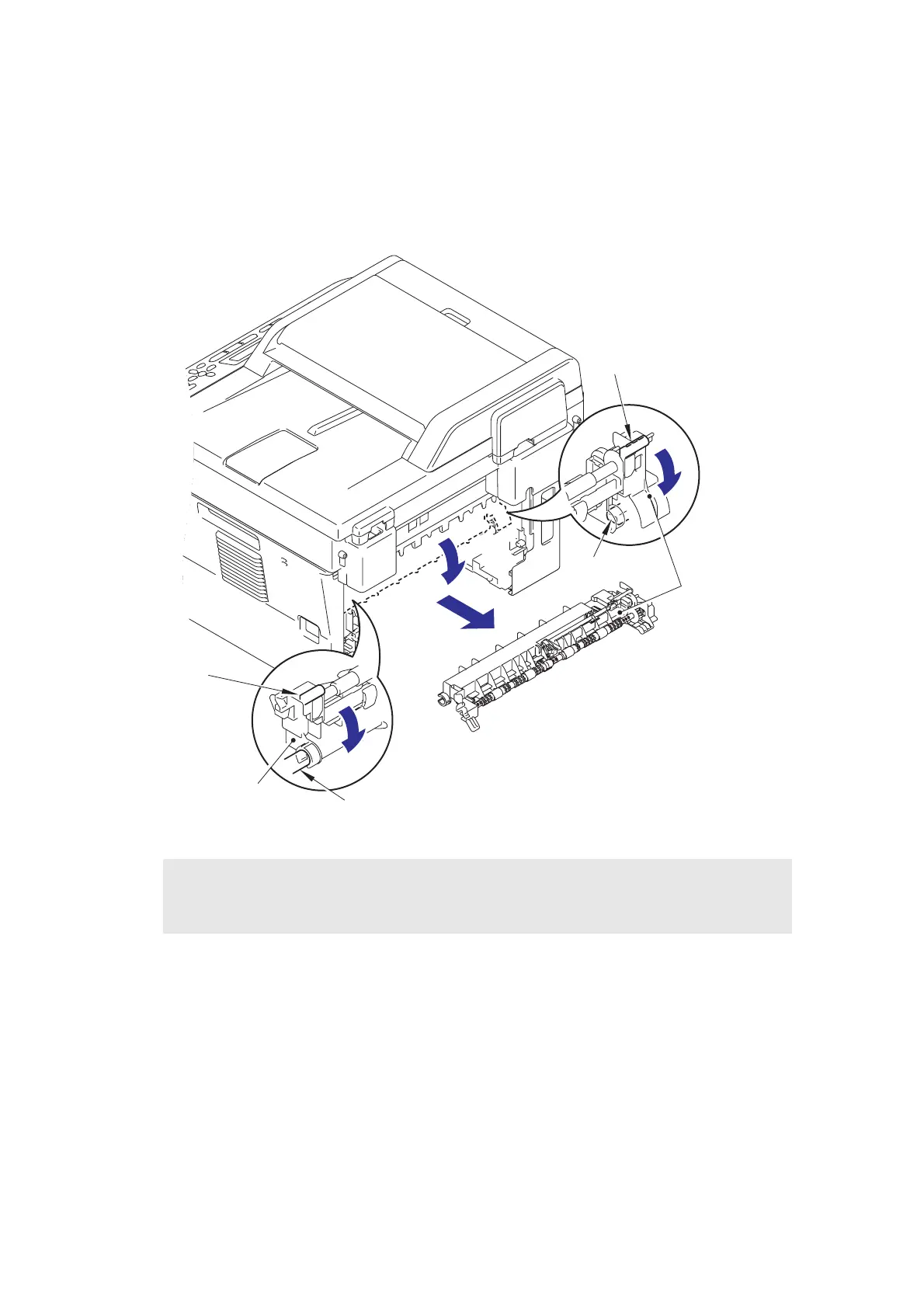

Fig. 3-16
Assembling Note:
When assembling the fuser cover, Check that only one of roller does not lift up. (Check
the position of the anti-curl levers. Refer to Fig. 2-9 in Chapter 2.)
Fuser cover
Fuser cover
Boss (main body)
Knob
Boss (main body)
Knob
