3-78
Confidential
9.18 Speaker Unit
(1) Disconnect the connector of the speaker unit from the main PCB ASSY.
(2) Remove the speaker harness ASSY from the guide.

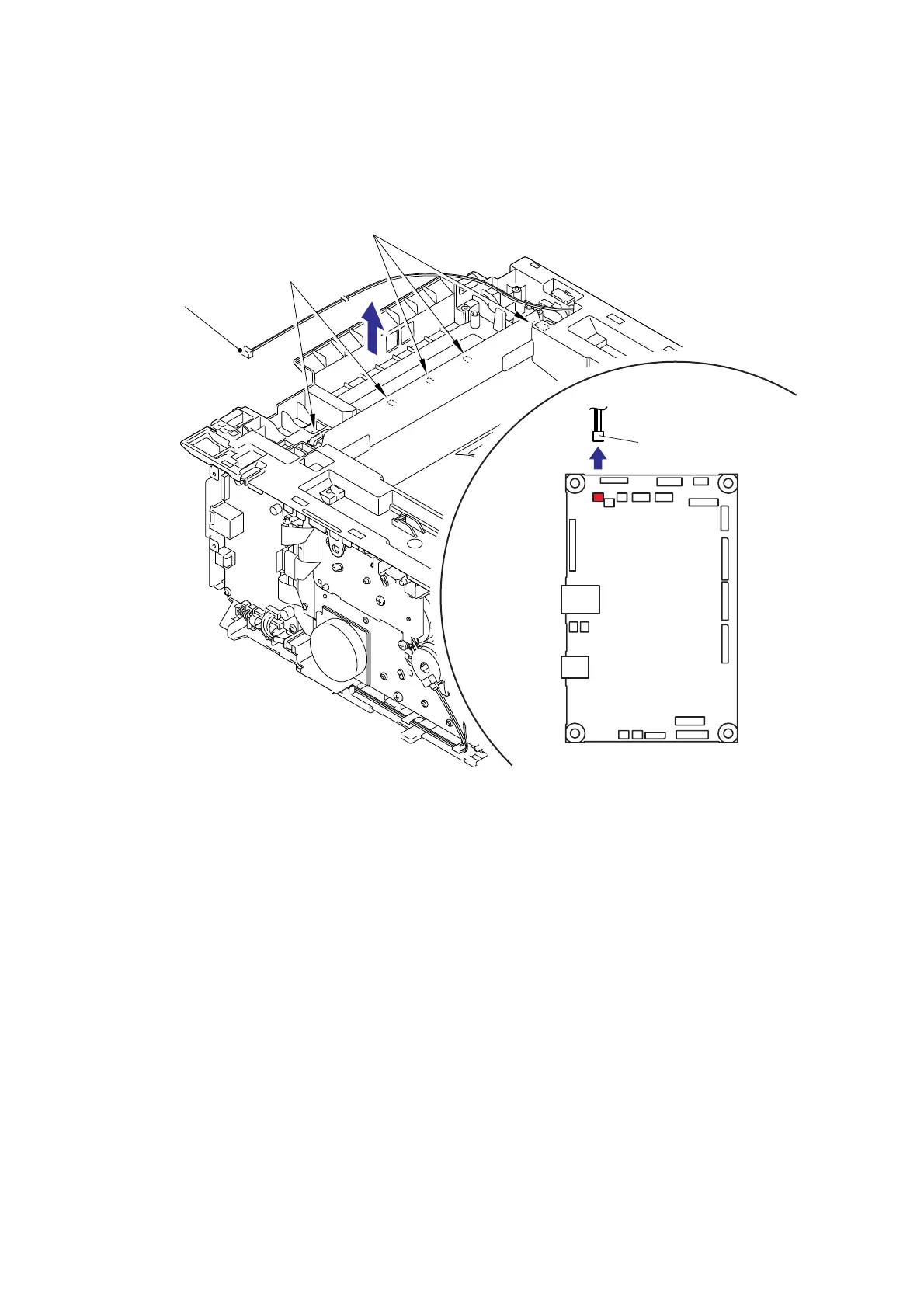

Fig. 3-64
Main PCB ASSY
CN22
Connector
(Speaker harness ASSY)
Guide
Guide
Connector
(Speaker harness ASSY)
