9.25 Filter
(1) Release the hooks to remove the air duct.
(2) Pull the rib of the air duct to the direction of the arrow 2a, and remove the filter.

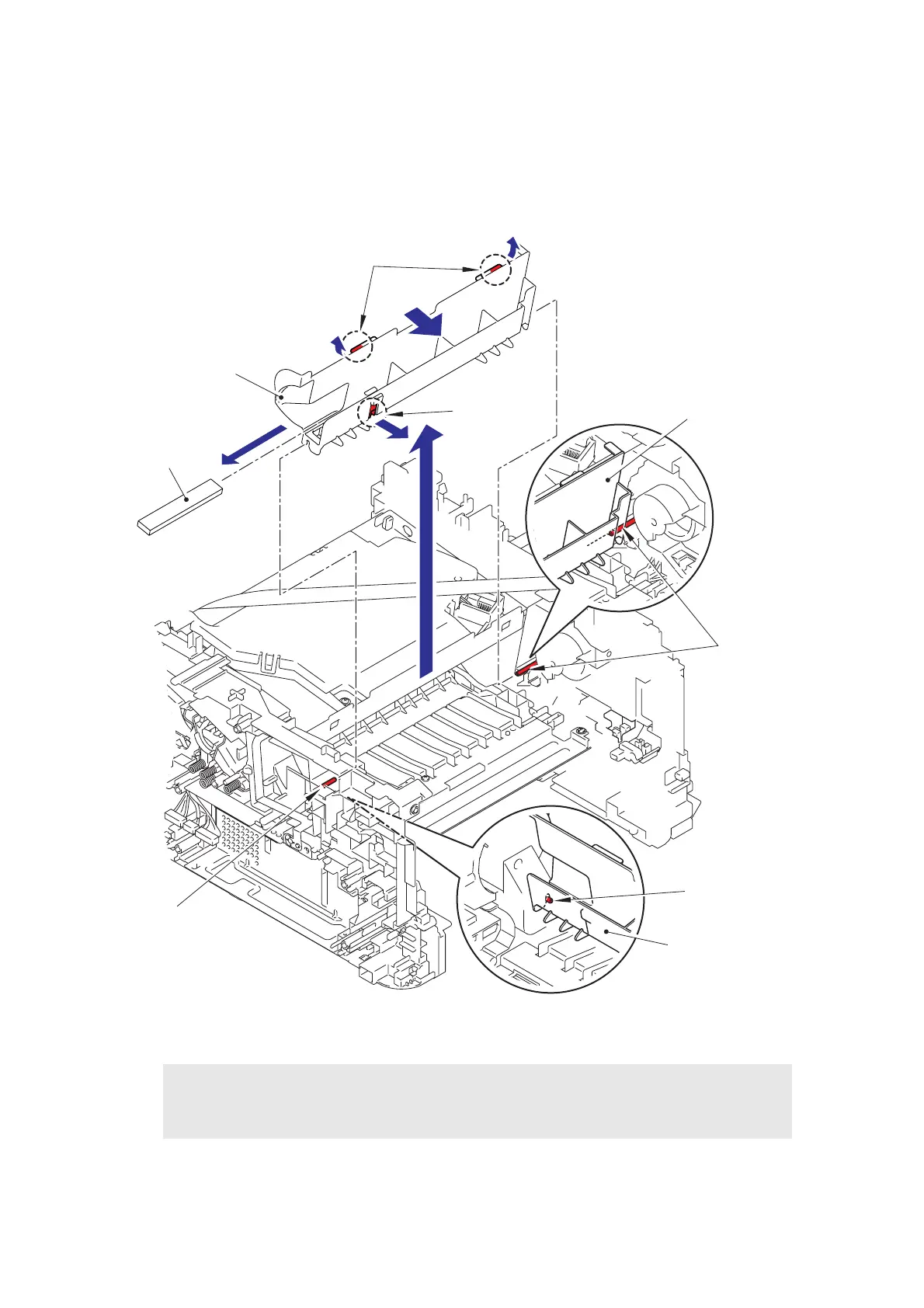

Fig. 3-79
Assembling Note:
• When assembling the air duct, align the notch part of the air duct with the pins of the
main body.
1a
1a
1b
1c
2a
Hooks
Rib
Pins
(main body)
Pins
Pins
(main body)
Filter
Air duct
Air duct
Air duct
