3-34
Confidential
9.4 Outer Chute ASSY
(1) Pull the outer chute ASSY to the direction of the 1a, and release the boss of the outer
chute ASSY from the main frame L ASSY, and remove the outer chute ASSY.

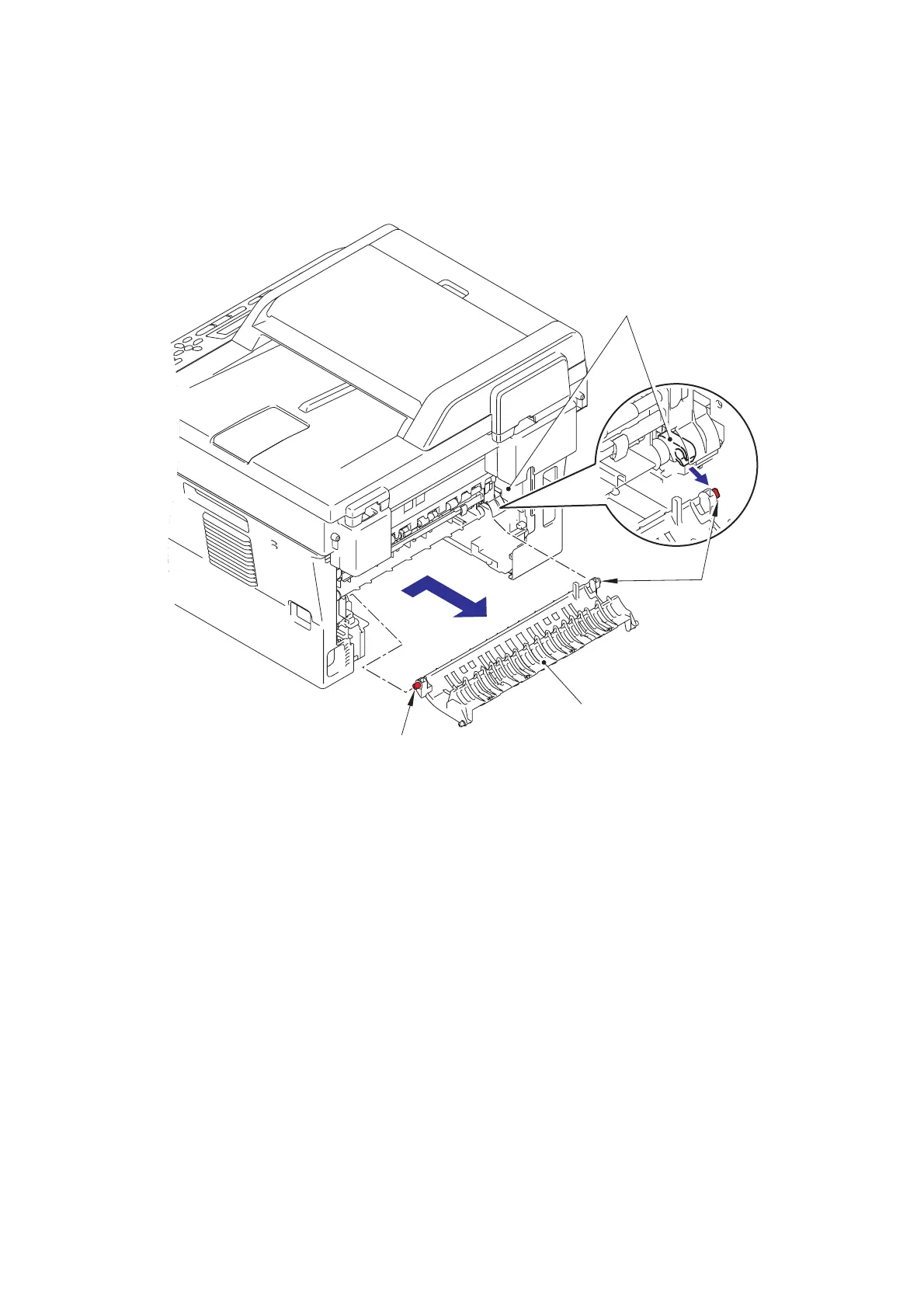

Fig. 3-15
Outer chute ASSY
Main frame L ASSY
Boss
Boss
1b
1a
