Brother MFC-7365DN Service Manual

5-25
Confidential
1.4.16 Fine adjustment of scan start/end positions (Function code 54)
<Function>
This function allows you to adjust the scan start/end positions on the ADF and FB unit.
<Operating Procedure>
(1) Press the 5 and 4 buttons in this order in the initial state of the maintenance mode.
In the case of the model without the numeric keys; Press the or button. The
“MAINTENANCE 54” appears on the LCD. Then press the OK button.
The “SCAN START ADJ.” will appear on the LCD.
(2) The “ : ADF : FB” will appear after two seconds. Select one of them that you want
to adjust the start position. If you want to adjust the start position of the ADF,
press button, and if you want to adjust that of the FB unit, press button.
(3) Press the or button to display the present compensation level for the start position.
Compensation levels can be adjusted in 11 steps from +5 to -5 (mm).
(4) Press the button to increase the correction value and the button to lower it.
When the Stop/Exit button is pressed, the machine beeps for one second and returns to
the initial state of the maintenance mode.
(5) Set the compensation level and press the OK button. The “ACCEPTED” will appear on
the LCD. One second later, the machine “ : ADF : FB” will appear on the LCD.
(6) Press the Stop/Exit button when finish the adjustment. The machine beeps for one
second and returns to the initial state of the maintenance mode.

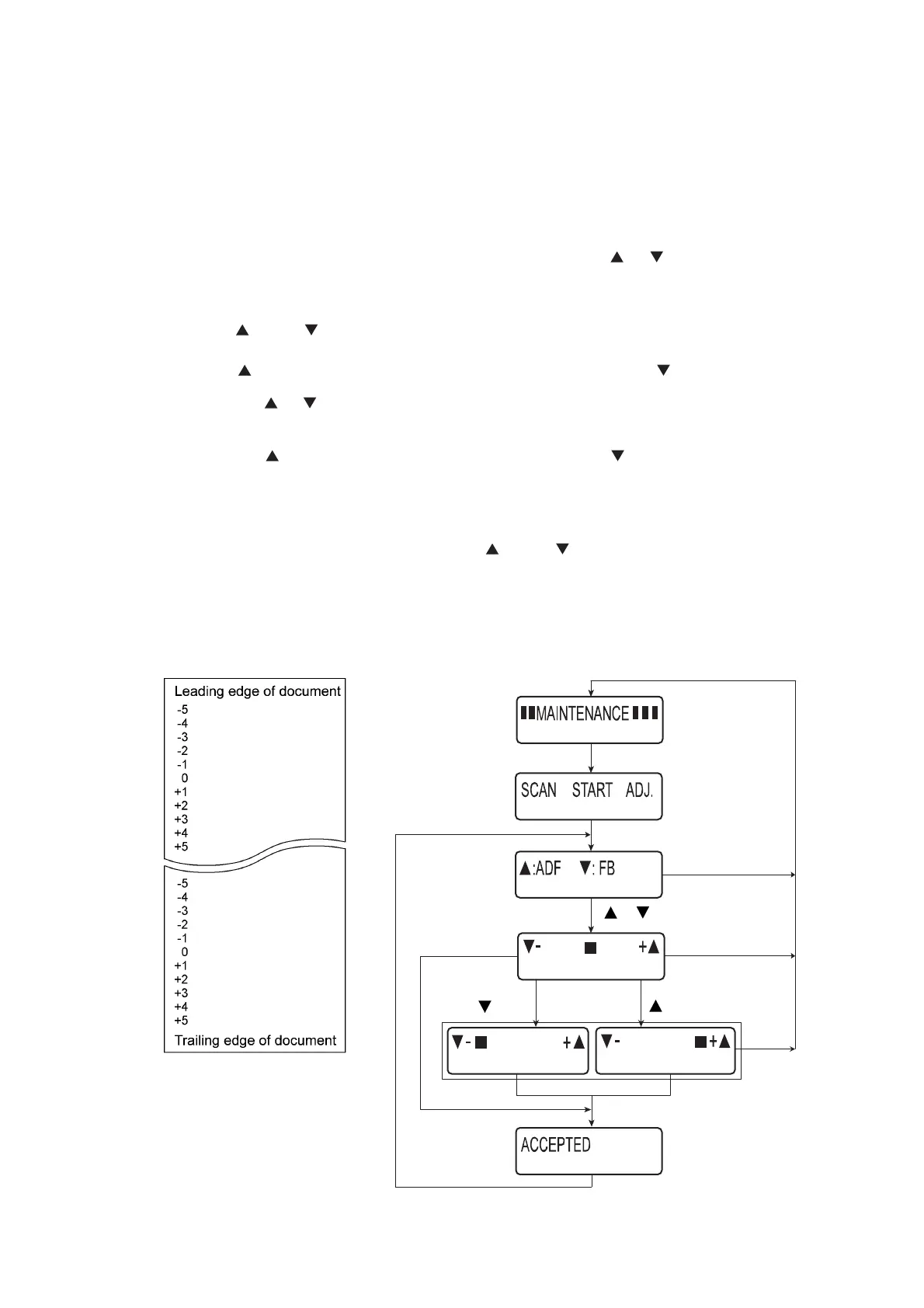

The correlation between the scan start/end positions and compensation levels is shown below.
Fig. 5-12
or button
OK button
Stop/Exit button
Stop/Exit button
OK button
button
button
5 and 4 buttons select
2 seconds later

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
