3-68
Confidential
9.14.2
Panel PCB ASSY

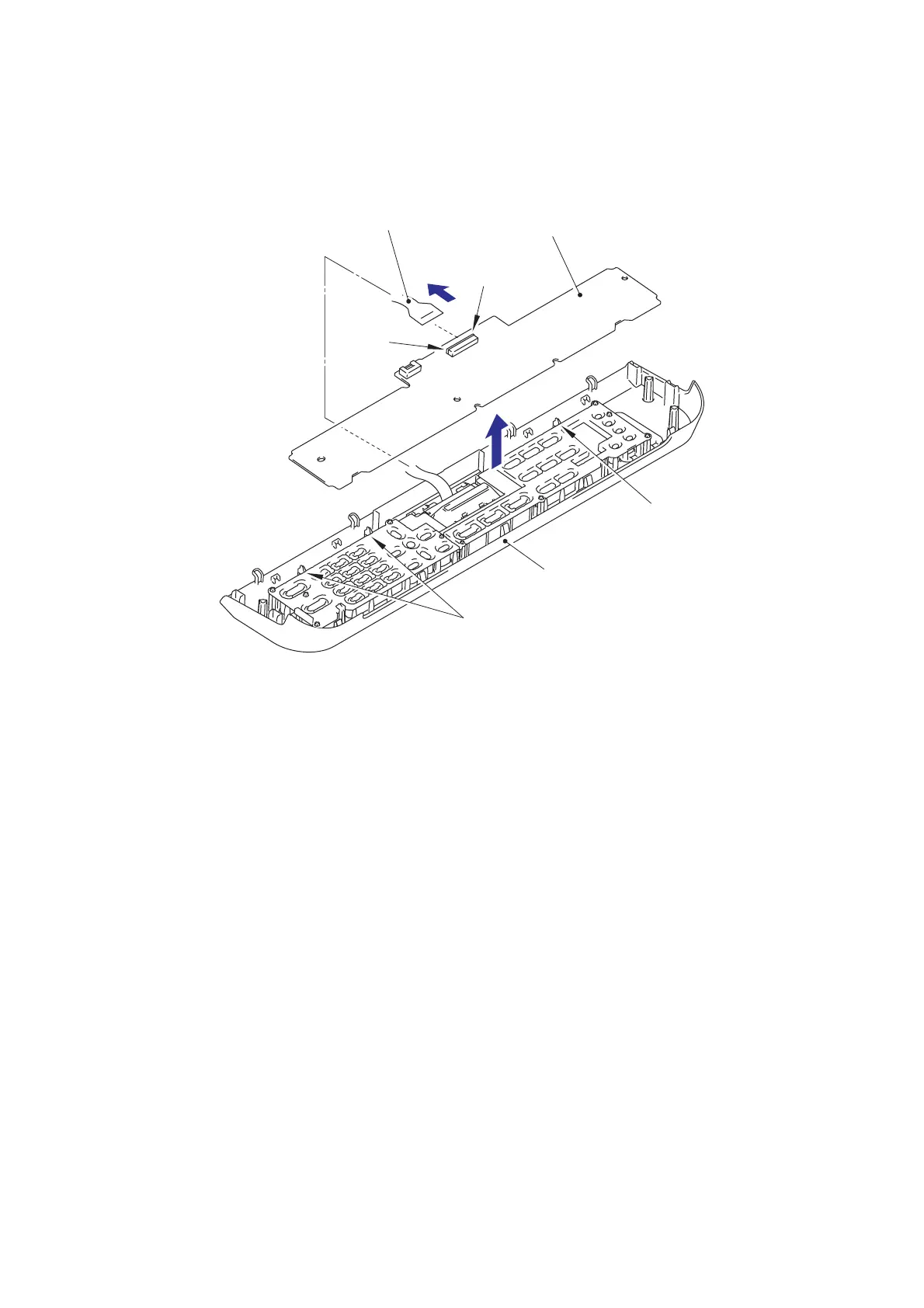

(1) Unlock the lock to disconnect the flat cable from the panel PCB ASSY.
(2) Release the hooks to remove the panel PCB ASSY from the panel unit.
Fig. 3-53
Panel PCB ASSY
Flat cable
Panel unit
Hooks
Hook
Lock
Lock
