Brother MFC-7365DN Service Manual

3-40
Confidential
9.8 Side cover L / Handset holder ASSY
(1) Remove the taptite bind B M4x12 screw.
(2) Release the hooks in the order of 1a, 1b and 1c, and remove the side cover L.
(3) Disconnect the connector of the hook switch from the main PCB ASSY.

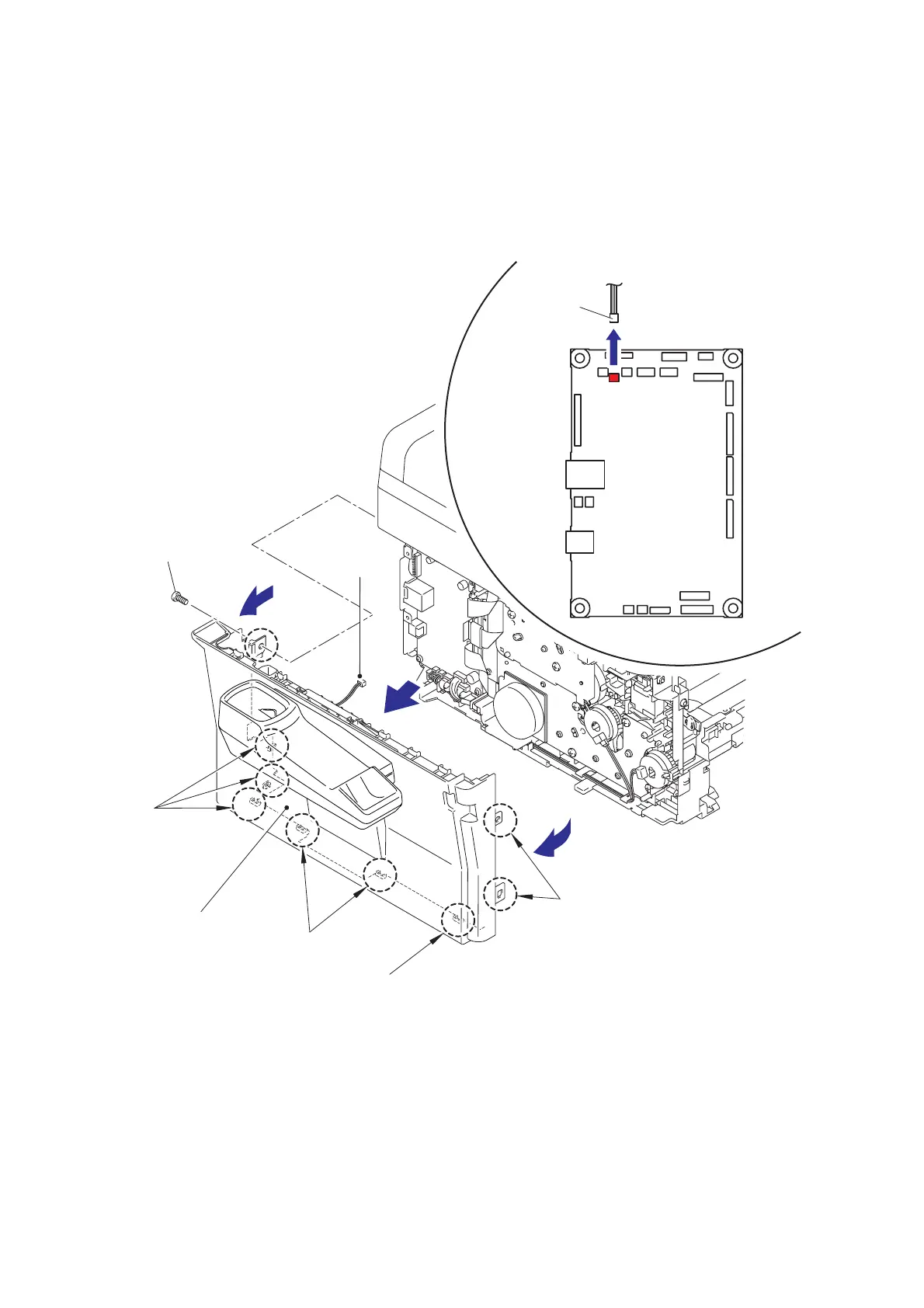

Fig. 3-21
CN22
Side cover L
Taptite bind B M4x12
Hook switch
Connector
Hooks
Hook
Hooks
Hooks
1a
1c
1b
Hook switch
Connector
Main PCB ASSY

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
