3-102
Confidential
9.33 Develop Drive Sub ASSY, Develop Gear Joint/52
(1) Remove the taptite cup S M3X6 SR screw and three taptite bind B M4x12 screws to
remove the develop drive sub ASSY.

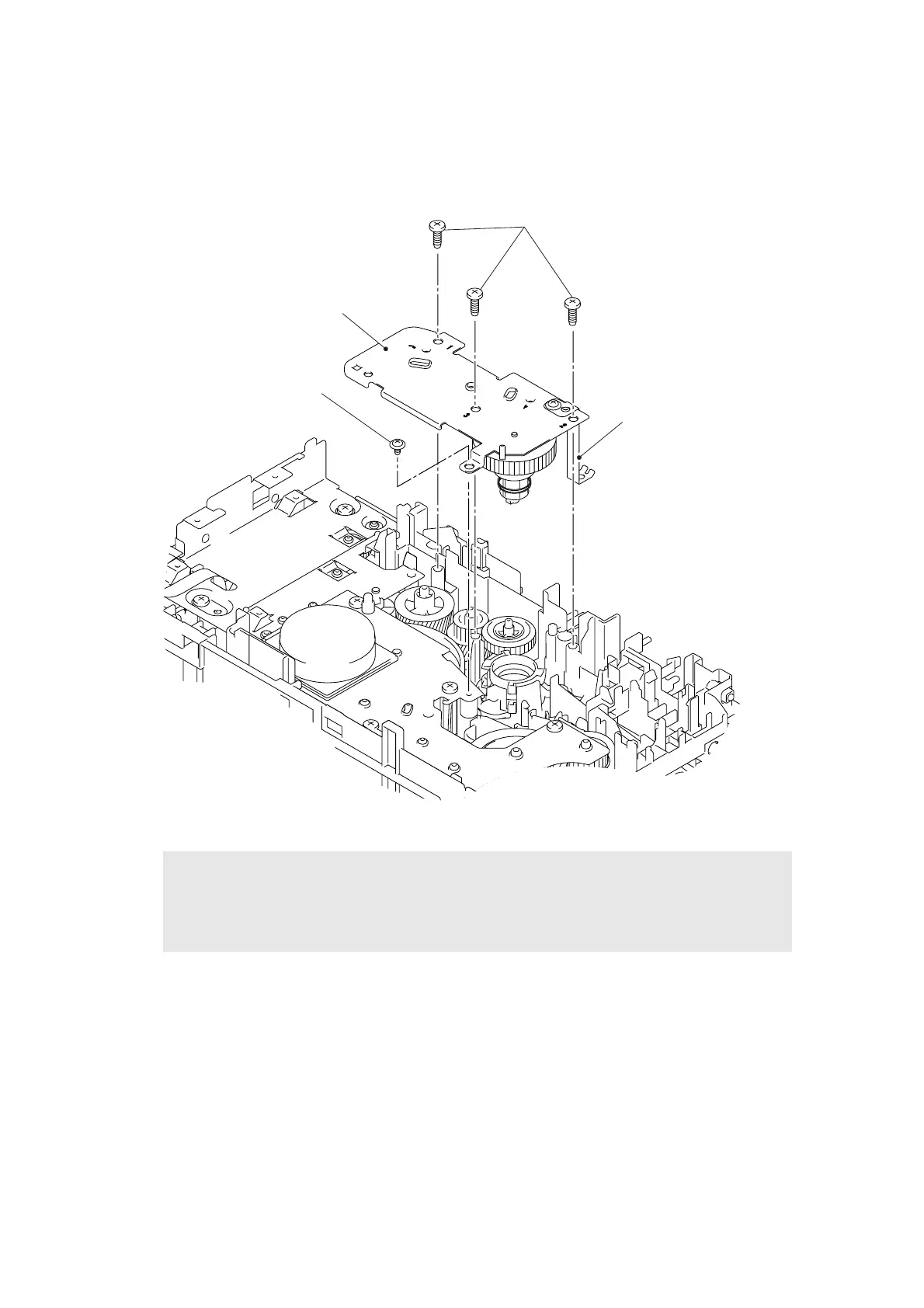

Fig. 3-91
Assembling Note:
• When assembling the develop drive sub ASSY, tighten the three taptite bind B M4x12
screws in numerical order written in the plate.
• Be careful not to bent the FG plate laser L.
1
3
2
Develop drive sub ASSY
FG plate laser L
Taptite bind B M4x12
Taptite cup S M3X6 SR
To Next Page
