3-53
Confidential
9.10.9
Upper Document Chute ASSY SX
(1) Remove the six taptite cup B M3x10 screws, and remove the upper document chute
ASSY SX.

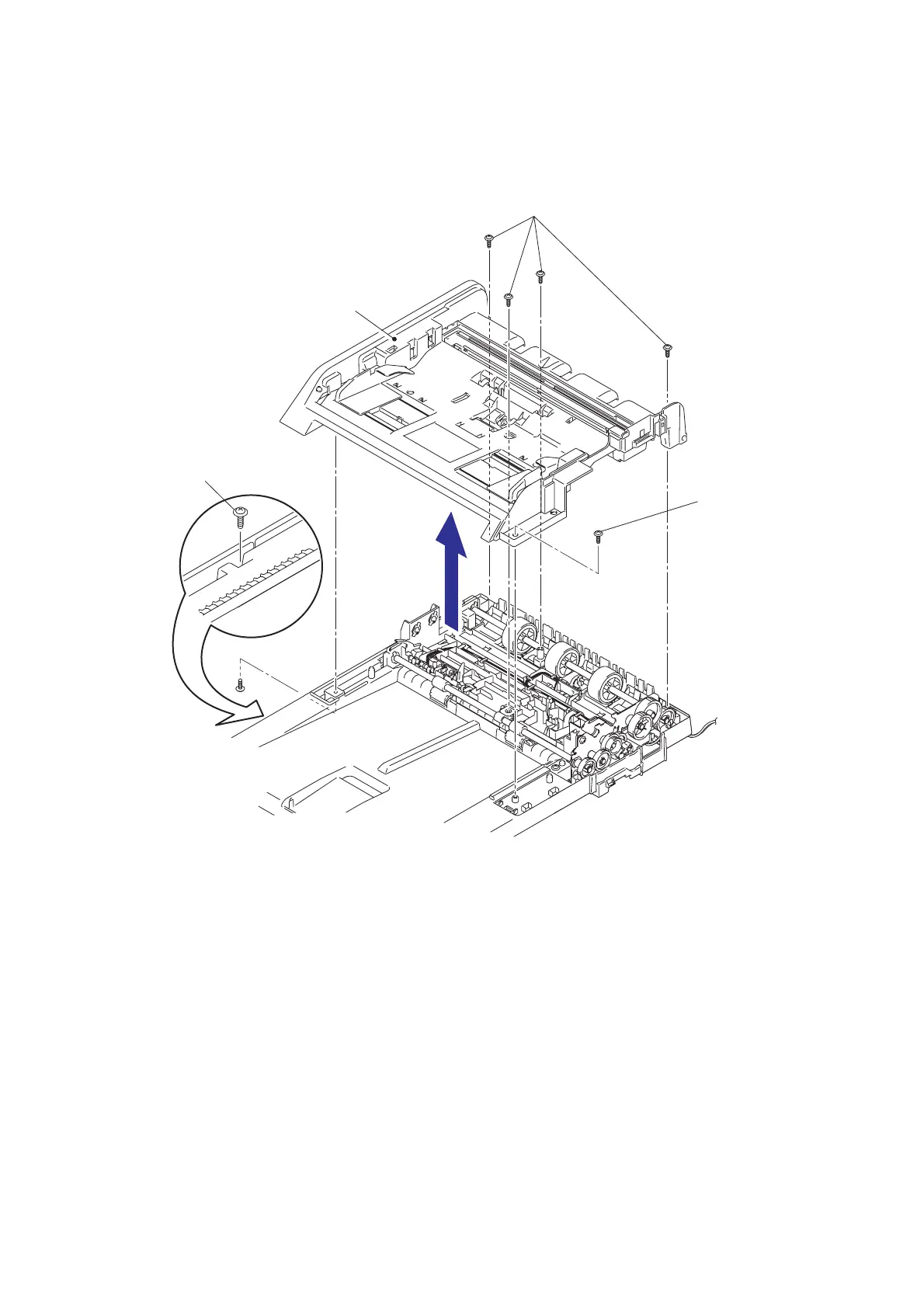

Fig. 3-38
Taptite cup B M3x10
Taptite cup B M3x10
Taptite cup B M3x10
Back side
view
Upper Document chute ASSY SX
