Brother MFC-7365DN

3-104
Confidential
9.34 Motor Drive Sub ASSY, Main Motor
(1) Remove the six taptite bind B M4x12 screws to remove the stopper and motor drive sub
ASSY.

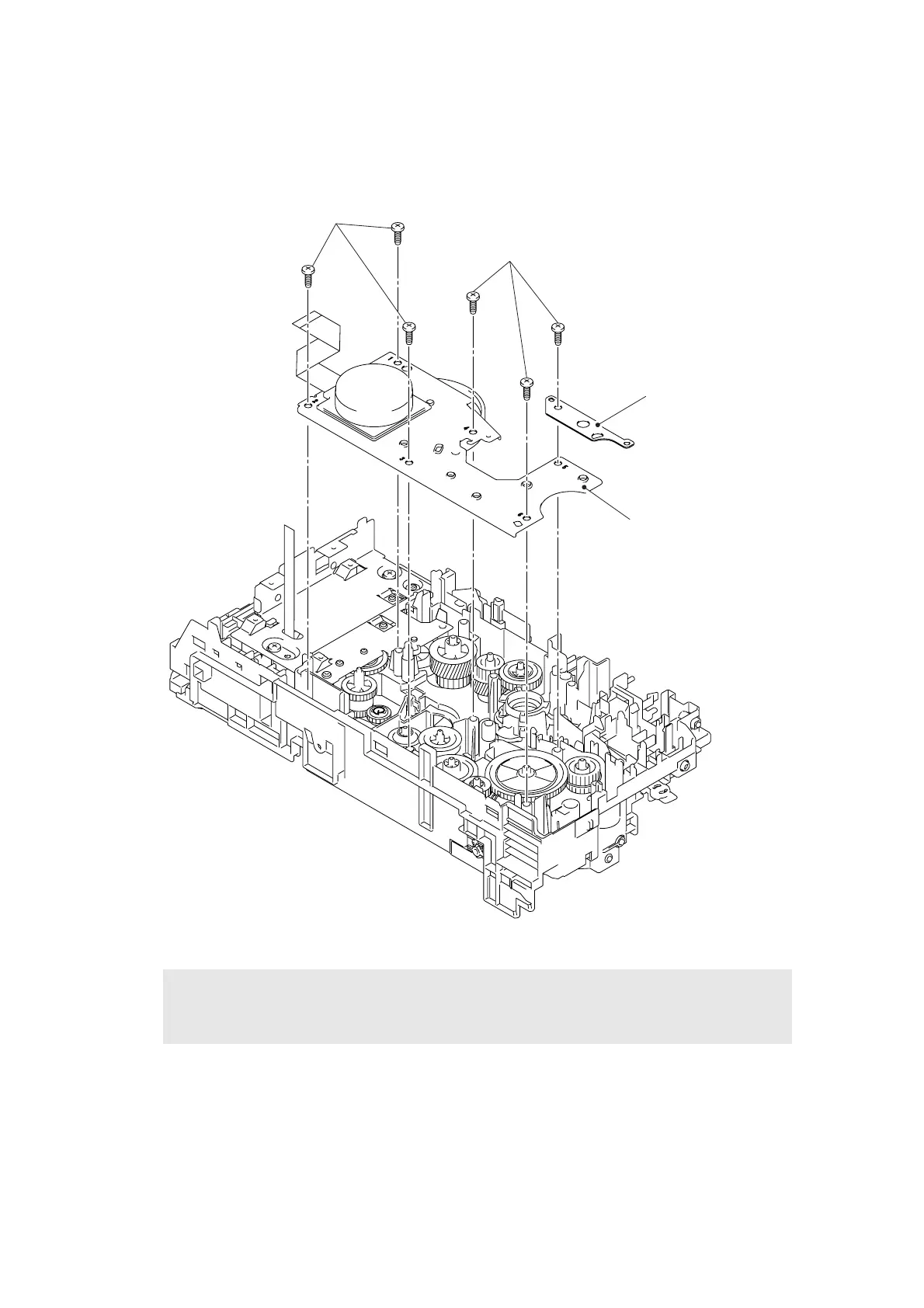

Fig. 3-93
Assembling Note:
• When assembling the motor drive sub ASSY, tighten the six taptite bind B M4x12
screws in numerical order written in the plate.
1
2
3
4
5
6
Stopper
Motor drive sub ASSY
Taptite bind B M4x12
Taptite bind B M4x12
