Brother MFC-7365DN Service Manual

3-46
Confidential
9.10.2 Hinge ASSY L / Hinge Arm R / Hinge R / Hinge R support

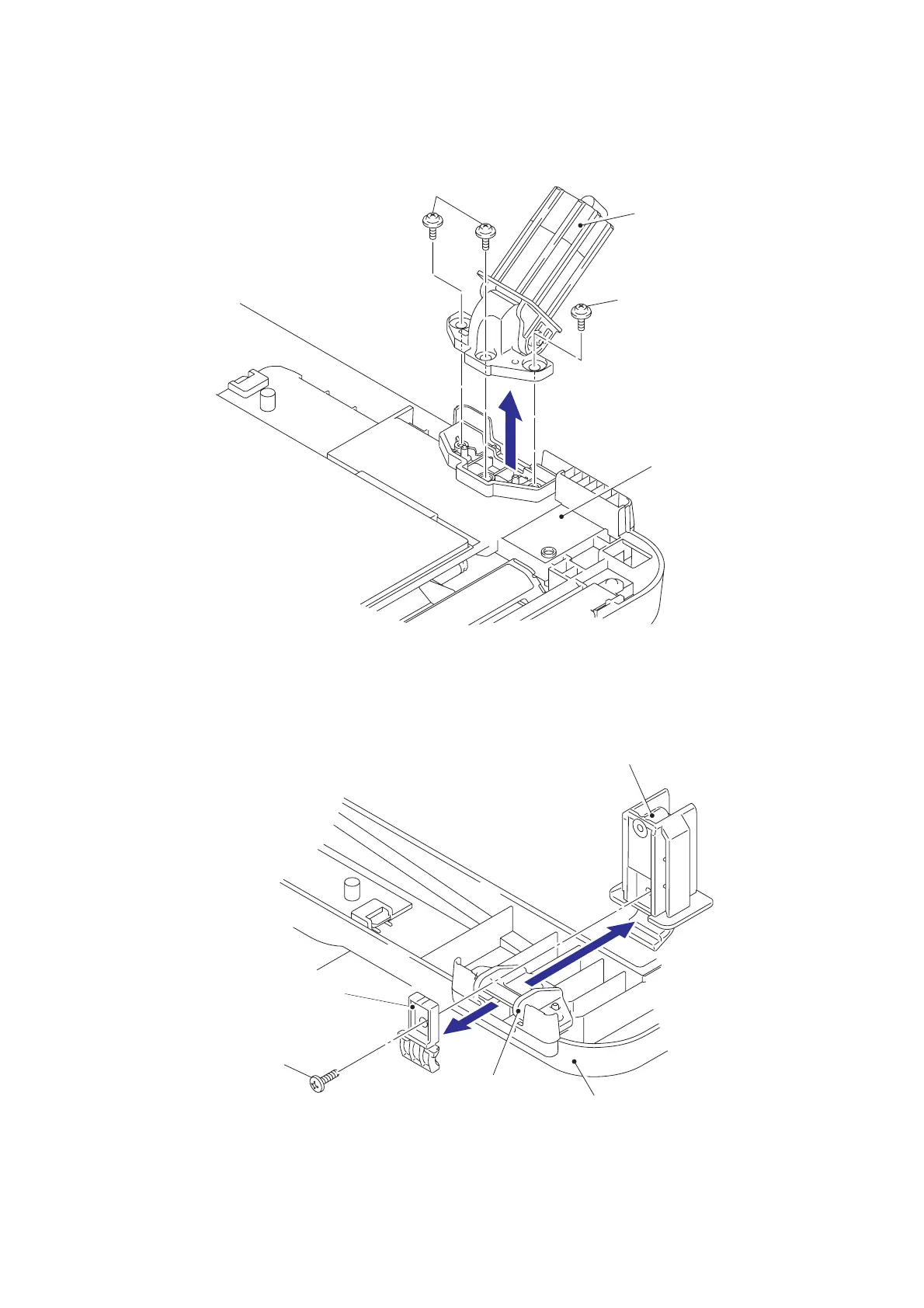

(1) Remove the three taptite cup S M3x12 screws, and remove the hinge ASSY L.
Fig. 3-28
(2) Remove the taptite cup B M3x10 screw, and remove the hinge R and the hinge R
support from the hinge arm R.
Fig. 3-29
ADF unit
Taptite cup S M3x12
Taptite cup S M3x12
Hinge ASSY L
Hinge R
ADF unit
Hinge arm R
Taptite cup B M3x10
Hinge R support

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
