Brother MFC-7365DN Service Manual

3-7
Confidential

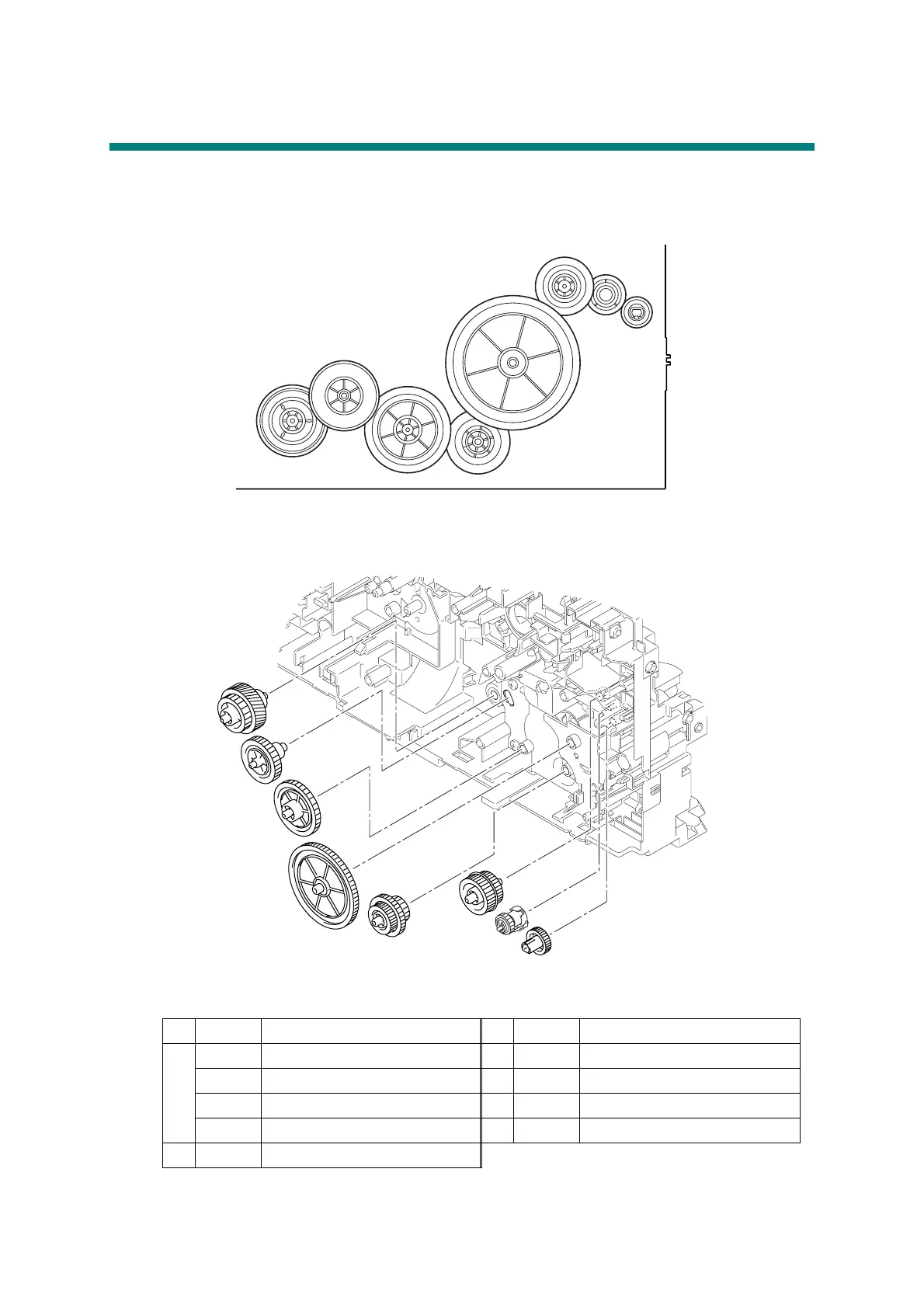

6. OVERVIEW OF GEARS
■ Paper feeder part
<Layout view>
Fig. 3-2
<Development view>
Fig. 3-3
<Name of gears>
* These parts are subject to change without prior notice
1 LY2584 Feeder gear 17 4 LY2046 Feeder gear idle 65
2
LY2047 Feeder gear 5 LY2045 Feeder gear 21/30/17
LY2581 Feeder gear holder 6 LY2044 Feeder gear 41
LY2582 Feeder gear spring 7 LY2043 Feeder gear 31 pendulum
LY2583 Feeder holder spring 8 LY2042 Feeder gear 26/52R
3 LY2048 Feeder gear 24/27
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
2
1
3
5
4
6
7
8

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
