Brother MFC-7365DN Service Manual

3-92
Confidential
9.26 Laser Unit
(1) Disconnect the flat cable of the high voltage power supply PCB ASSY from the main
PCB ASSY, and remove the flat cable of the high voltage power supply PCB ASSY from
the guide of the main frame L ASSY.
(2) Disconnect the flat cable of the laser unit from the laser unit.
(3) Remove the flat cable of the laser unit from the guide of the main frame L ASSY, and
disconnect the flat cable of the laser unit from the main PCB ASSY.
(4) Remove the four taptite cup S M3x8 SR screws, and remove the laser unit.

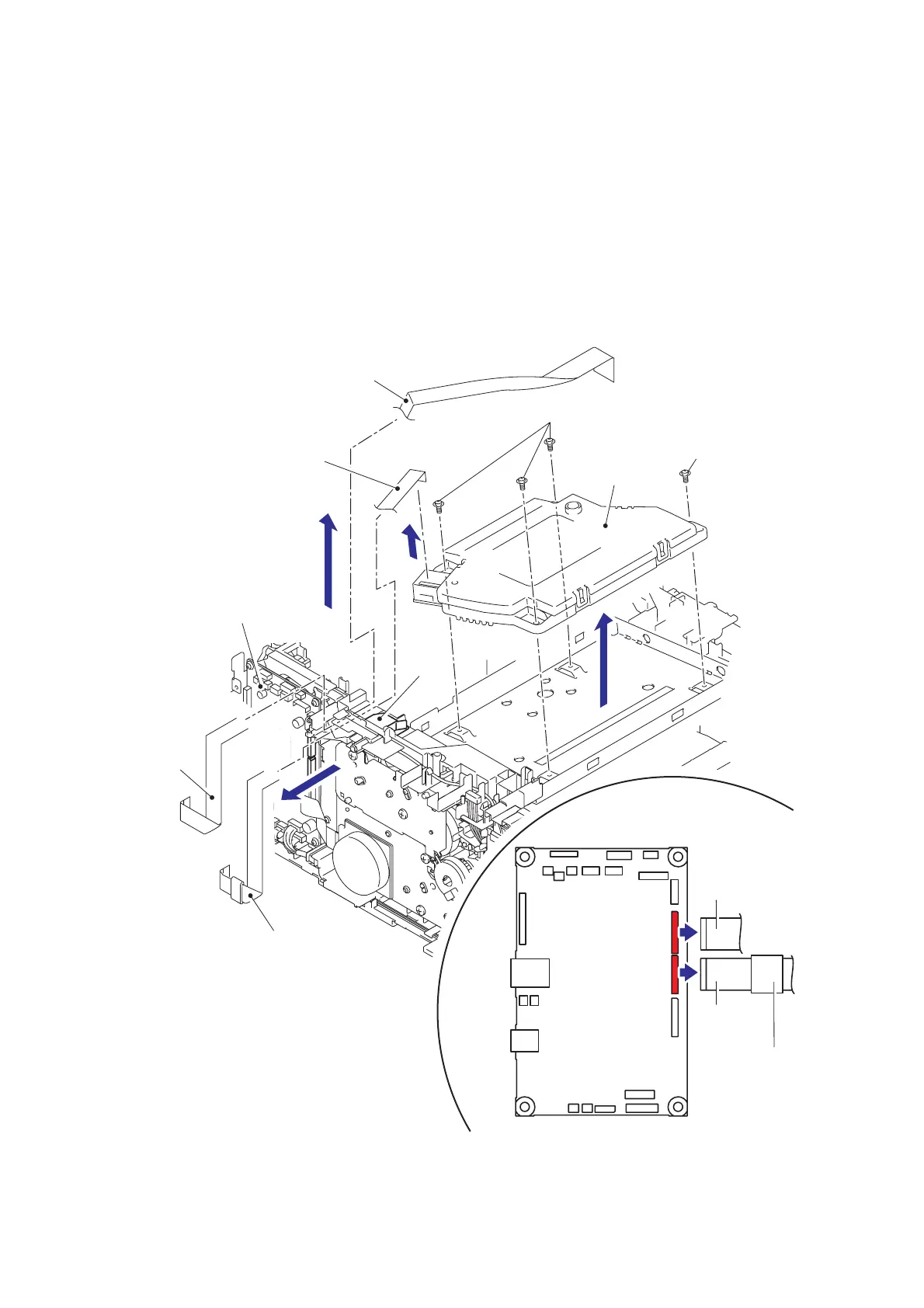

Fig. 3-80
Main PCB ASSY
CN17CN12
Main PCB ASSY
Guide
Laser unit
Flat cable
(high voltage power supply PCB ASSY)
Flat cable
(high voltage
power supply
PCB ASSY)
Flat cable
(high voltage
power supply
PCB ASSY)
Flat cable
(laser unit)
Flat cable
(laser unit)
Flat cable
(laser unit)
Ferrite core
Taptite cup S M3x8 SR
Taptite cup S M3x8 SR

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
