Brother MFC-7365DN Service Manual

3-101
Confidential
(3) Place the machine so that the main frame L ASSY is at the top.
(4) Remove the LVPS harness ASSY from the guide of the main frame L ASSY.
(5) Remove the taptite bind B M4x12 screw 5a (for Under bar).
(6) Remove the taptite cup S M3X6 SR screw 6a (for Chute ground plate), the taptite bind B
M4x12 screw 6b (for PF frame ASSY) and the taptite cup S M3x6 SR screw 6c (for FG
plate laser L).
(7) Release the hook to remove the feeder gear 17.
(8) Turn the feeder cam lever to the direction of the arrow, and remove the taptite bind B
M4x12 screw 8.
(9) Remove the taptite bind B M4x12 screw 9a and the two taptite cup S M3x6 SR screws 9b
to remove the main frame L ASSY.

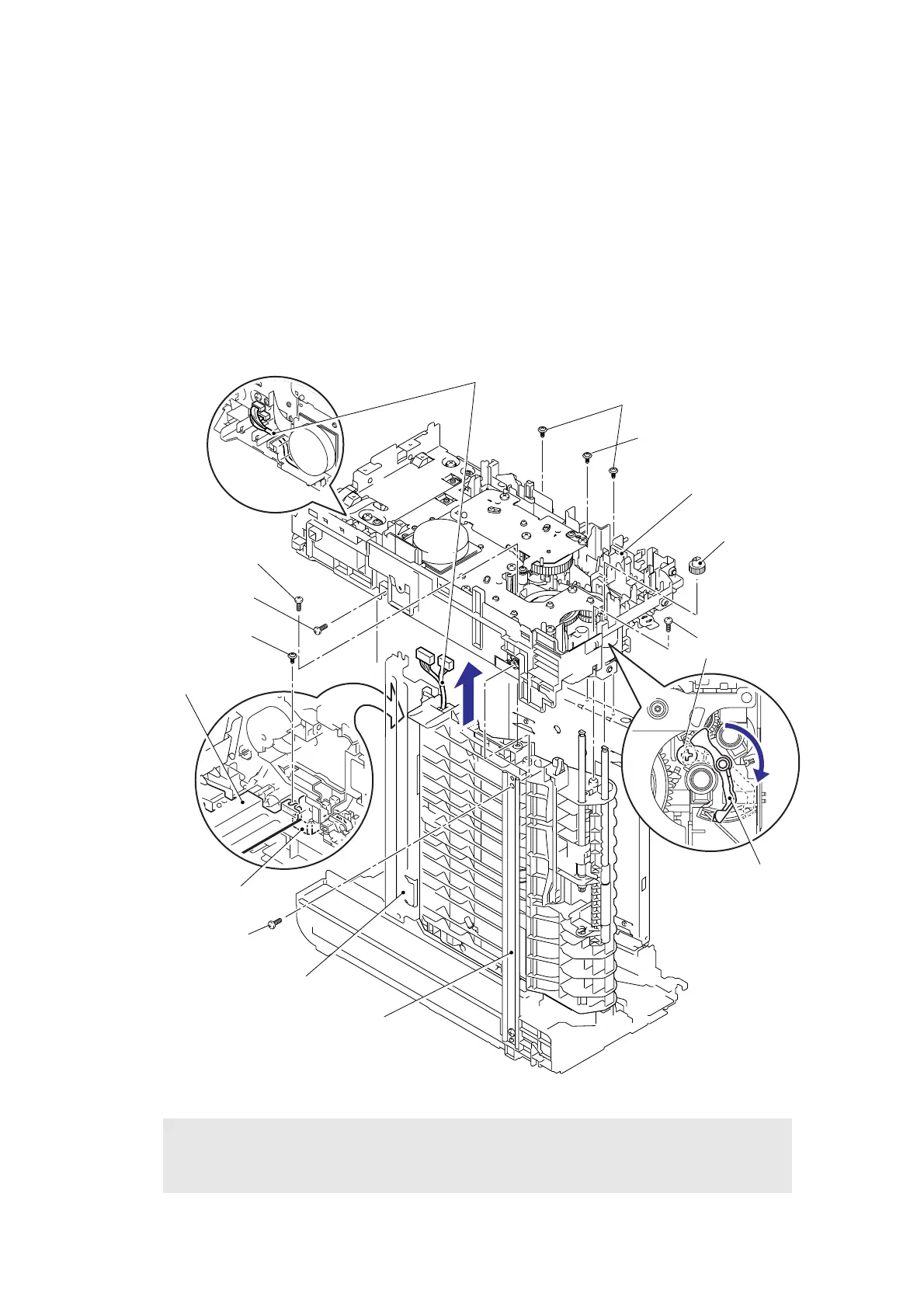

Fig. 3-90
Assembling Note:
• When assembling the main frame L ASSY, check that there is the chute ground plate on
the upper side of the FG plate main PCB.
Feeder gear 17
Main frame L ASSY
Taptite bind B M4x12 (8)
Feeder cam lever
LVPS harness ASSY
Taptite cup S M3x6 SR (9b)
Taptite cup S M3x6 SR (6c)
Under bar
Chute ground plate
FG plate MAIN PCB
Taptite bind B M4x12
(5a)
Chute ground plate
Taptite bind B M4x12 (9a)
Taptite bind B M4x12
(6b)
Taptite cup S M3X6 SR
(6a)
Machine top side
(Machine body
upside down)

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
