3-77
Confidential
(8) Remove the two taptite cup S M3x6 SR screws, and remove the NCU ASSY from the
NCU shield.
(9) Disconnect the connector of the NCU harness ASSY from the NCU ASSY.

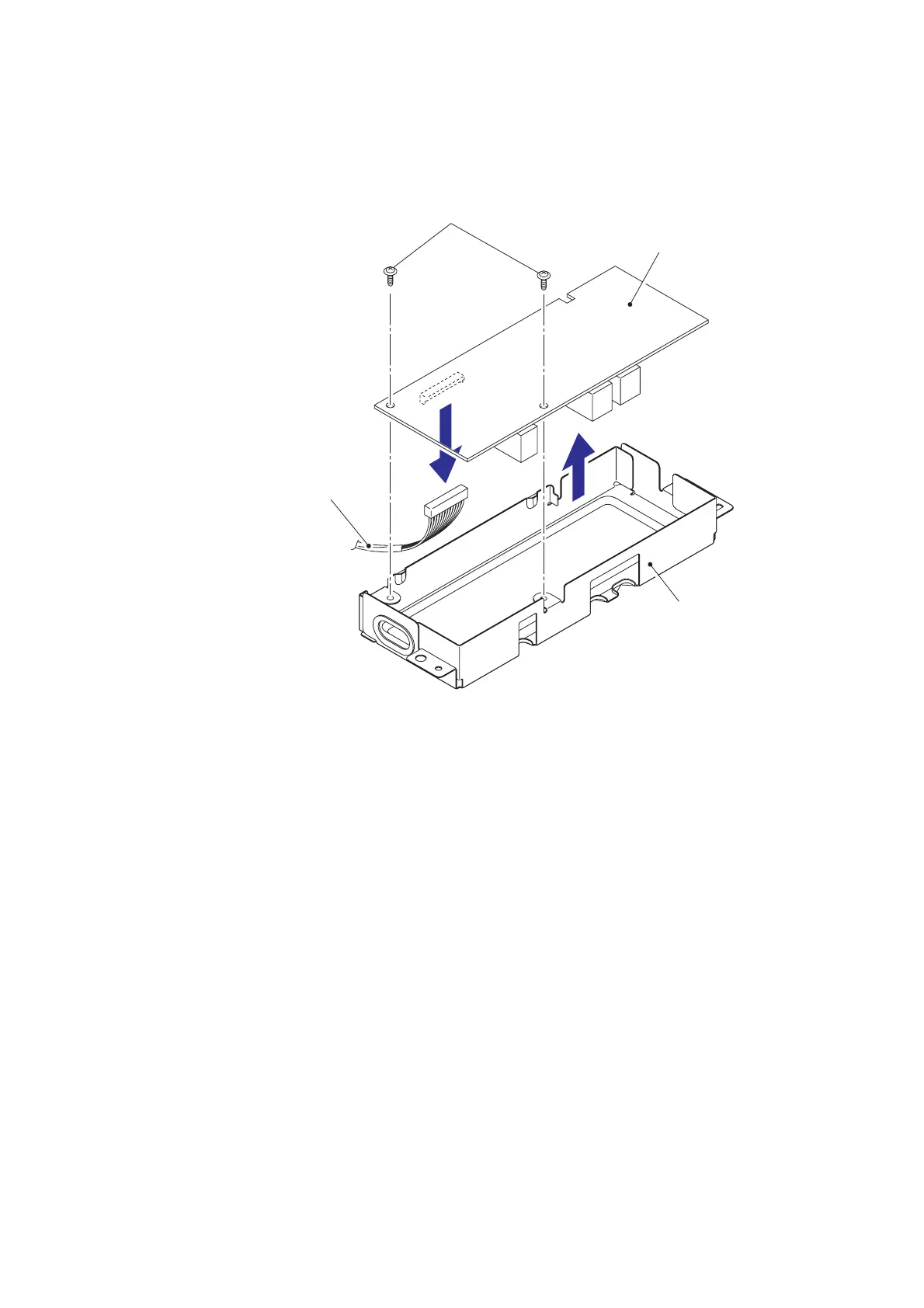

Fig. 3-63
Taptite cup S M3x6 SR
NCU ASSY
Connector (NCU harness ASSY)
NCU shield
9
8
