(3) Remove the document detection/ADF cover open sensor PCB ASSY while pushing the rib.
(4) Disconnect the connector of ADF sensor harness unit from the document detection/ADF
cover open sensor PCB ASSY.

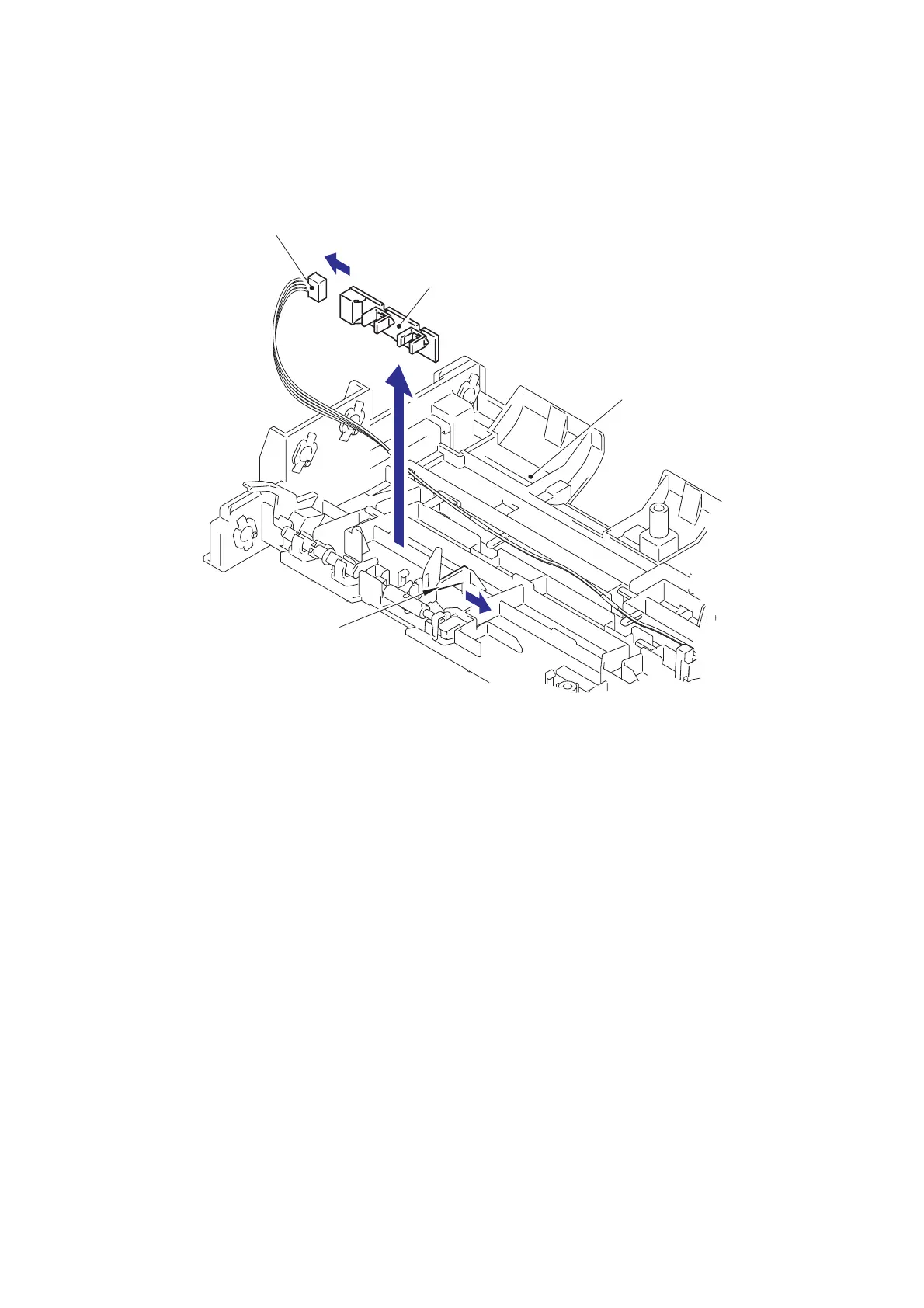

Fig. 3-45
Document detection/ADF cover open sensor PCB ASSY
Lower document chute ASSY
Connector
(ADF sensor harness unit)
Rib
3a
3b
4
