Brother MFC-7365DN Service Manual

3-24
Confidential

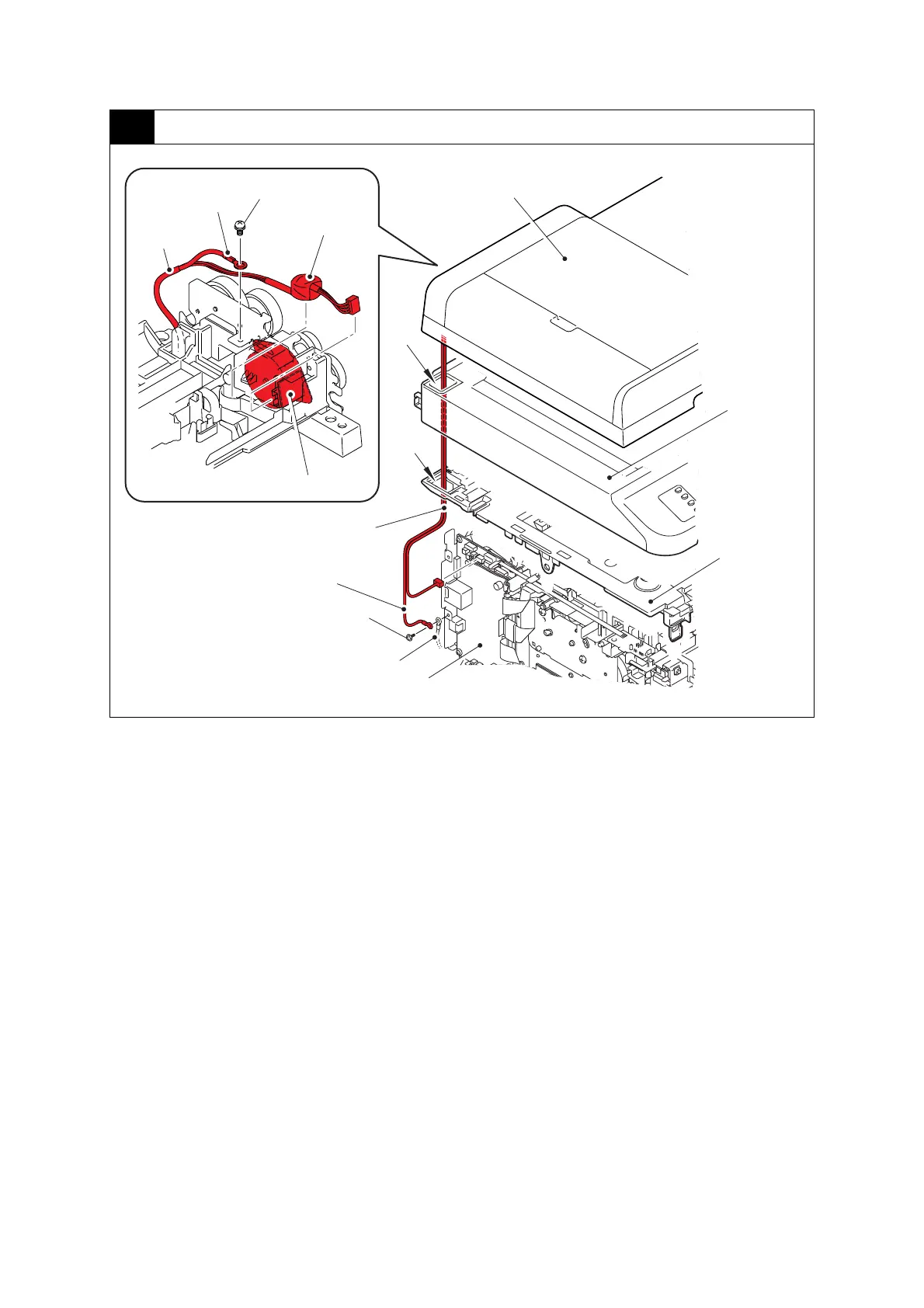

20 ADF motor
Hole
Ferrite core
Hole
ADF motor harness ASSY
ADF motor
harness ASSY
Main PCB
ADF unit
ADF FG harness
ADF motor
Document
scanner unit
Joint cover
Taptite cup S M3x6
Taptite cup S M3x6
FB FG harness
ADF FG harness

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
