Brother MFC-7365DN Service Manual

3-28
Confidential
<Disconnecting Cables and Removing Accessories>
Prior to proceeding with the disassembly procedure,
(1) Unplug
• the AC cord,
• the USB cable, if connected,
• the LAN cable, if connected,
• the Handset curled cord ASSY, if connected.
(2) Remove
• the Paper tray,
• the Toner cartridge and Drum unit,
• the Duplex unit,
• LAN port cap,
• Handset ASSY

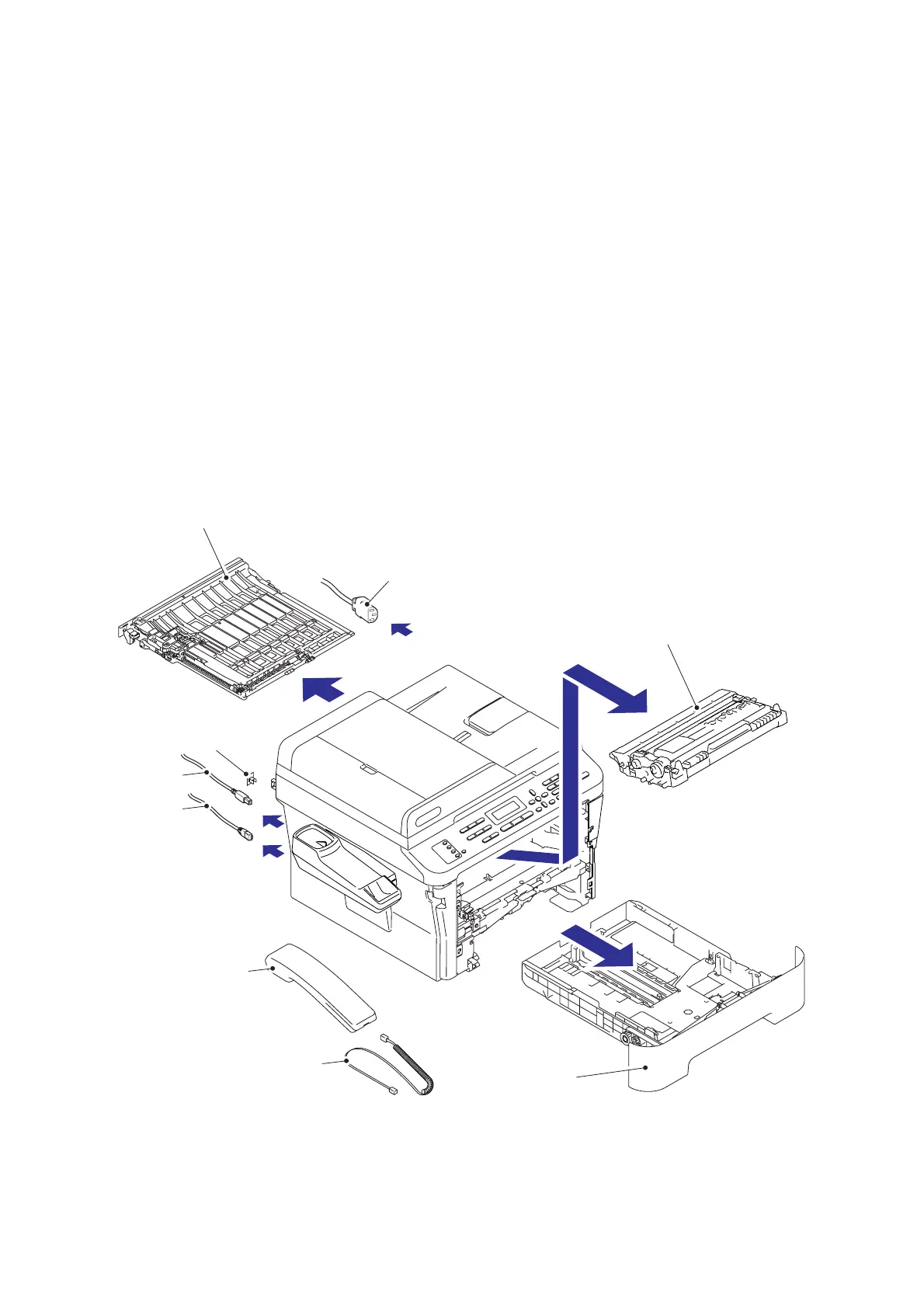

Fig. 3-8
LAN port cap
Duplex tray
(DCP-7060D / 7065DN / 7070DW / HL-2280DW
Toner cartridge & Drum unit
Paper tray
AC cord
USB cable
Handset ASSY
Handset curled cord ASSY
LAN cable
MFC-7365DN / 7460DN / 7470D / 7860DN / 7860DW)

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
