Brother MFC-7365DN Service Manual

3-72
Confidential

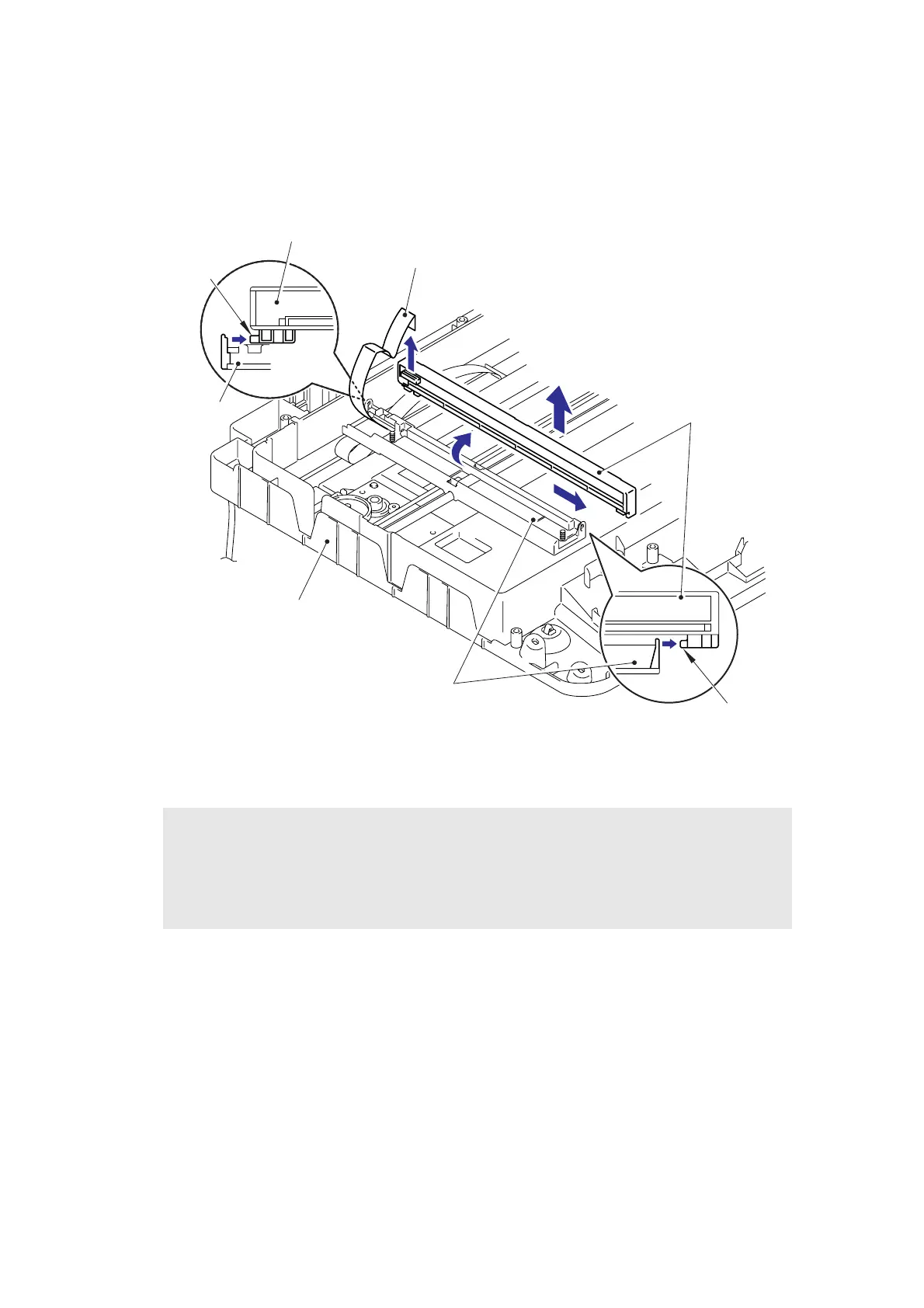

(4) Turn the CIS unit to the direction of the arrow 4a 90° clockwise, and then pull it to the
direction of the arrow 4b slightly. Release the two bosses from the CIS carriage, and
remove the CIS unit to the direction of the arrow 4c.
(5) Disconnect the CIS flat cable from the CIS unit.
Fig. 3-58
Assembling Note:
• When assembling the CIS unit, turn the CIS unit 90° clockwise in the same way as
removing.
• Acquire the white level data, and set the CIS scanning area.
(Refer to 1.4.17 Acquisition of white level data (Function code 55) in Chapter 5.)
Document scanner
bottom cover
CIS carriage
CIS carriage
CIS flat cable
4c
4b
4a
4b
4b
CIS unit
CIS unit
Boss
Boss

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
