Brother MFC-7365DN Service Manual

3-99
Confidential
(4) Remove the FG spring regist from the motor drive sub ASSY and the conductive bearing 5.
(5) Remove the conductive bearing 5 from the pin of the main frame L ASSY, and turn it to
the direction of the arrow 5a until the releasing position, and pull out the conductive
bearing 5 from the registration roller shaft 2.
(6) Pull out the registration roller shaft 2.

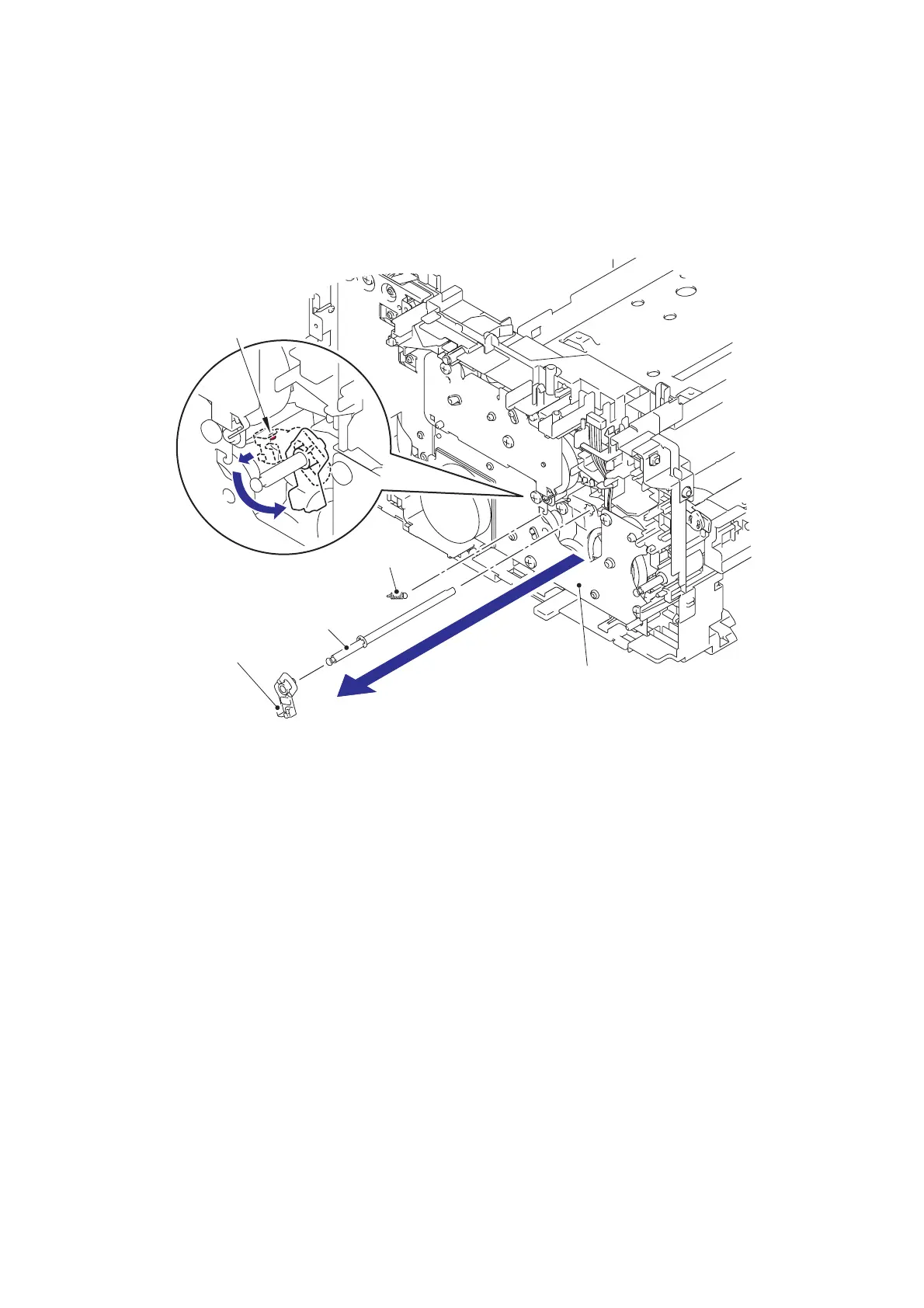

Fig. 3-88
Motor drive sub ASSY
FG spring regist
Conductive bearing 5
Registration roller shaft 2
Pin
5a

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
