Brother MFC-7365DN Service Manual

5-16
Confidential
(3) Check that the display on the LCD is changed when the detection condition of each
sensor is changed. For instance, insert paper to the document detection sensor or the
registration front (rear) sensor, open the front cover or the back cover, etc.
(4) When the Stop/Exit button is pressed, the machine beeps for one second and returns to
the initial state of the maintenance mode.

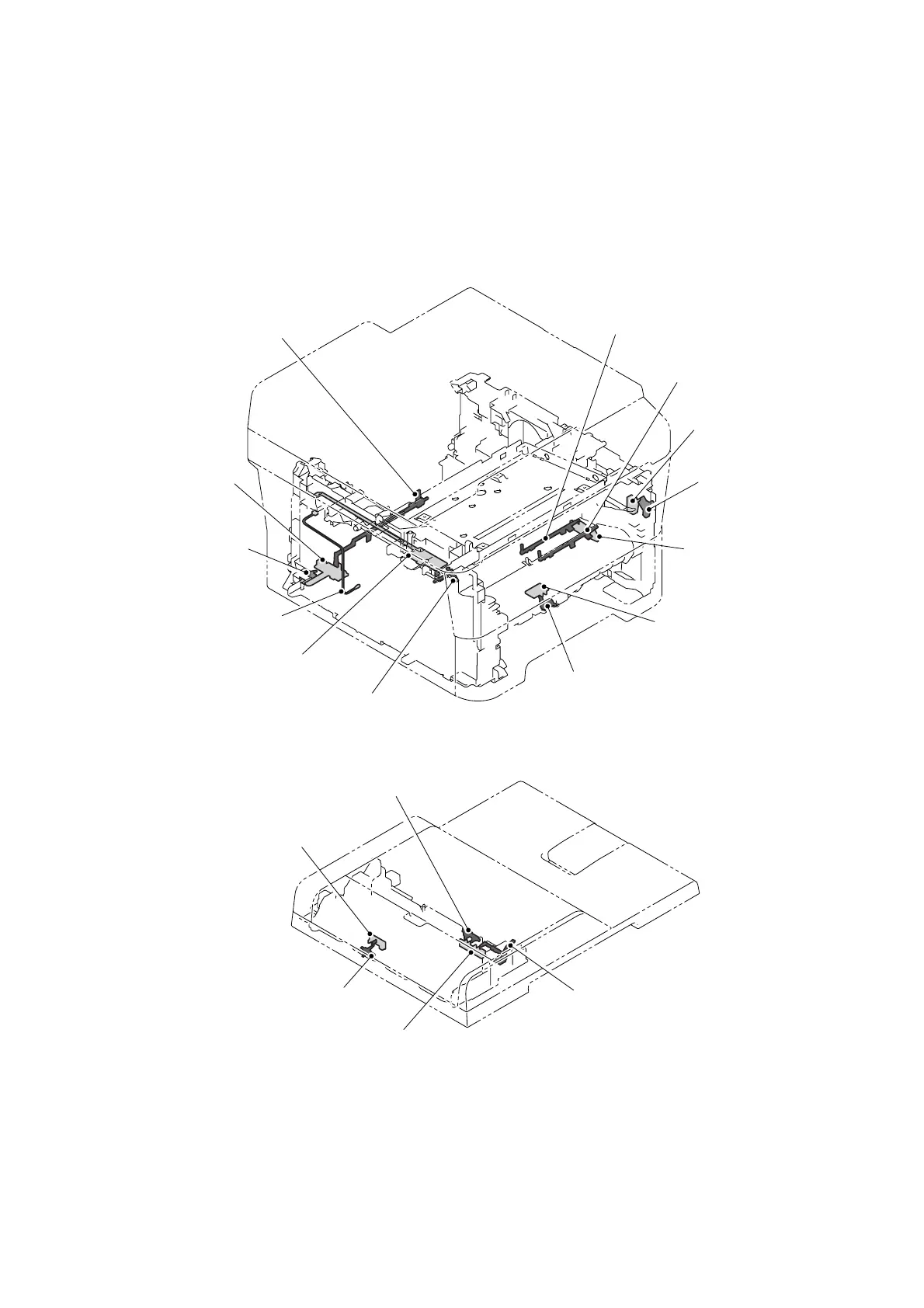

■ Location of sensors
Fig. 5-8
Fig. 5-9
Registration rear actuator
Registration front actuator
Registration
sensor PCB
New toner sensor PCB ASSY
Internal temperature sensor
Front cover actuator
Front cover sensor
Paper edge sensor
Paper edge actuator
New toner actuator
Back cover sensor/
Duplex tray sensor
Paper eject sensor
Paper eject actuator
ADF cover open actuator
Document scanning position
detection sensor
Document detection / ADF cover open sensor
Document scanning
position actuator
Document detection actuator

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
