Brother MFC-7365DN Service Manual

2-5
Confidential

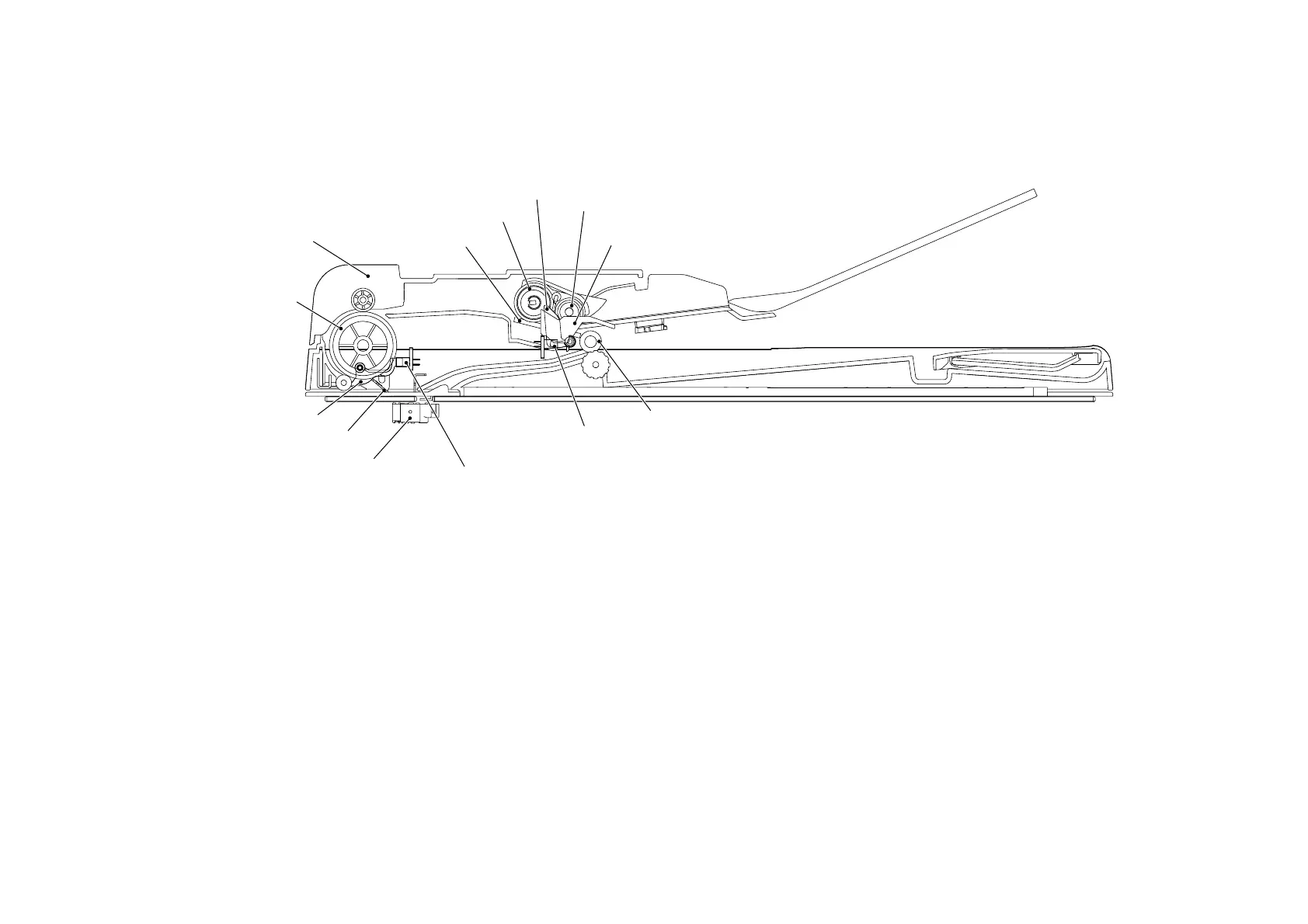

■ ADF part
Fig. 2-3
ADF cover
Document detection actuator
Document pull-in roller
ADF cover open actuator
Document separation roller
Separation rubber
Document feed roller
Document scanning
position detection actuator
Document scanning position detection sensor
Document detection sensor (rear side)
ADF cover open sensor (front side)
Document ejection roller
CIS unit
Document hold ASSY
<Left Side>
<Right Side>

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
