Brother MFC-J285DW Service Manual

3-49
Confidential

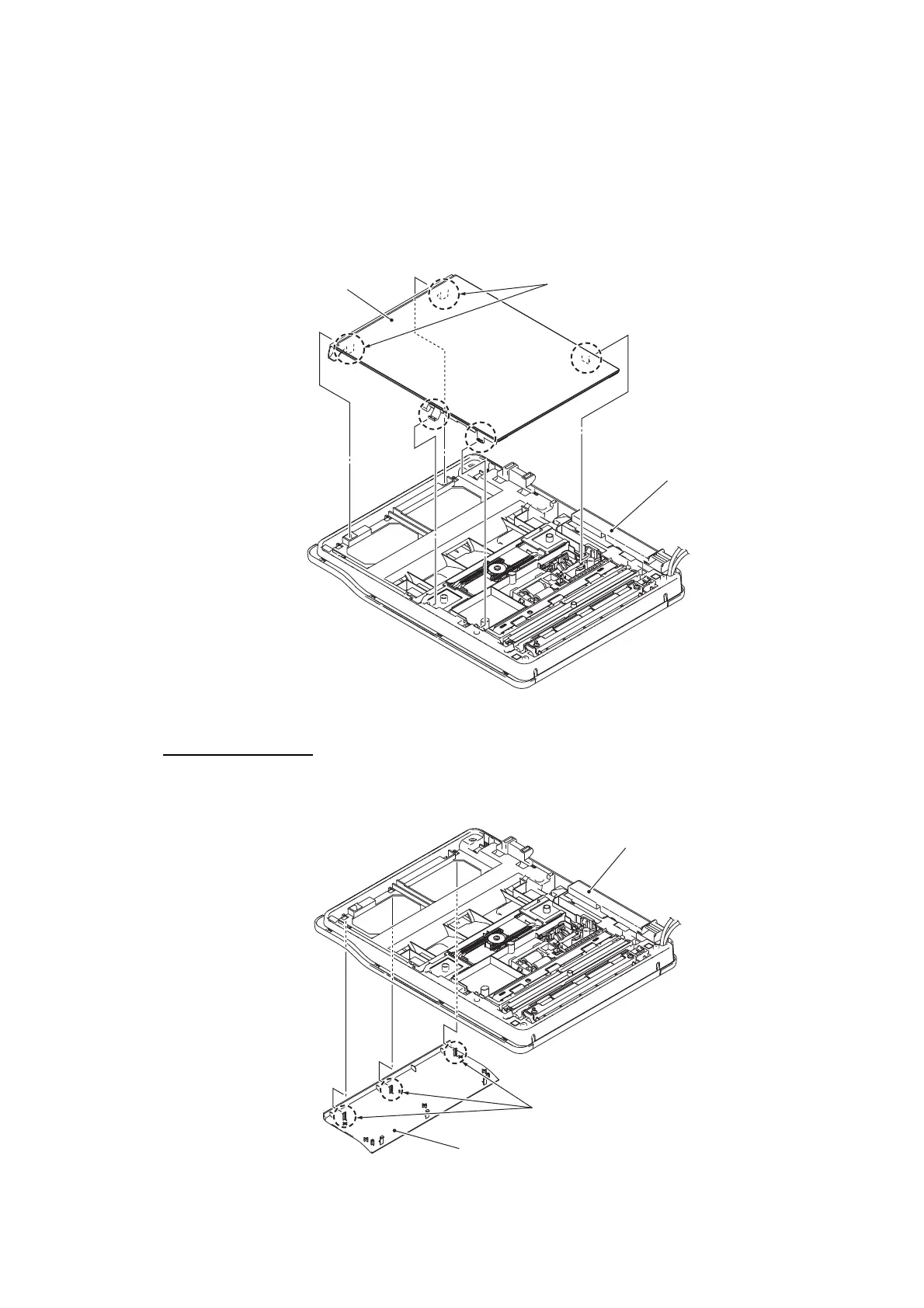

9.6 Component on the ADF Unit (For ADF Models Only)
(1) Turn the ADF unit upside down.
(2) Using the tip of a flathead screwdriver, remove the three latches of the document sponge ASSY
by lightly pressing them inwards.
(3) Release the two hooks of the document sponge ASSY and remove it from the ADF unit.
ADF top cover center
(4) Release three hooks and remove the ADF top cover center from the ADF unit.
(3_062)
Hook
Document sponge ASSY
ADF unit
Latch
Latch
Latch
(Front)
(Rear)
(Left)
(3_063)
ADF unit
Hook
ADF top cover center
(Rear)
(Front)
(Left)
