Brother MFC-J285DW Service Manual

4-13
Confidential
2.4 Adjust the Head/carriage Unit Inclination
Before starting the procedure below, make sure to set the recording paper in the paper tray for
printing check patterns.
(1) Perform Chapter 5 "1.3.22 Move of the Head/Carriage Unit to the Adjustment Position, and
Check of the Pressure Roller Release Operation (Maintenance mode 63)" to move the head/
carriage unit to an adjusted position.
(2) Open the document scanner unit.

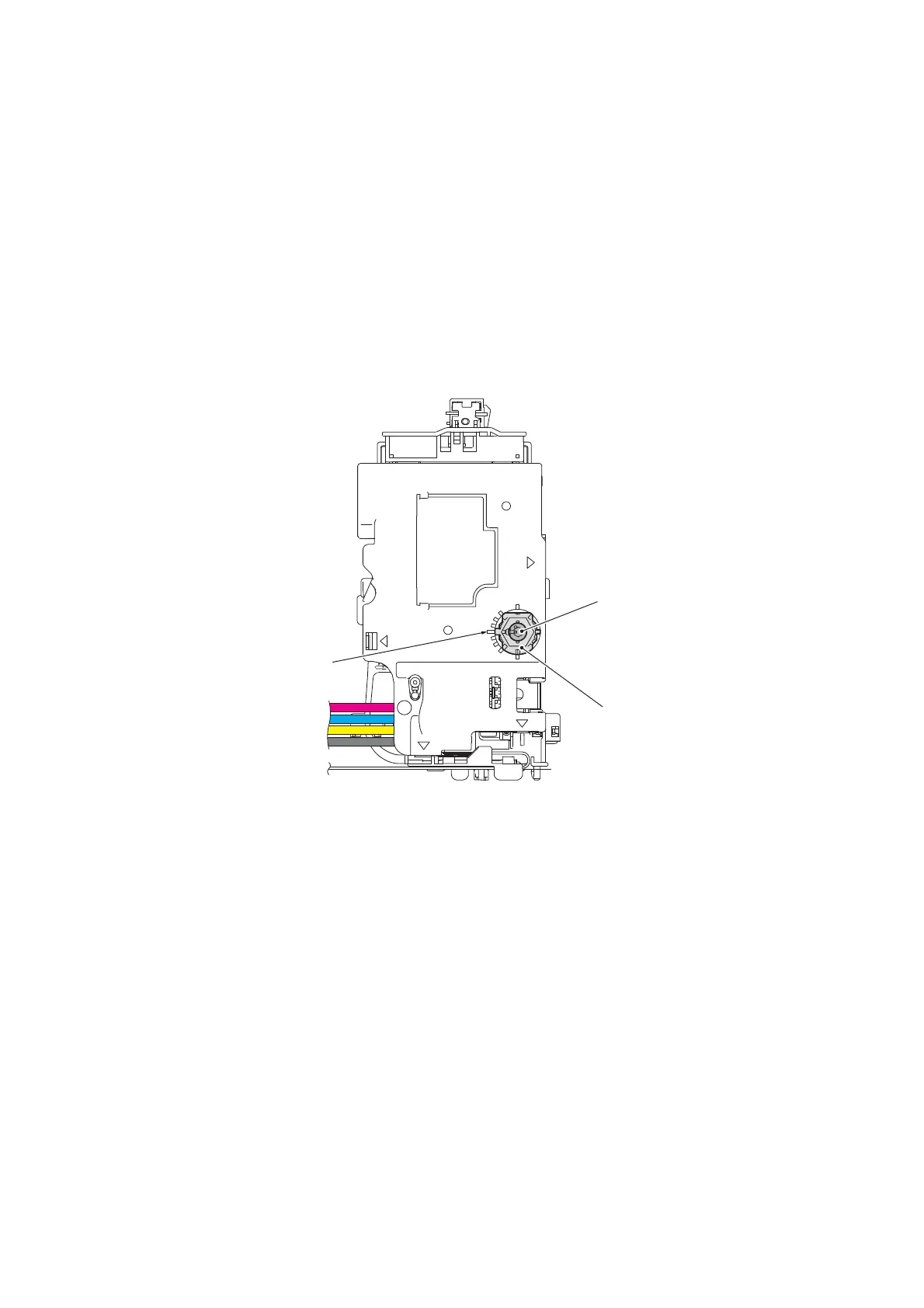

(3) Using a spanner and an Allen wrench, place the head/carriage unit in the center with the
external and internal inclination adjuster knob as shown in the diagram below.
Note Perform the adjustment by moving the head/carriage unit to the left edge which is the
adjusted position. If you adjust it to another location, the CR frame may be subjected to strain.
(4) Close the document scanner unit.
(5) Save incline_BHmini13.prn in a USB flash memory or SD card using your PC.
(6) Use Chapter 5 "1.3.21 Printout of PRN/JPEG Files in Memory Card (Maintenance Mode 61)"
in this chapter to print test patterns on A4 or letter paper.
Tip The test patterns can also be printed by opening [Filedrgs] on your PC and dragging &
dropping the above files onto the Brother Maintenance USB Printer driver icon.
JGCFARQUKVKQPA
Inclination adjuster knob
(internal)
Inclination adjuster knob
(external)
Center position

Brother MFC-J285DW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Economical printing	Yes
Print speed (ISO/IEC 24734) mono	12 ipm
Print speed (ISO/IEC 24734) color	10 ipm
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
N-in-1 copy function (N=)	2, 4
Scan to	E-mail, File, Image, OCR
Scanner type	Flatbed scanner
Image formats supported	BMP, JPG, PCX, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	HTM, PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	170 pages
Modem speed	14.4 Kbit/s
Fax transmission speed	7 sec/page
Digital sender	-
Maximum duty cycle	2500 pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	50 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Glossy paper, Photo paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Photo paper sizes (imperial)	4x6, 5x7, 5x8 \
Paper tray media weight (imperial)	4 - 6 lbs
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	1.8 \
Market positioning	Home & office
Ethernet LAN	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	SSID, WEP, WPA-PSK, WPA2-PSK
Online services supported	Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa, Sky Drive
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Sound pressure level (copying)	50 dB
AC input voltage	100 - 120 V
AC input frequency	50 - 60 Hz
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR
Package depth	457 mm
Package width	477 mm
Package height	228 mm
Package weight	9380 g
Storage temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	373 mm
Width	409 mm
Height	160 mm
