9.21 Ink Cartridge Cover Sensor ASSY
(1) Release the wiring of the ink cartridge cover sensor ASSY.
(2) Release the latch using a flathead screwdriver and take out the ink cartridge cover sensor ASSY
from the front right side of the lower cover.

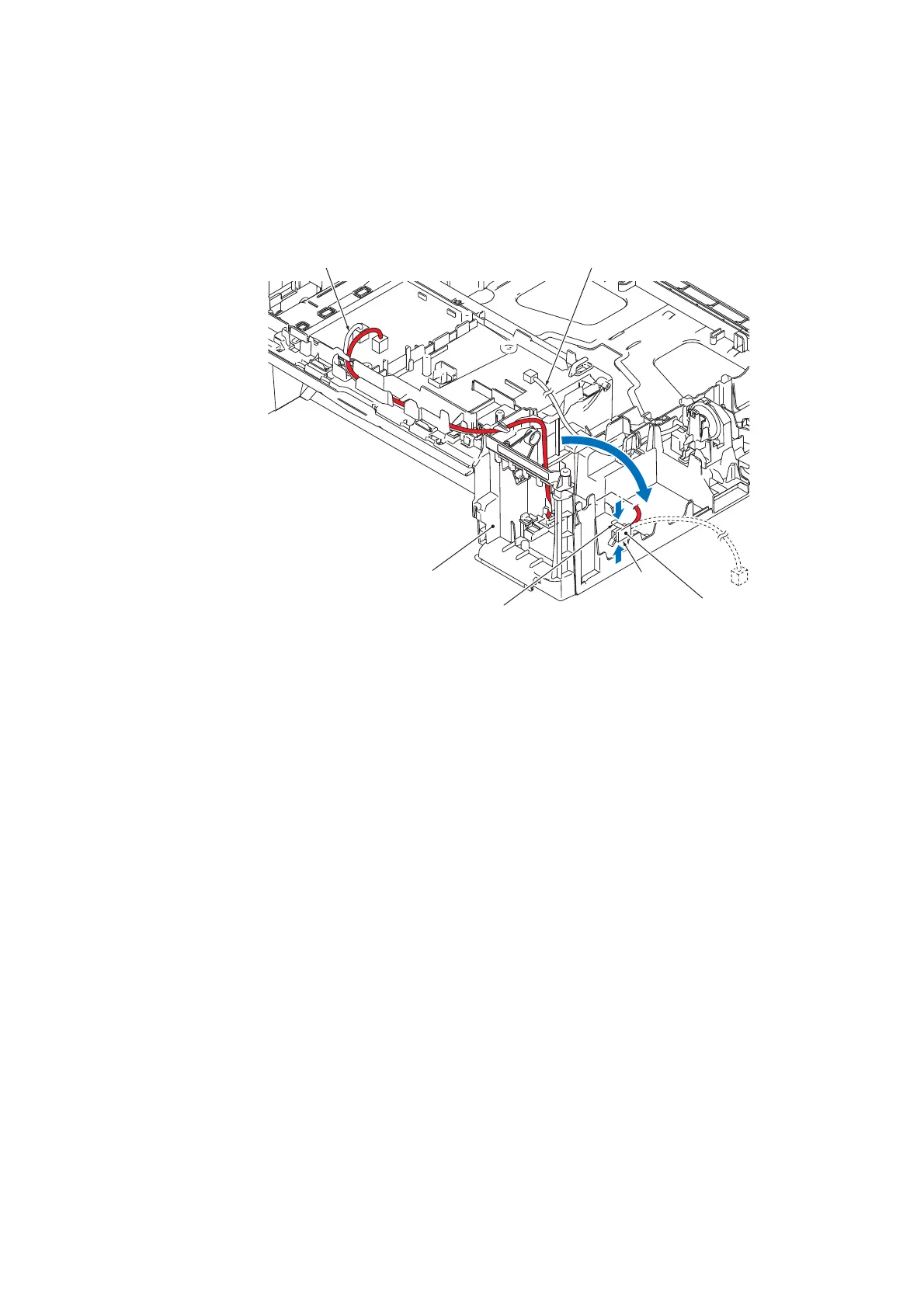

(3_116)
Ink cartridge cover
sensor ASSY
(Front)
Lower cover
Disc guide sensor harness
Speaker harness
(Right)
Latch
Latch
