Brother MFC-J285DW Service Manual

5-53
Confidential
1.3.25 Updating of Head Property Data and Backup/Restoration of Head Calibration Data
(Maintenance mode 68)
<Function>
Maintenance code 68 provides two types of procedures: one for "updating the head property data"
and the other for "backing up the head calibration data and restoring it".
Updating the head property data
To maintain print quality, the machine optimizes the drive conditions of individual head/carriage
units according to their property data.
Head property data is stored in the EEPROM on the main PCB and its property code is printed on
the property labels attached to the head/carriage unit.
If you replace the head/carriage unit, you need to enter its property code printed on the new property
label (pasted on the spare part), following the procedure below using maintenance code 68.
Head calibration data backup/restoration procedures
In maintenance code 68, the procedure backs up the head calibration data into an external memory
(memory card or USB flash memory) and restores it to the machine.
<Operating Procedure>
Updating the head property data
(1) Press the [6] and [8] keys in this order in the initial stage of the maintenance mode.
(2) Press the [2], [5], [8], and [0] keys in this order.
The current property data stored in the EEPROM appears on the LCD and the machine is ready
for entry.
(3) With the scanner cover open, check the property label pasted on the back of the upper cover,
and enter the property code.
The code to be entered is 10 digits excluding the heading "ALR".

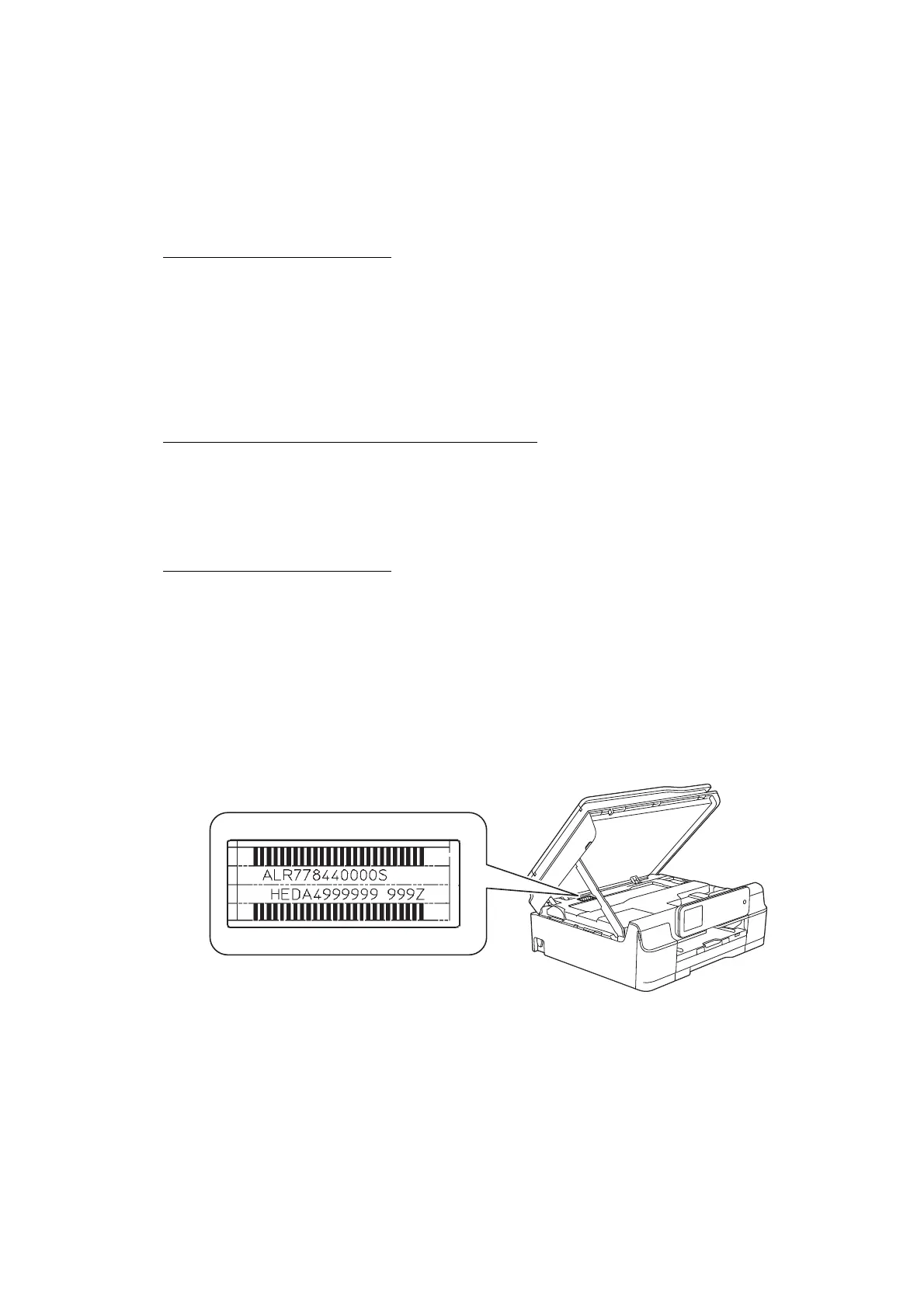

Tip The illustration above shows where to affix the head property label.
(4) After entering the 10 digits, press the [SET] or [OK] key.
The machine displays "INPUT ACCEPTED" on the LCD and writes the entered head property
code into the EEPROM.
It then returns to the initial stage of the maintenance mode.
Note If the entered data contains any checksum error, the machine shows "Input Error" and
becomes ready to accept entry. Go back to step (3) and re-enter.
(5_001)

Brother MFC-J285DW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Economical printing	Yes
Print speed (ISO/IEC 24734) mono	12 ipm
Print speed (ISO/IEC 24734) color	10 ipm
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
N-in-1 copy function (N=)	2, 4
Scan to	E-mail, File, Image, OCR
Scanner type	Flatbed scanner
Image formats supported	BMP, JPG, PCX, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	HTM, PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	170 pages
Modem speed	14.4 Kbit/s
Fax transmission speed	7 sec/page
Digital sender	-
Maximum duty cycle	2500 pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	50 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Glossy paper, Photo paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Photo paper sizes (imperial)	4x6, 5x7, 5x8 \
Paper tray media weight (imperial)	4 - 6 lbs
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	1.8 \
Market positioning	Home & office
Ethernet LAN	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	SSID, WEP, WPA-PSK, WPA2-PSK
Online services supported	Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa, Sky Drive
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Sound pressure level (copying)	50 dB
AC input voltage	100 - 120 V
AC input frequency	50 - 60 Hz
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR
Package depth	457 mm
Package width	477 mm
Package height	228 mm
Package weight	9380 g
Storage temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	373 mm
Width	409 mm
Height	160 mm
