Brother MFC-J285DW Service Manual

3-73
Confidential
9.17 Ink Absorber Box and Ink Absorber Felt (for the ink refill ASSY)
Note • Do not remove the ink absorber box unless it needs to be replaced.
(1) Pull out the main drain tube and air vent tube from the ink absorber box.
Note
• Pinch the end of the main drain tube with a clip in order to prevent drained ink from
leaking and the machine from getting stained with leaked ink.
• Do not place a pulled out tube on top of the main PCB. If the PCB gets stained with ink,
wipe it off with a clean, dry cloth.
(2) Remove the ink absorber box from the lower cover and install the new one immediately.
Note
• When replacing the tube with a new one, pull the main drain tube from the joint at the back
of the maintenance unit and immediately insert and connect a new tube into the joint and
ink absorber box.
• If the ink absorber box and surrounding parts gets stained with ink, wipe it off with a waste
cloth.
(3) Take the ink absorber felt (for the ink refill ASSY) out of the lower cover.

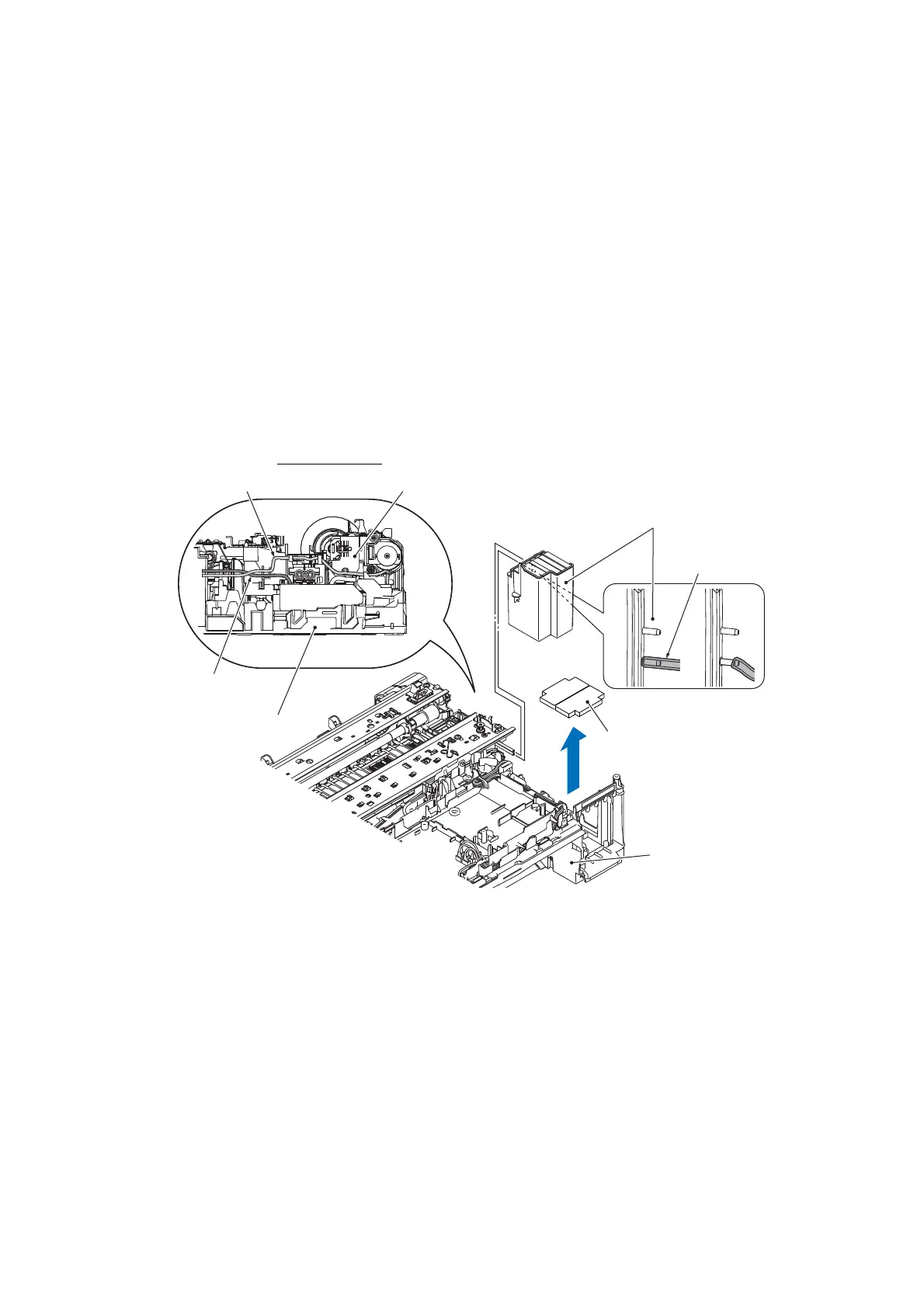

(3_100)
View from the right
ASF drive ASSY
Main drain tube
Air vent tube
Maintenance unit
Ink absorber box
Lower cover
Do not connect the main
drain tube at an angle.
Connect it firmly all the
way inside.
Ink absorber felt
(for the ink refill ASSY)

Brother MFC-J285DW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Economical printing	Yes
Print speed (ISO/IEC 24734) mono	12 ipm
Print speed (ISO/IEC 24734) color	10 ipm
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
N-in-1 copy function (N=)	2, 4
Scan to	E-mail, File, Image, OCR
Scanner type	Flatbed scanner
Image formats supported	BMP, JPG, PCX, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	HTM, PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	170 pages
Modem speed	14.4 Kbit/s
Fax transmission speed	7 sec/page
Digital sender	-
Maximum duty cycle	2500 pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	50 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Glossy paper, Photo paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Photo paper sizes (imperial)	4x6, 5x7, 5x8 \
Paper tray media weight (imperial)	4 - 6 lbs
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	1.8 \
Market positioning	Home & office
Ethernet LAN	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	SSID, WEP, WPA-PSK, WPA2-PSK
Online services supported	Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa, Sky Drive
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Sound pressure level (copying)	50 dB
AC input voltage	100 - 120 V
AC input frequency	50 - 60 Hz
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR
Package depth	457 mm
Package width	477 mm
Package height	228 mm
Package weight	9380 g
Storage temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	373 mm
Width	409 mm
Height	160 mm
