Brother MFC-J285DW Service Manual

3-72
Confidential
Note • Do not remove the protective part. Doing so in this state will make the ink inside the ink
tubes flow out.
• The ink absorber felt (for the ink refill ASSY) attached to the bottom of the ink refill
ASSY may get stained with ink. If there is a significant stain, replace the ink absorber felt.
Assembling Note
• When attaching the tube clamps to the ink supply tubes, view the machine from the front, attach
the right tube clamp (1) to magenta, bind cyan and yellow, attach the left tube clamp (2) to black,
and bind yellow and cyan (refer to the illustration on the previous page).
• Attach the tube clamp by aligning it to the dented part of the tube support plate shown in the
illustration in the previous page.
• After installing the ink refill ASSY, route the ink supply tubes to the tube guide based on the color
order described in the previous page without overlapping. Next, set it into the sponge and route it
to the tube support wire elbow.

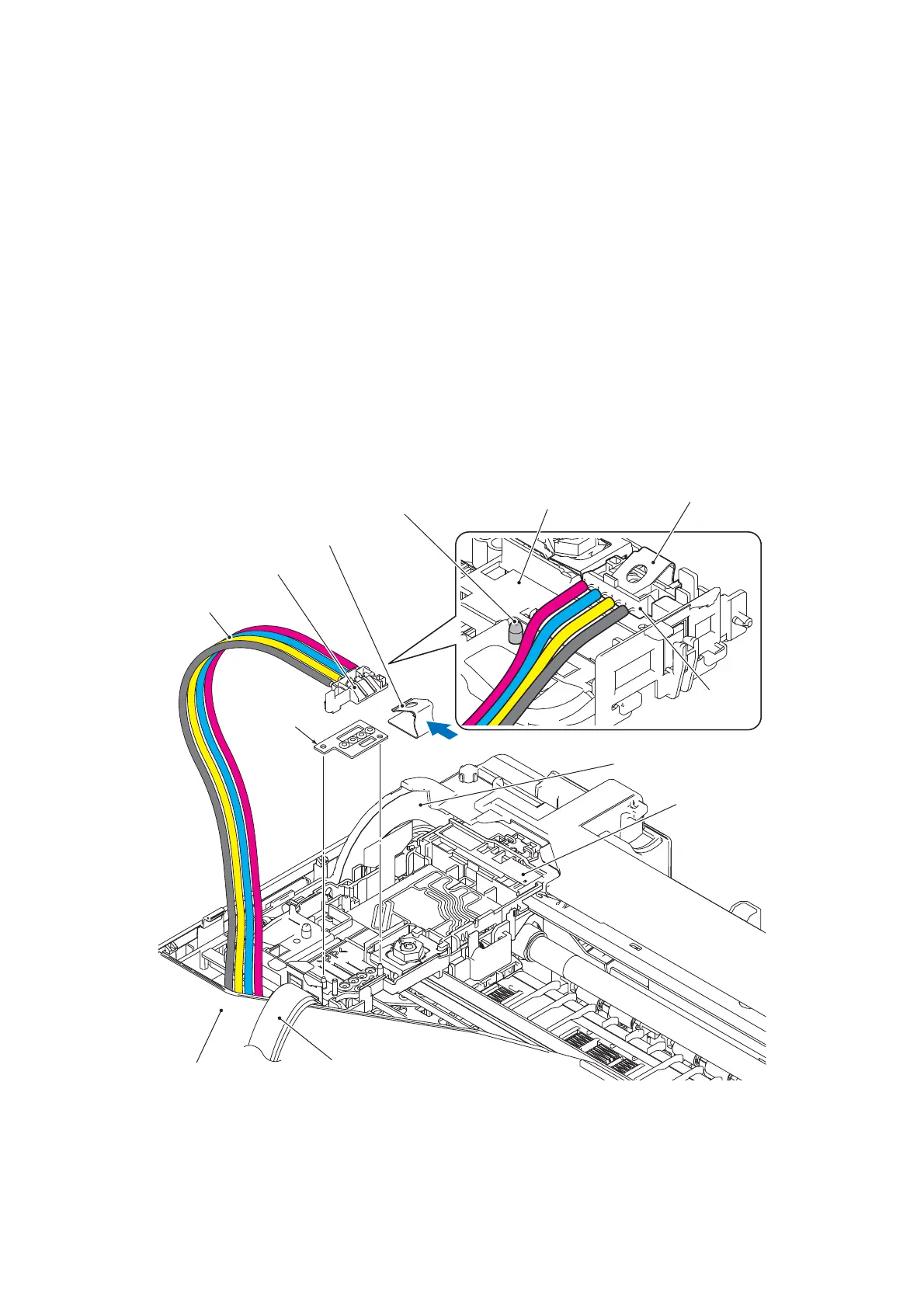

• Attach the head joint to the head/carriage unit using the joint spring as shown below. Make sure
that all of the four ink supply tubes are routed in front of the guide boss.
(3_097)
Head/carriage unit
Head joint spring
Head joint
Head joint
rubber
Ink supply tubes
Upper cover
Carriage flat cable
PF encoder disk
Head joint
Head joint spring
Guide boss
Head/carriage unit

Brother MFC-J285DW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Economical printing	Yes
Print speed (ISO/IEC 24734) mono	12 ipm
Print speed (ISO/IEC 24734) color	10 ipm
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
N-in-1 copy function (N=)	2, 4
Scan to	E-mail, File, Image, OCR
Scanner type	Flatbed scanner
Image formats supported	BMP, JPG, PCX, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	HTM, PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	170 pages
Modem speed	14.4 Kbit/s
Fax transmission speed	7 sec/page
Digital sender	-
Maximum duty cycle	2500 pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	50 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Glossy paper, Photo paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Photo paper sizes (imperial)	4x6, 5x7, 5x8 \
Paper tray media weight (imperial)	4 - 6 lbs
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	1.8 \
Market positioning	Home & office
Ethernet LAN	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	SSID, WEP, WPA-PSK, WPA2-PSK
Online services supported	Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa, Sky Drive
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Sound pressure level (copying)	50 dB
AC input voltage	100 - 120 V
AC input frequency	50 - 60 Hz
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR
Package depth	457 mm
Package width	477 mm
Package height	228 mm
Package weight	9380 g
Storage temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	373 mm
Width	409 mm
Height	160 mm
