Brother MFC-J285DW Service Manual

3-89
Confidential
PF encoder disk, PF encoder sensor PCB ASSY, and PF/registration sensor harness ASSY
*
* The PF/registration sensor harness ASSY consists of a PF encoder sensor
harness and registration sensor harness.
(10) If the PF encoder disk needs to be replaced, peel it off from the paper feed roller gear L.
Note
• Once removed, the PF encoder disk will become unusable and will have to be replaced
with a new one.
• Remove any adhesive remaining left on the paper feed roller gear L.
(11) Remove the screw of the SCREW BIND M2x10 then remove the PF encoder sensor PCB
ASSY.
If the PF encoder sensor harness has not been disconnected from the PCB in Step (7),
disconnect it to completely separate the PF/registration sensor harness ASSY from the engine
unit.
Assembling Note It is more convenient to use a spatula when attaching the PF encoder disk to the
paper feed roller gear L. Wear clean gloves to protect the disk surface from dust or fingerprints.

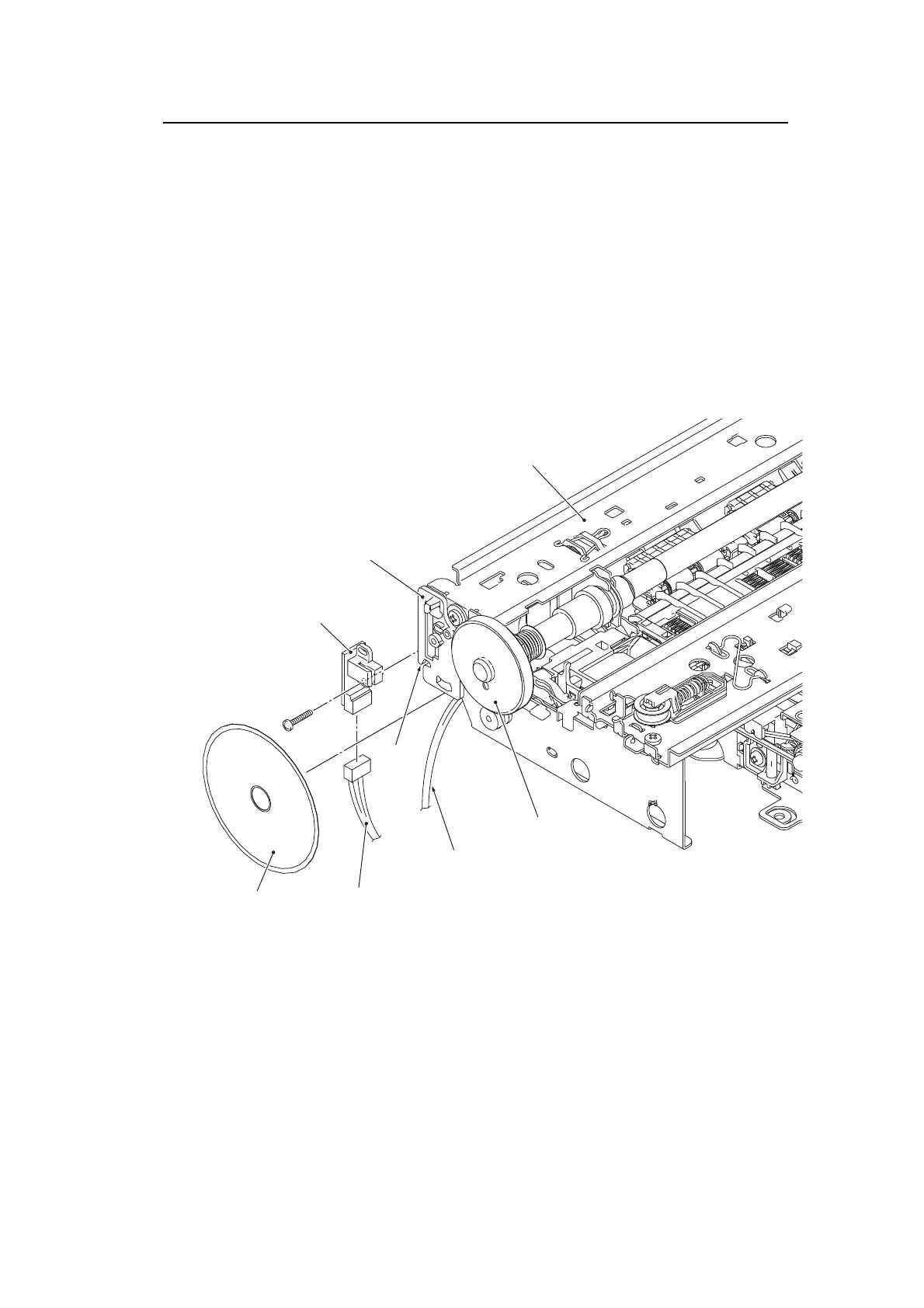

(3_114)
Engine unit
Encoder PCB support
PF encoder sensor PCB ASSY
SCREW BIND M2x10
(Left)
PF encoder disk
PF encoder sensor harness
(a part of the PF/registration sensor harness ASSY)
Paper feed motor harness
Paper feed roller gear L
Notch

Brother MFC-J285DW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Economical printing	Yes
Print speed (ISO/IEC 24734) mono	12 ipm
Print speed (ISO/IEC 24734) color	10 ipm
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
N-in-1 copy function (N=)	2, 4
Scan to	E-mail, File, Image, OCR
Scanner type	Flatbed scanner
Image formats supported	BMP, JPG, PCX, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	HTM, PDF
Optical scanning resolution	1200 x 2400 DPI
Faxing	Color faxing
Fax memory	170 pages
Modem speed	14.4 Kbit/s
Fax transmission speed	7 sec/page
Digital sender	-
Maximum duty cycle	2500 pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	50 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Glossy paper, Photo paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Photo paper sizes (imperial)	4x6, 5x7, 5x8 \
Paper tray media weight (imperial)	4 - 6 lbs
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	1.8 \
Market positioning	Home & office
Ethernet LAN	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	SSID, WEP, WPA-PSK, WPA2-PSK
Online services supported	Box, Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa, Sky Drive
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Sound pressure level (copying)	50 dB
AC input voltage	100 - 120 V
AC input frequency	50 - 60 Hz
Power consumption (average operating)	- W
Sustainability certificates	ENERGY STAR
Package depth	457 mm
Package width	477 mm
Package height	228 mm
Package weight	9380 g
Storage temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	373 mm
Width	409 mm
Height	160 mm
