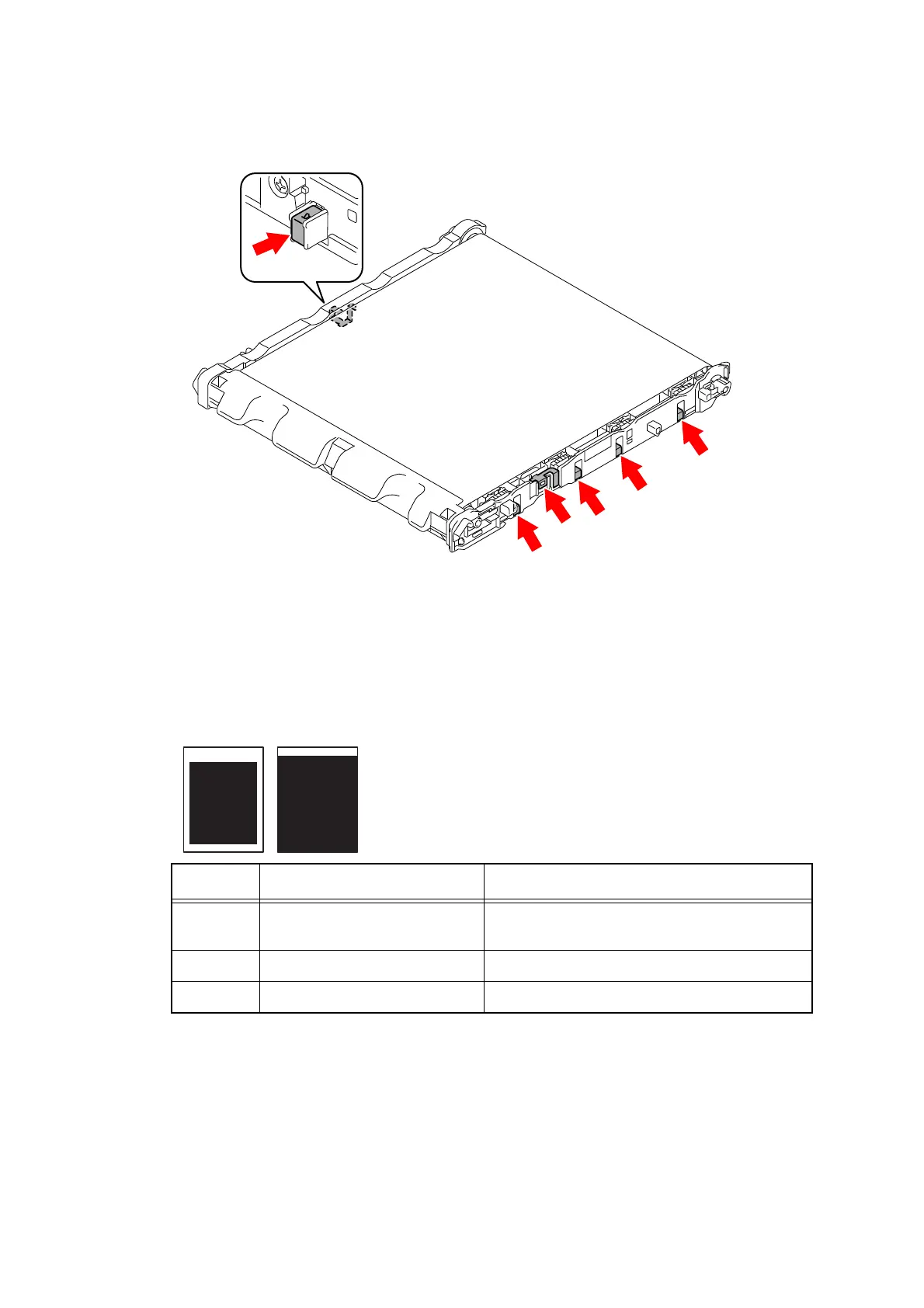

■ Electrodes location of belt unit
Fig. 2-11
■ Faulty registration
< User Check >
- Check whether appropriate paper type is selected on the
driver.
Step Cause Remedy
1 Registration rear actuator
coming off
Re-assemble the registration rear actuator.
2 Laser unit failure Replace the laser unit.
3 Main PCB failure Replace the main PCB ASSY.
