Brother MFC-L8850CDW Service Manual

2-6
Confidential

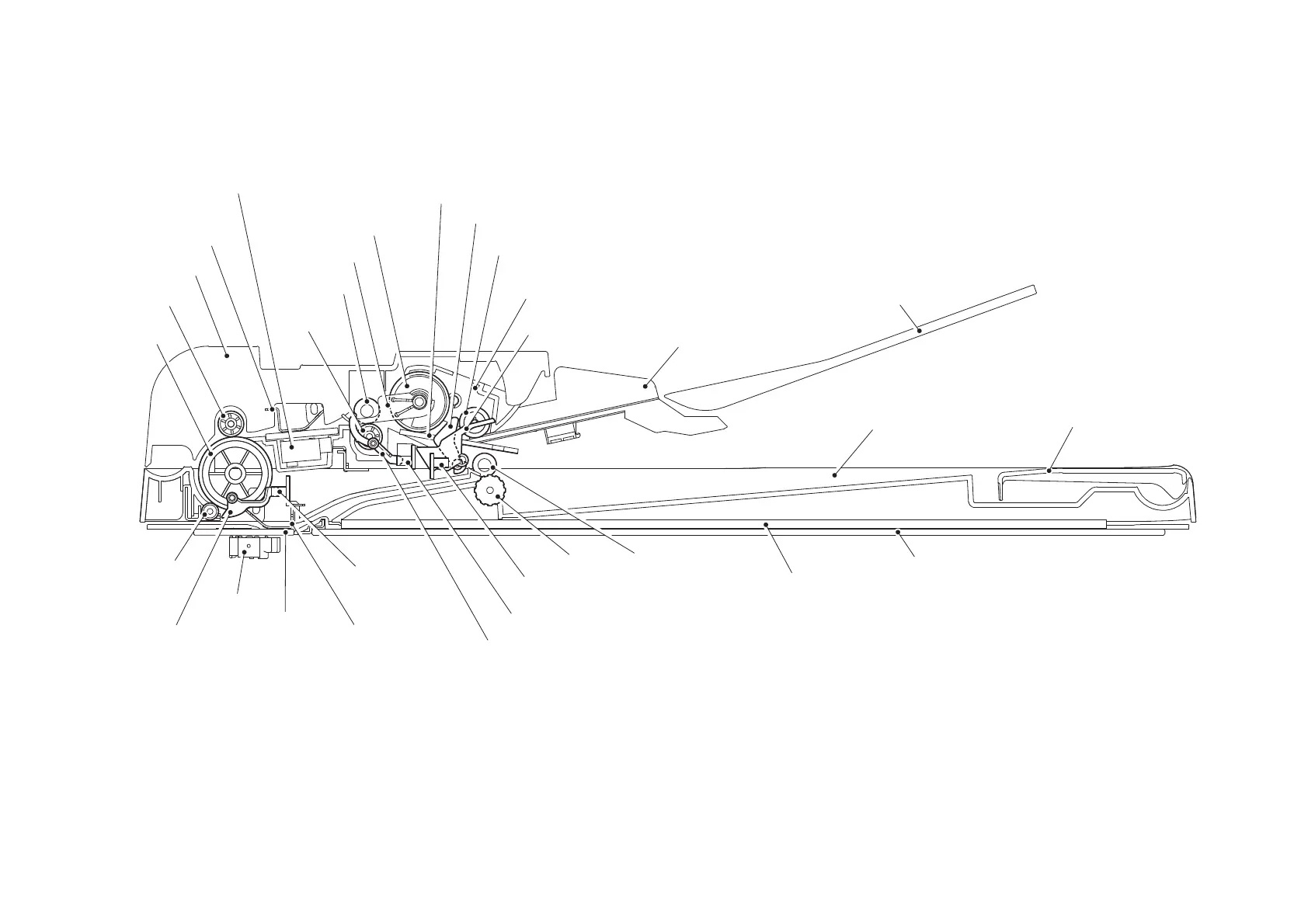

2.1.2 Scanning part
Fig. 2-2
<Right side>
<Left side>
Second side CIS unit
Second side
document hold
ADF cover
Document
pinch roller
Document
feed roller
ASSY2
Document
pinch roller
First side document
scanning position actuator
First side
CIS unit
First side
First side document
scanning position
sensor PCB
First side document hold
Second side document scanning position actuator
Second side document scanning position sensor PCB
ADF cover/document detection
sensor PCB
Exit pinch roller
Document ejection roller
Document sponge
Document glass
ADF document output support flap
Document cover
ADF document support
Document guide
ADF cover actuator
Document pick-up roller holder
Document pick-up roller
Document detection actuator
ADF separation pad
Document separate roller
Flap ADF
Document feed
roller ASSY1
Pressure
roller
(Duplex scanning model only)
CIS glass

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
