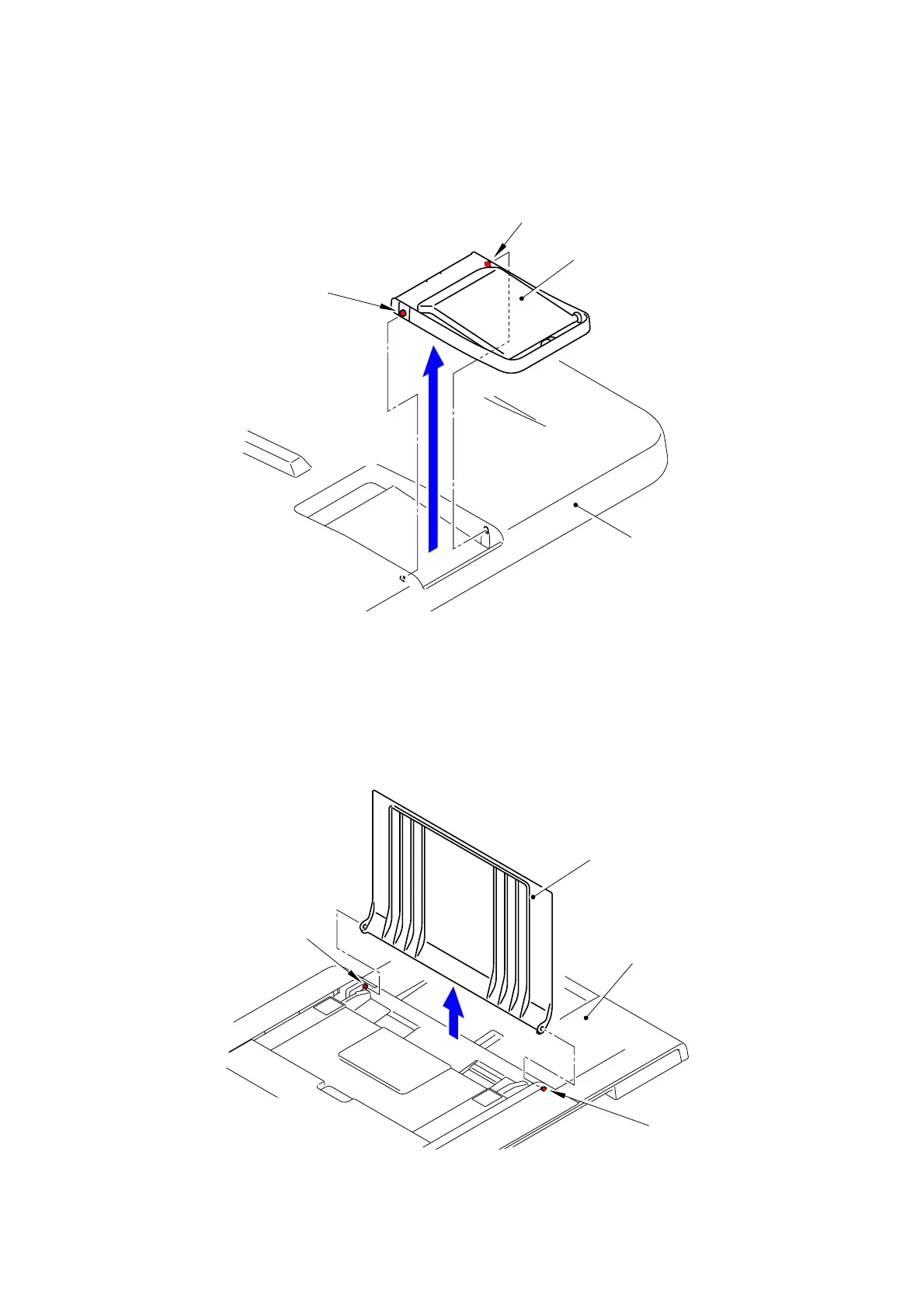

9.18 ADF Document Output Support Flap
(1) Turn the ADF unit right side up.
(2) Release the two Pins and remove the ADF document output support flap from the ADF unit.
Fig. 3-75
9.19 ADF Document Support
(1) Open the ADF document support.
(2) Release the two Pins and remove the ADF document support from the ADF unit.
Fig. 3-76
Pin
Pin
ADF document output support flap
ADF unit
Pin
Pin
ADF document support
ADF unit
