Brother MFC-L8850CDW Service Manual

3-123
Confidential
9.41 Joint Cover Top
■
A4 model

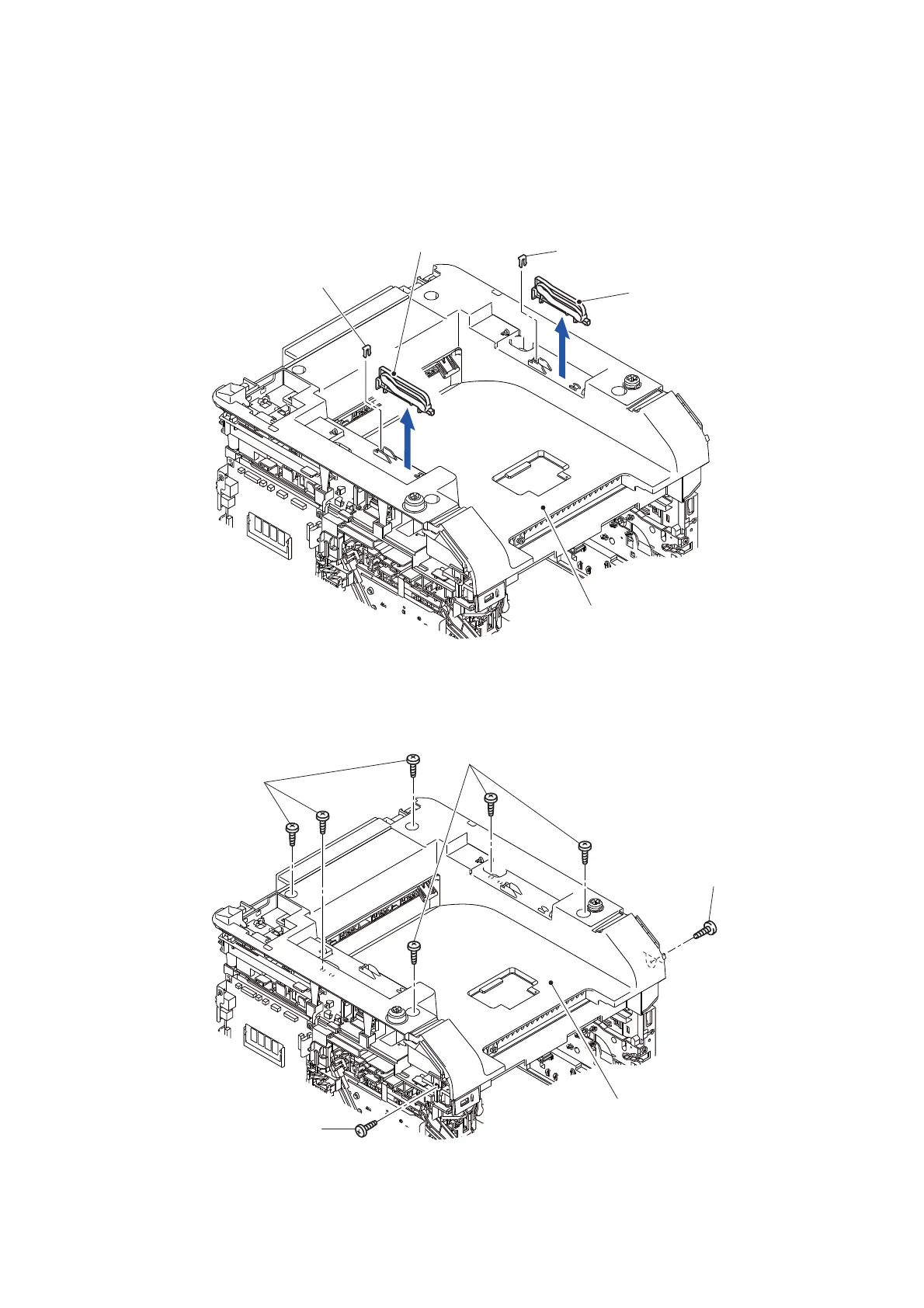

(1) Remove the Lock claw and remove the Pull arm guide from the Joint cover top.
Fig. 3-163
(2) Remove the eight Taptite bind B M4x12 screws from the Joint cover top.
Fig. 3-164
Lock claw
Lock claw
Pull arm guide
Pull arm guide
Joint cover top
Joint cover top
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
<Front side>
