Brother MFC-L8850CDW - Air Duct Film

3-185
Confidential
9.69 Air Duct Film
(1) Remove the Air duct film from the Main frame R ASSY by peeling off the Double-sided
adhesive tape.

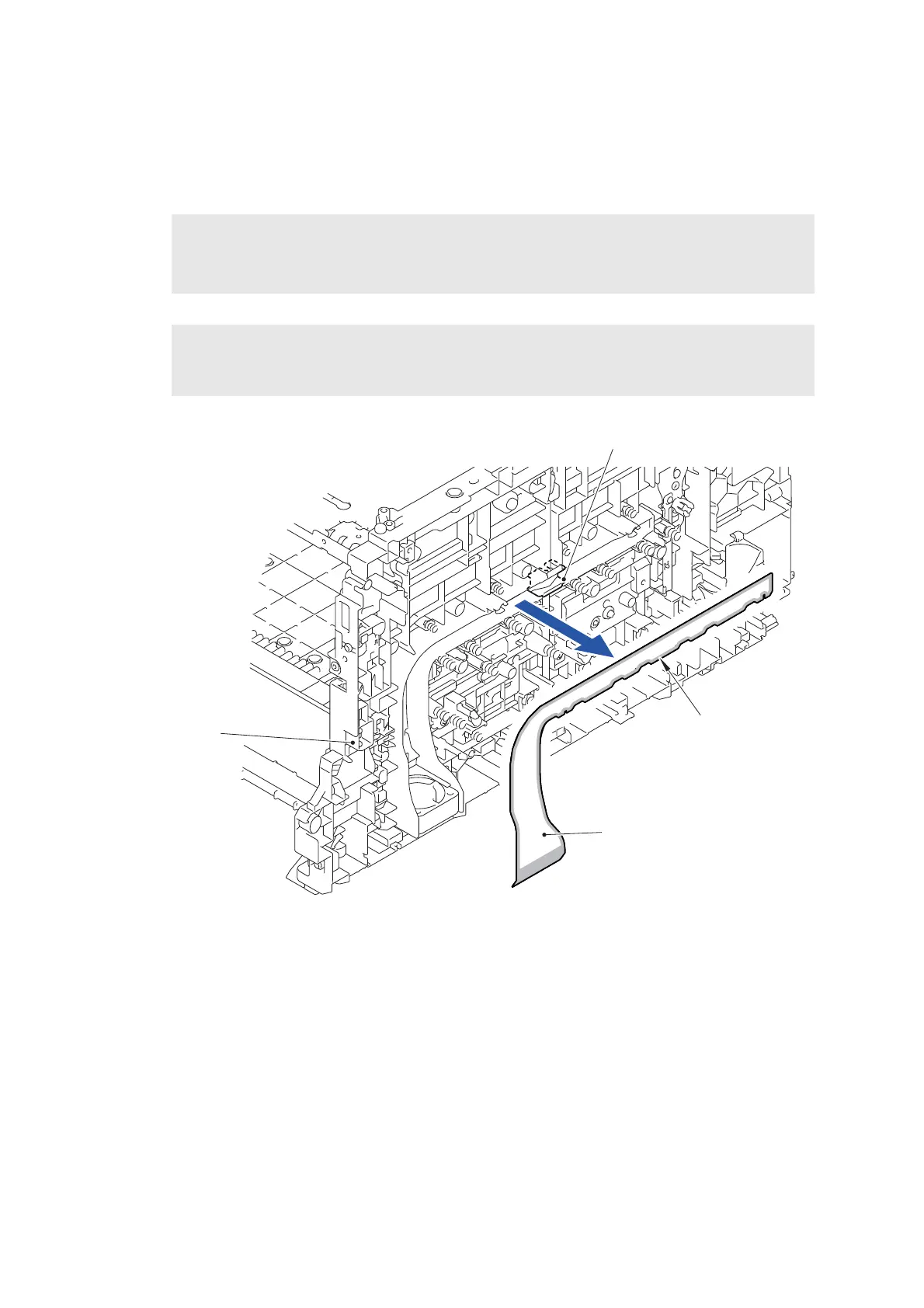

Fig. 3-270
Note:
- As the Air duct protector tends to come off, be careful not to lose it.
- When removing the Air duct film, replace the Air duct film with a new one.
Assembling Note:
When assembling the Air duct film to the Main frame R ASSY, affix it without making
clearance between the Air duct film and Main frame R ASSY.
Air duct film
Air duct protector
Double-sided adhesive tape
<Right side>
R ASSY
Main frame
