9.32 Document Cover ASSY
(1) Remove the three Document feed pinch roller spring shafts and three Document feed
pinch rollers from the Document cover ASSY.

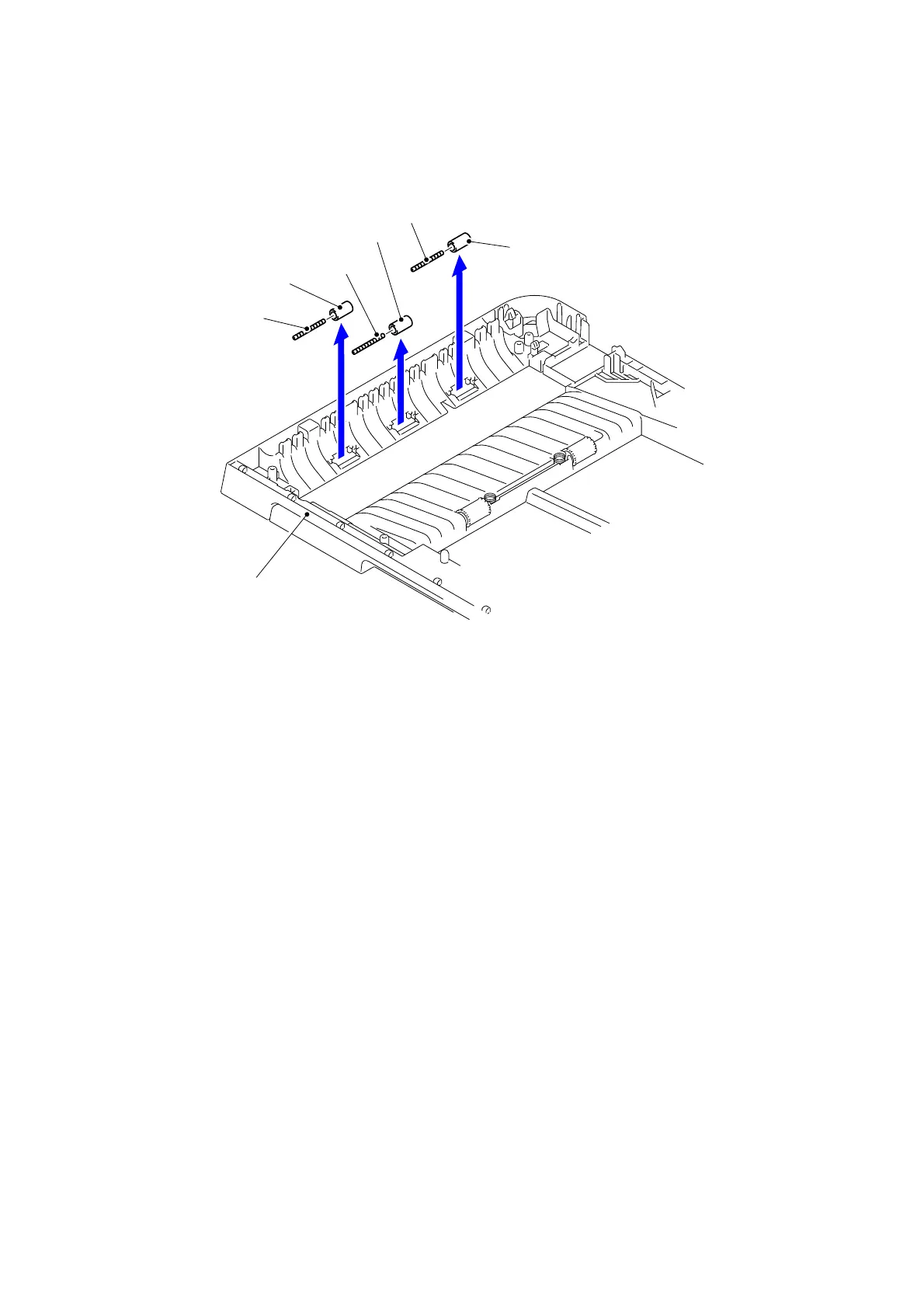

Fig. 3-134
Document cover ASSY
Document feed pinch roller spring shaft
Document feed pinch
Document feed pinch
Document feed pinch roller
Document feed pinch roller
Document feed pinch roller
roller spring shaft
roller spring shaft
