Brother MFC-L8850CDW - Eject Sensor PCB ASSY

3-160
Confidential
9.59 Eject Sensor PCB ASSY

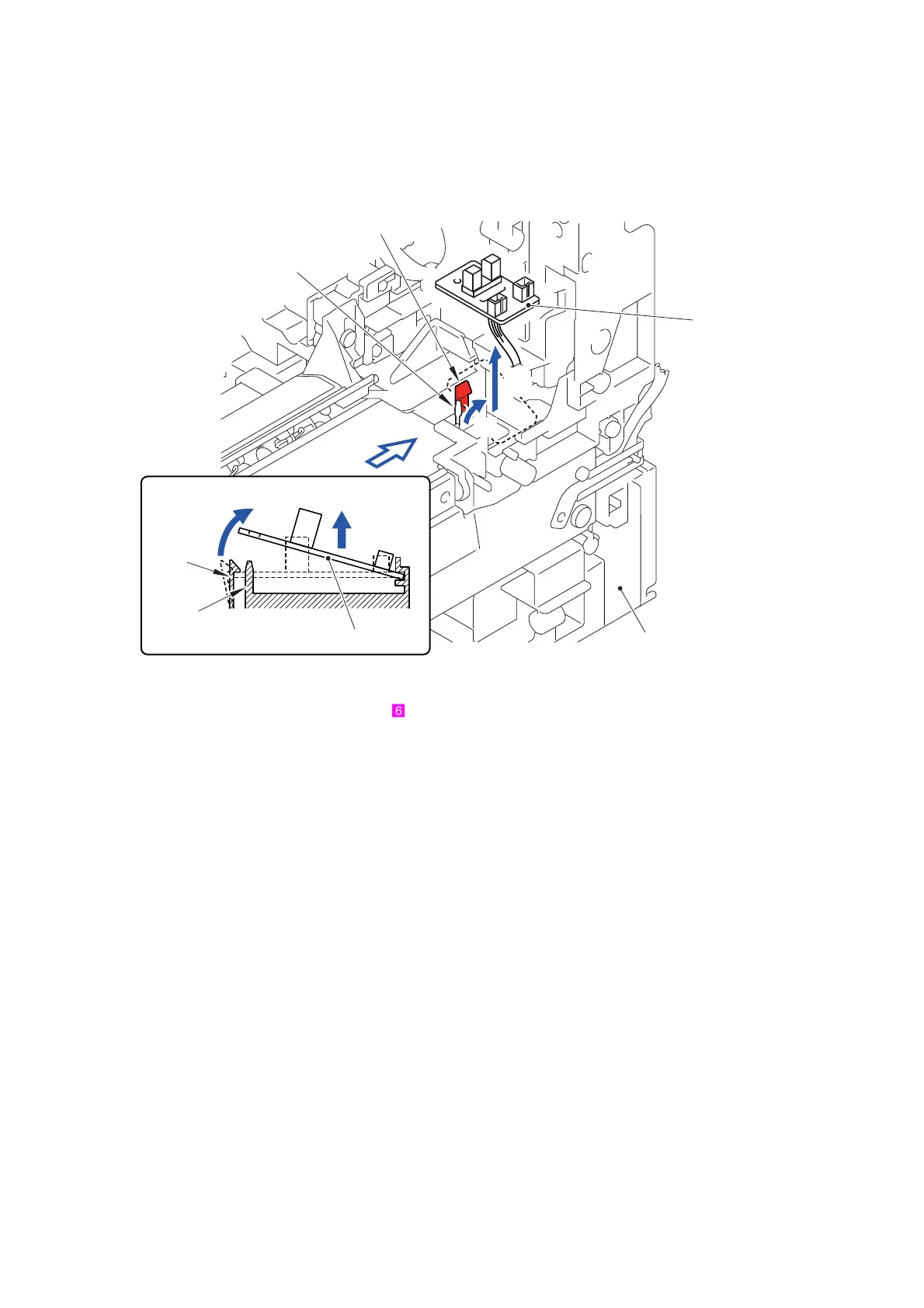

(1) Release the wiring of the Eject sensor PCB ASSY.
(2) Release the Hook and remove the Eject sensor PCB ASSY from the Main body.
Fig. 3-224
Harness routing: Refer to “ Eject Sensor PCB ASSY, Fuser Unit”
Hook
Eject sensor PCB ASSY
Main body
Pin
Hook
Pin
2a
2b
2a
2b
A view
<A view>
<Back side>
Eject sensor
PCB ASSY
