Brother MFC-L8850CDW Service Manual

3-139
Confidential
9.47 Laser Unit Flat Cable/Laser Unit

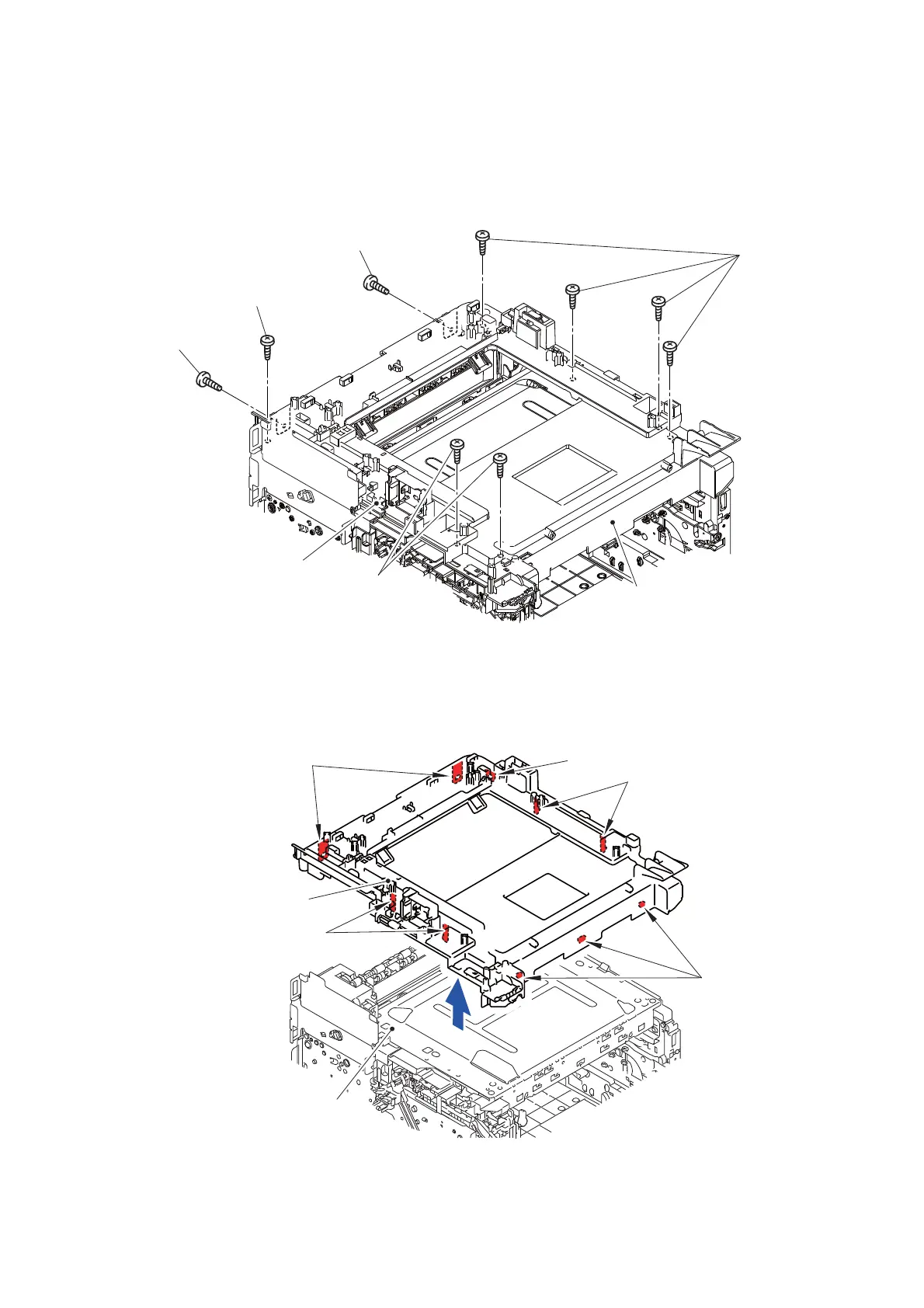

(1) Remove the seven Taptite bind B M4x12 screws from the Joint cover base ASSY.
(2) Remove the two Taptite bind B M4x12 screws from the back of the Joint cover base ASSY.
Fig. 3-189
(3) Release the three Hooks 1. Release the other seven Hooks and remove the Joint cover
base ASSY from the Main body.
Fig. 3-190
Taptite bind
Taptite bind B M4x12
Taptite bind
B M4x12
B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Joint cover base ASSY
Main body
<Front side>
Main body
Hook 1
Hook
Hook
Hook
Hook
Joint cover base ASSY
<Front side>

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
