Brother MFC-L8850CDW Service Manual

3-154
Confidential

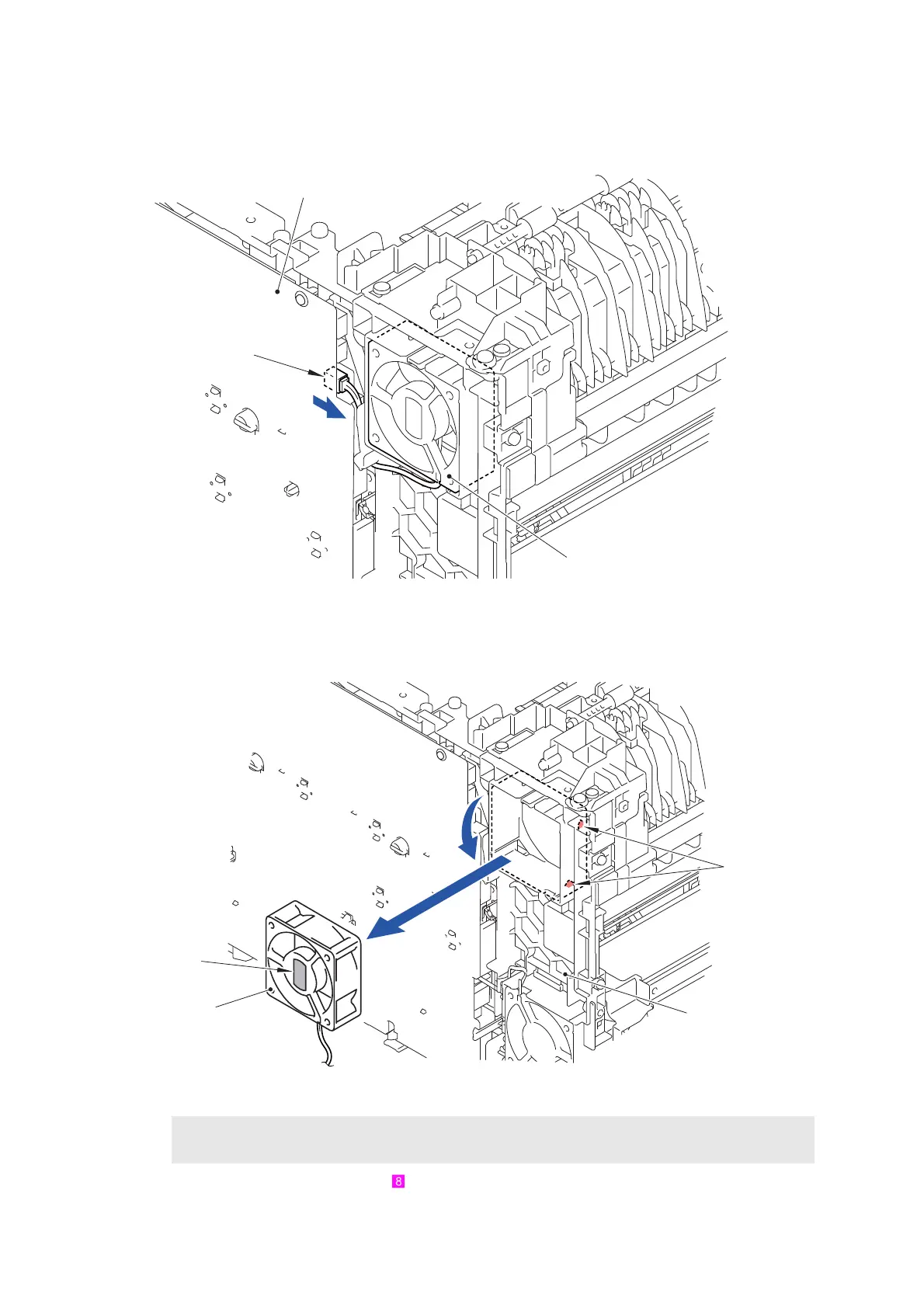

9.54 Fuser Fan
(1) Disconnect the Connector (CN4) from the High-voltage power supply PCB ASSY.
Fig. 3-214
(2) Slightly rotate the Fuser fan in the direction of the arrow 2a and pull it out from the Main
body.
Fig. 3-215
Harness routing: Refer to “ Fuser Fan, Power Fan”
Assembling Note:
When assembling the Fuser fan, be sure to assemble it in a way that the label side faces out.
CN4
High-voltage power supply PCB ASSY
<Right side>
Fuser fan
Main body
Label
Hook
2a
2b
<Right side>
Fuser fan
