Brother MFC-L8850CDW Service Manual

3-179
Confidential
9.67 T1 Paper Feed Sensor PCB ASSY

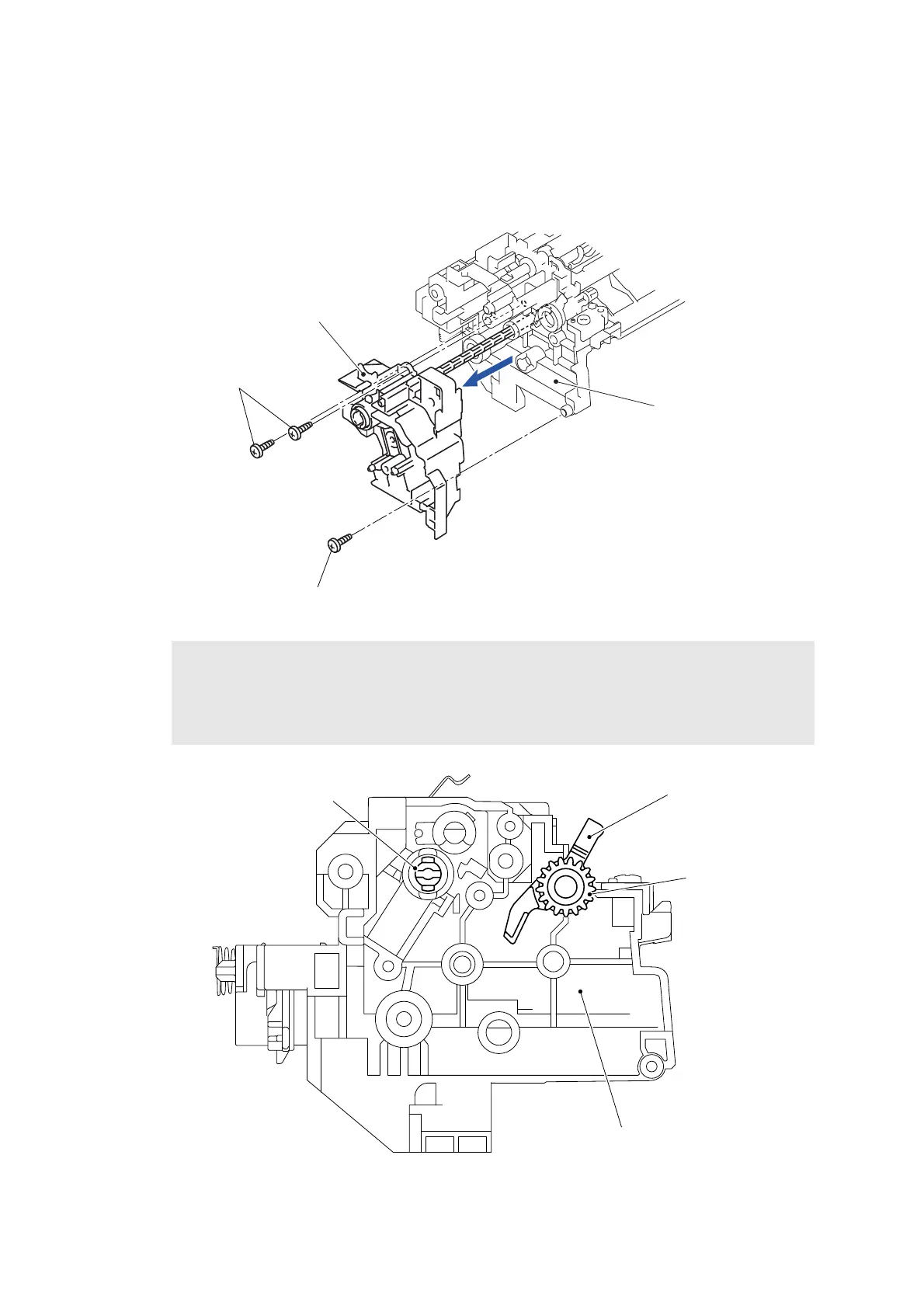

(1) Release all the wiring from the MP drive frame.
(2) Remove the three Taptite bind B M3x10 screws and remove the MP drive frame from the
Paper feed unit.
Fig. 3-259
Fig. 3-260
Note:
- As the MP drive shaft gear Z17M07, MP lift lever and Registration roller drive joint tend to
come off, be careful not to lose them.
- When the MP drive shaft gear Z17M07 and MP lift lever come off, assemble them as
shown in the figure.
MP drive frame
Taptite bind B M3x10
Paper feed unit
Taptite bind B M3x10
MP lift lever
Registration roller drive joint
Paper feed unit
MP drive shaft gear
Z17M07
