Brother MFC-L8850CDW - Page 344

3-180
Confidential

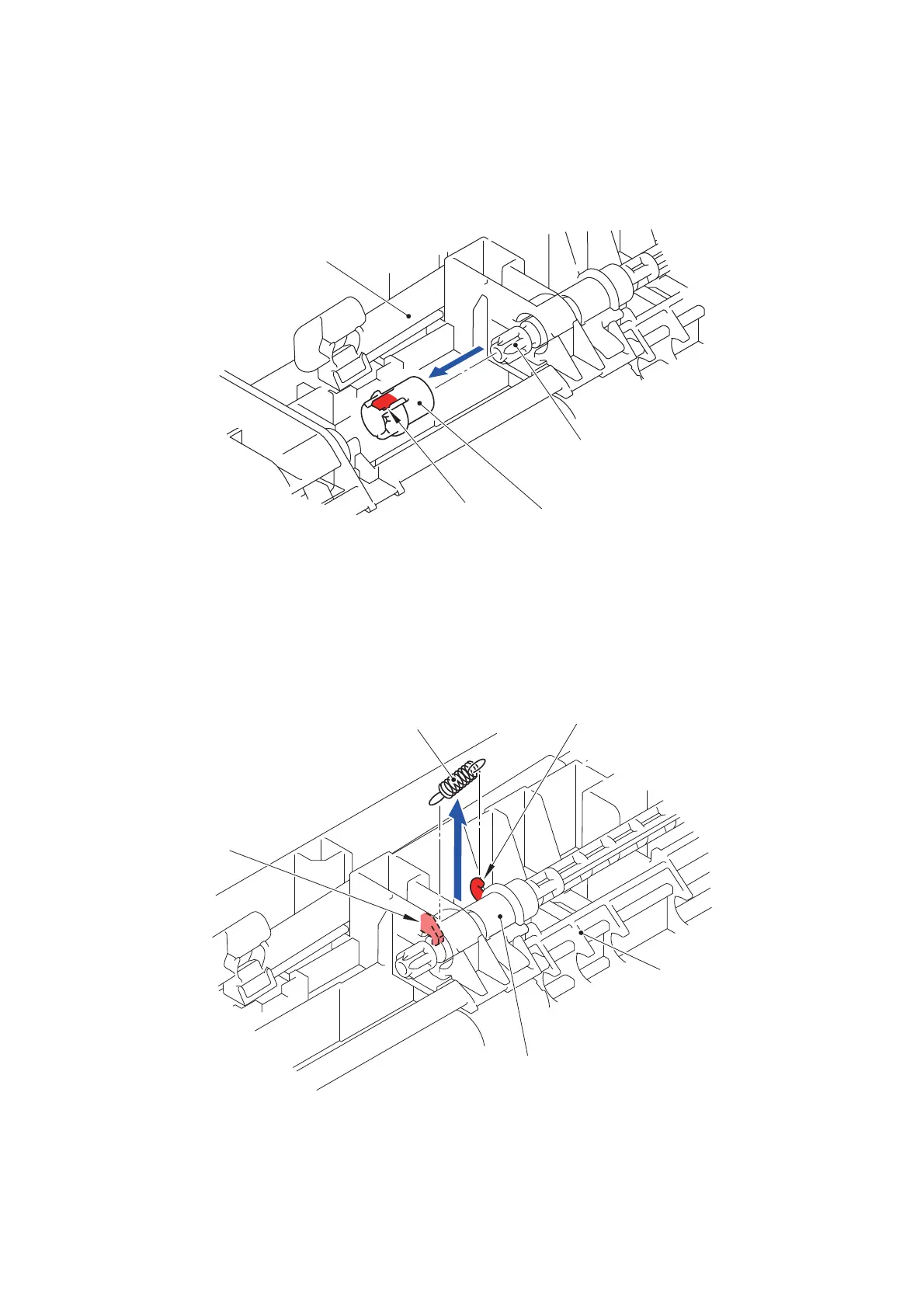

(3) Release the Hook and remove the Separation roller bushing from the T1 drive shaft gear
Z17M07.
Fig. 3-261
(4) Remove the Edge actuator spring from the Hook of the Paper feed unit and the Hook of
the Edge actuator.
Fig. 3-262
Hook
Paper feed unit
MP separation roller bushing
T1 drive shaft gear Z17M07
Hook
Hook
Paper feed unit
Edge actuator spring
Edge actuator
