Brother MFC-L8850CDW Service Manual

3-178
Confidential
9.66 Registration Front/Rear Sensor PCB ASSY

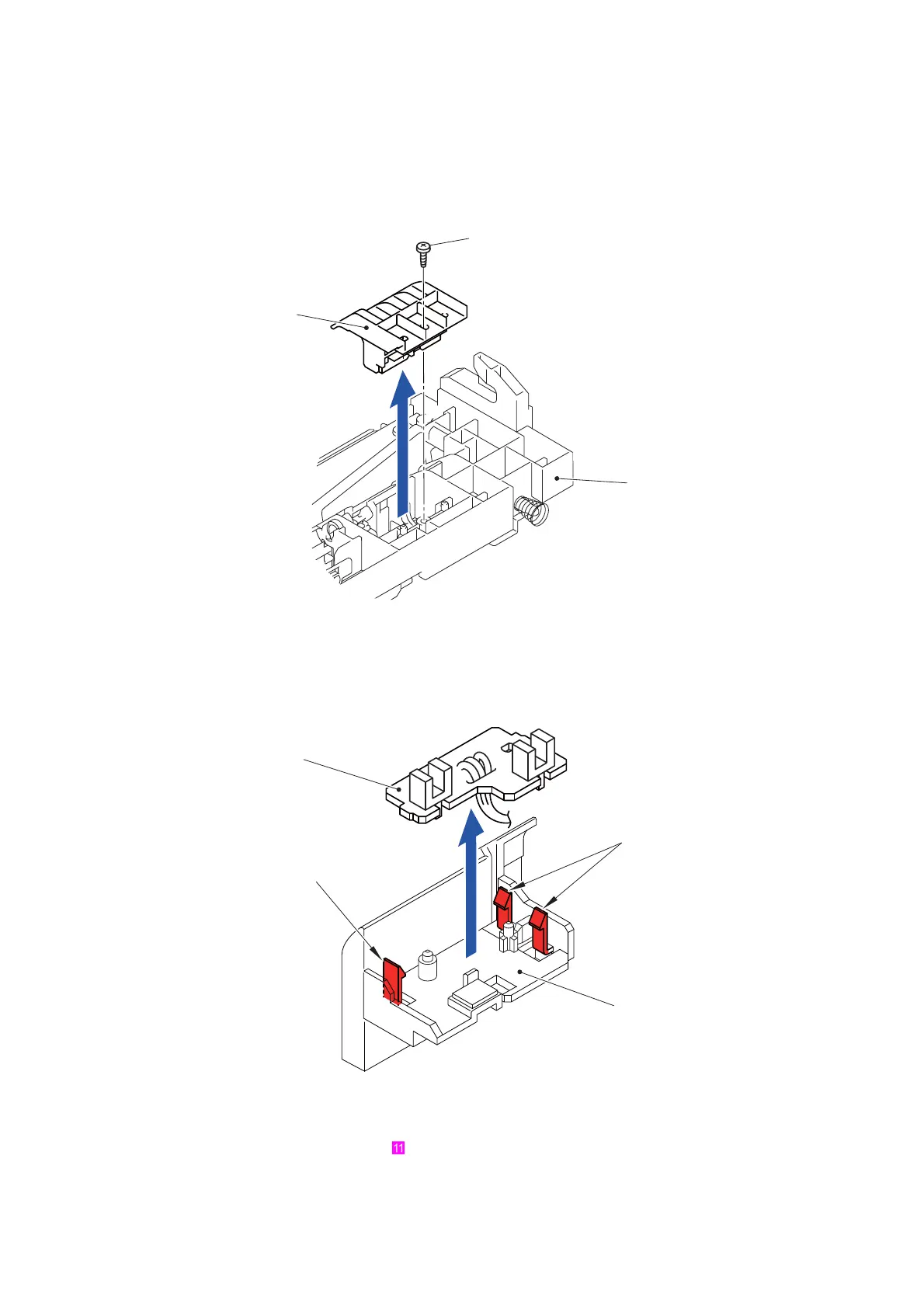

(1) Release the wiring of the Registration front/rear sensor PCB ASSY.
(2) Remove the Taptite bind B M3x10 screw and remove the Registration front/rear sensor
PCB holder from the Paper feed unit.
Fig. 3-257
(3) Release the three Hooks and remove the Registration front/rear sensor PCB ASSY from
the Registration front/rear sensor PCB holder.
Fig. 3-258
Harness routing: Refer to “ Paper Feed Unit”
Taptite bind B M3x10
Registration front/rear
Paper feed unit
sensor PCB holder
Registration front/rear sensor PCB ASSY
Registration front/rear sensor
Hook
Hook
PCB holder
