Brother MFC-L8850CDW Service Manual

3-29
Confidential
9.1 Lift Gear 46/Gear Z19M10

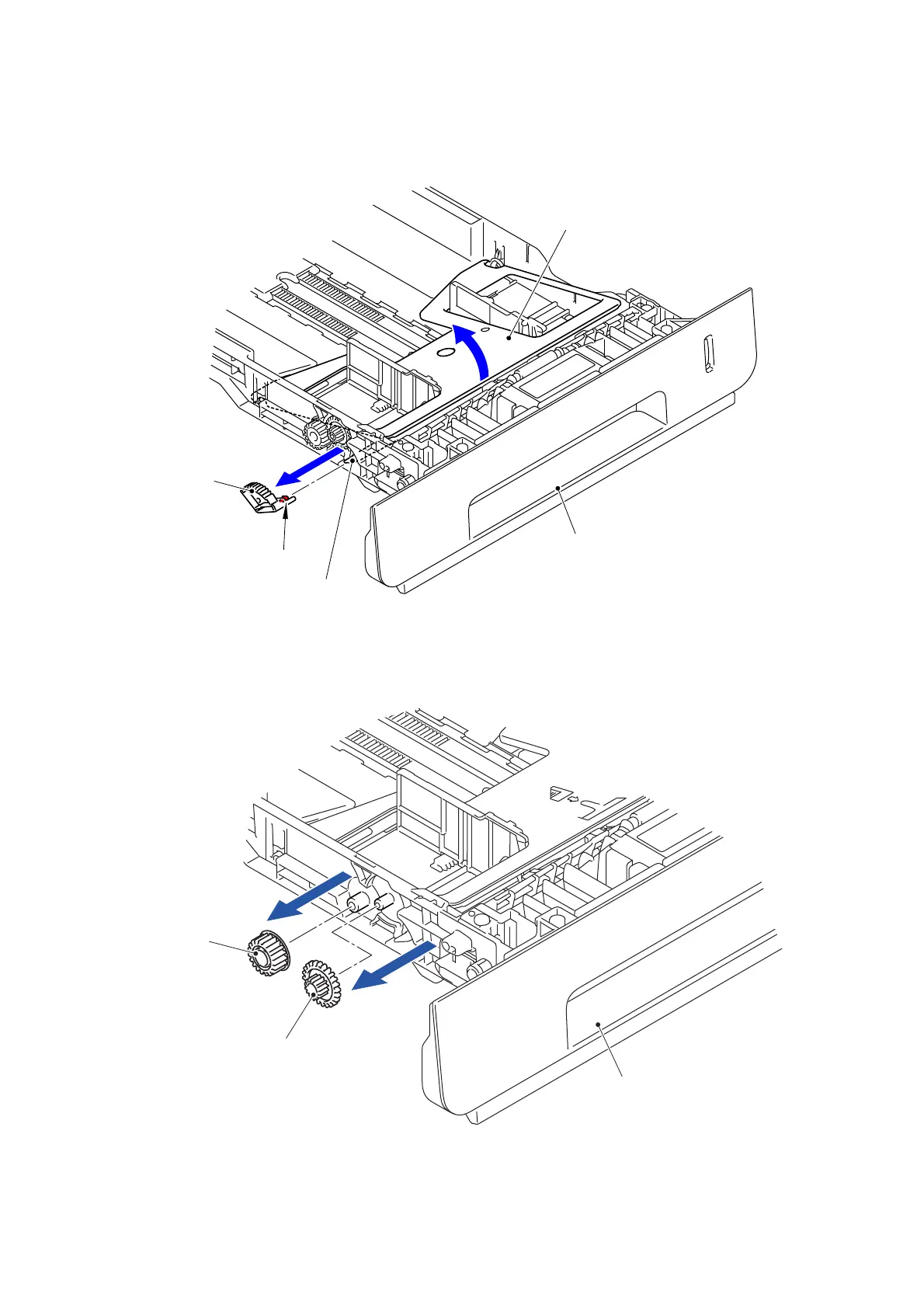

(1) Lift up the Plate. Release the Hook and remove the Lift gear 46 from the Plate up plate.
Fig. 3-1
(2) Remove the Gear Z24M10Z14M75 from the Paper tray 1.
(3) Remove the Gear Z19M10 from the Paper tray 1.
Fig. 3-2
Plate up plate
Hook
Lift gear 46
1a
1b
Plate
Paper tray 1
Gear Z24M10Z14M75
Paper tray 1
Gear Z19M10
2
3

Brother MFC-L8850CDW Specifications

General

Type	all in one
Color	white
Tray Capacity	300
Automatic Document Feeder Capacity	50 sheets
Paper Size	8.5"x14"
Paper Handling	up to 300 sheets
Color Print Speed	32 pages per minute
Mono Print Speed	32 pages per minute
Print Resolution Color	up to 2400 x 600
Maximum Number of Pages Per Month	unknown
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Copier Resolution Mono	up to 600 x 600
Copier Resolution Color	up to 600 x 600
Cartridges	tn331bk, tn331c, tn331m, tn331y
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb, google cloud print
OS Compatibility	windows, mac os, linux
Mobile Devices Connection	yes

Weight and Dimensions

Height	19.3 inches
Width	20.7 inches
Net Weight	67.4 pounds
